SEV MOTOROLA Alternators: Overhaul: Reassembly
- Alternator is assembled by reversing disassembly procedures. Rotor must be pressed into drive end shield. Connect test lamp between "B +" terminal and alternator frame, reverse connections.
- Lamp should light only in one direction. After completion of assembly, test run alternator on bench using same procedure as described for On Car Testing.

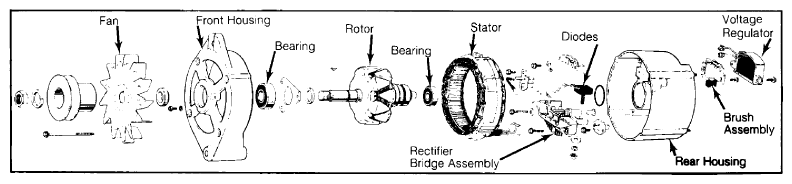

Volkswagen shown all other models similar.
