Repair and Diagnosis: Transmission: Clutch: Clutches: Description

Clutch is a single dry disc type with a diaphragm spring pressure plate. Actuation is mechanical through a cable. Sealed release bearing requires no lubrication.

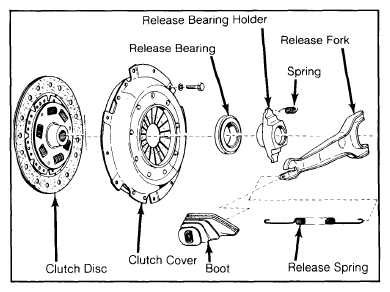

Fig 1: Exploded View of Subaru Clutch Assembly

Courtesy of SUBARU OF AMERICA, INC.
