Circuit Inspection

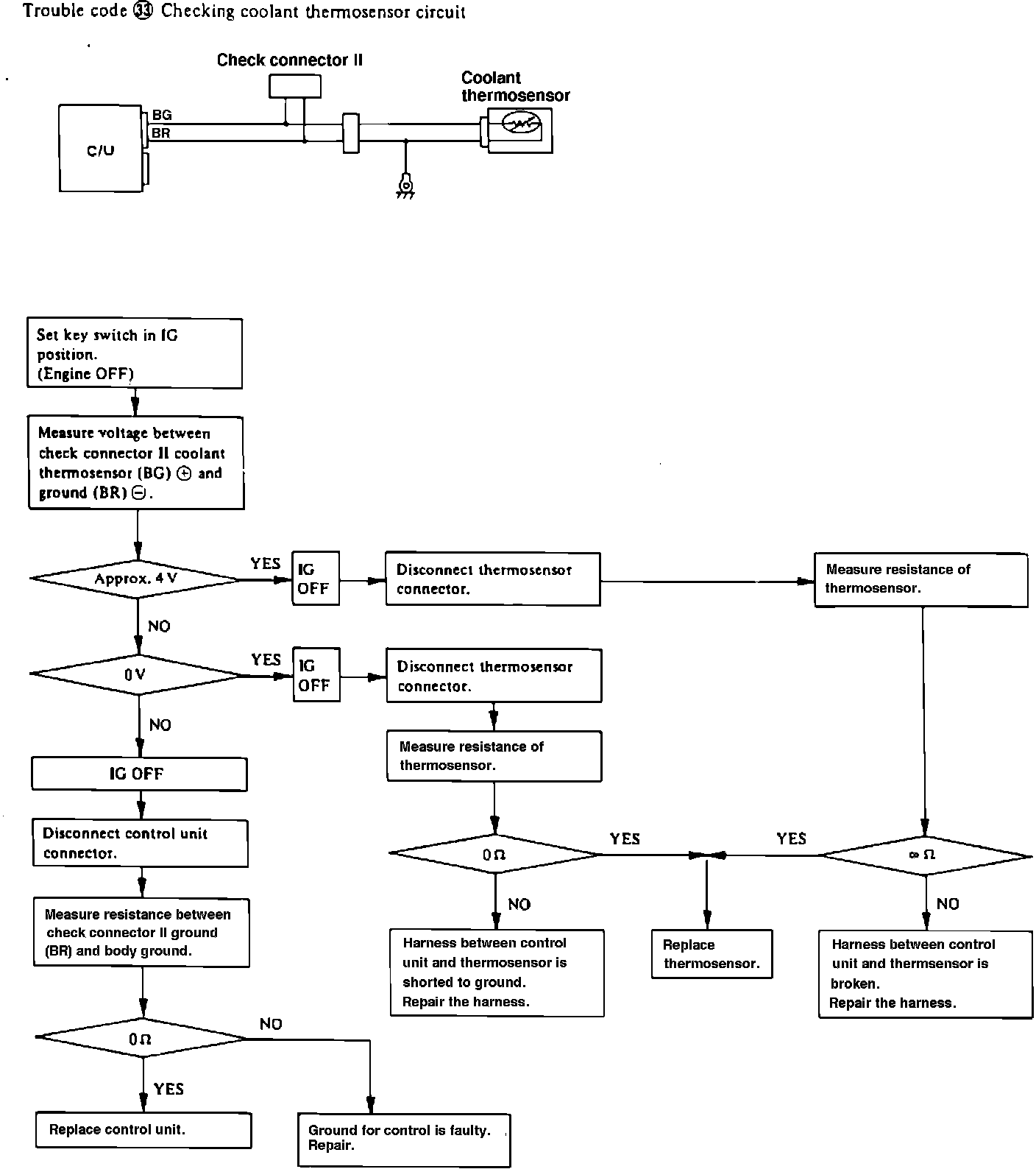

Fig.15 EGI system troubleshooting chart. Trouble code 33. Checking coolant thermosensor circuit.:
