2WD/FWD System

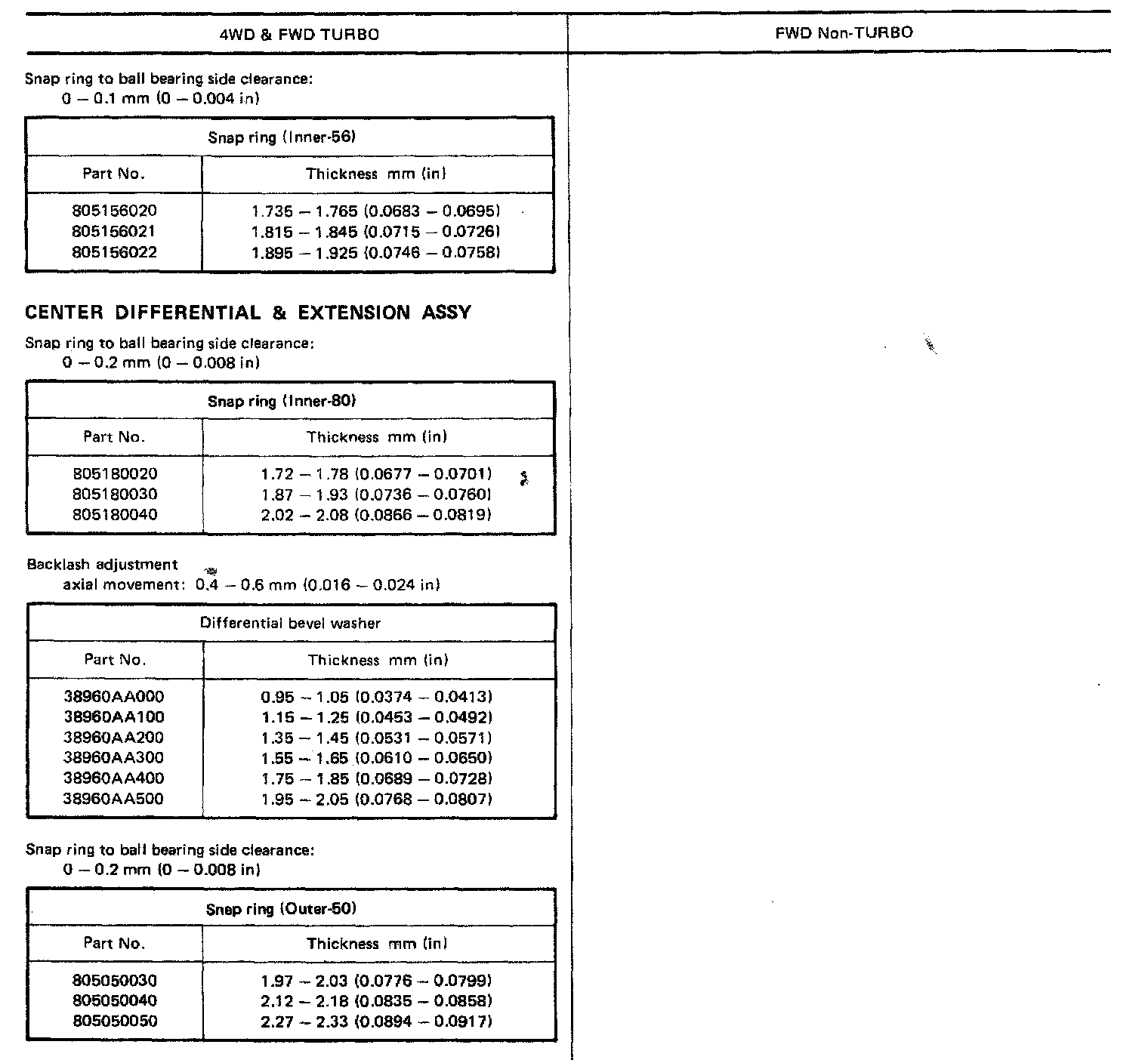

5-spd M/T, Transmission & Transfer Case Service Data:

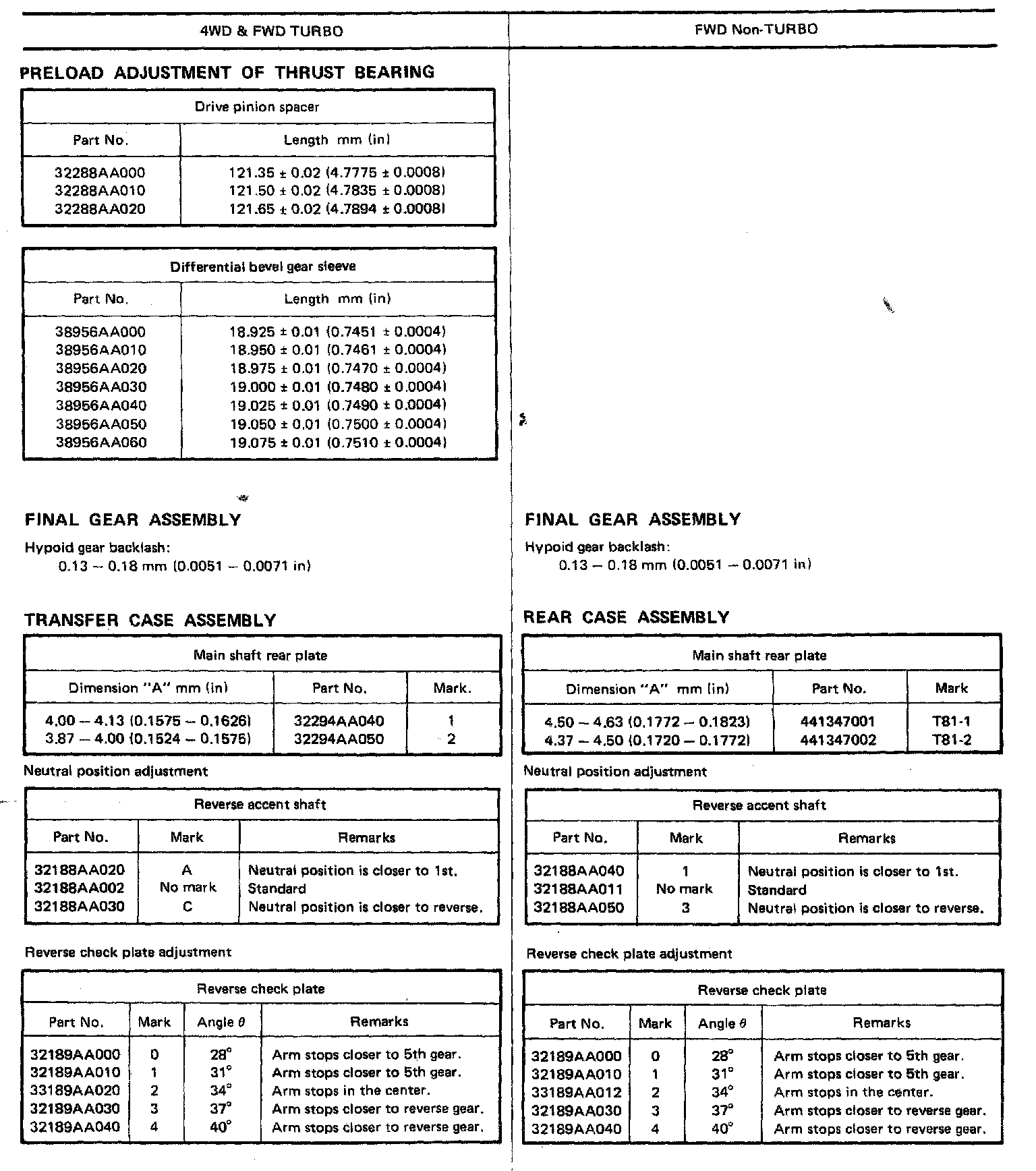

5-spd M/T, Transfer Case & Differential Service Data:
