Service Indicator & Warning Lights: Notes

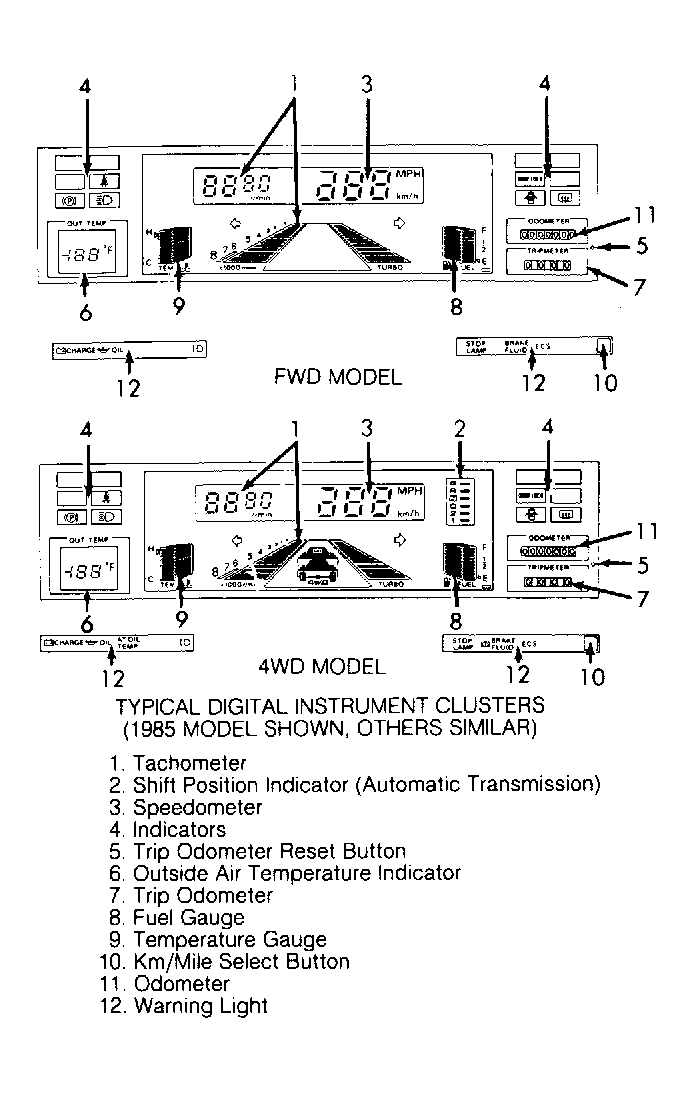

Fig 1: Dash Gauges & Warning Lights (Digital Type)
G90J02046Courtesy of SUBARU OF AMERICA, INC.

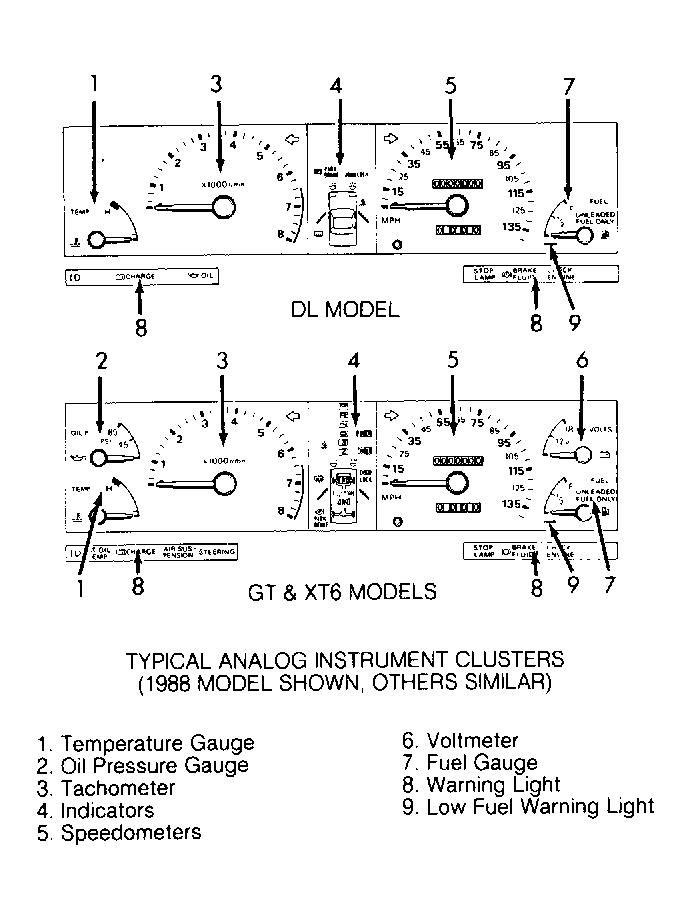

Fig 2: Dash Gauges & Warning Lights (Analog Type)
G90B02047Courtesy of SUBARU AMERICA, INC.
