Differential Technical Data

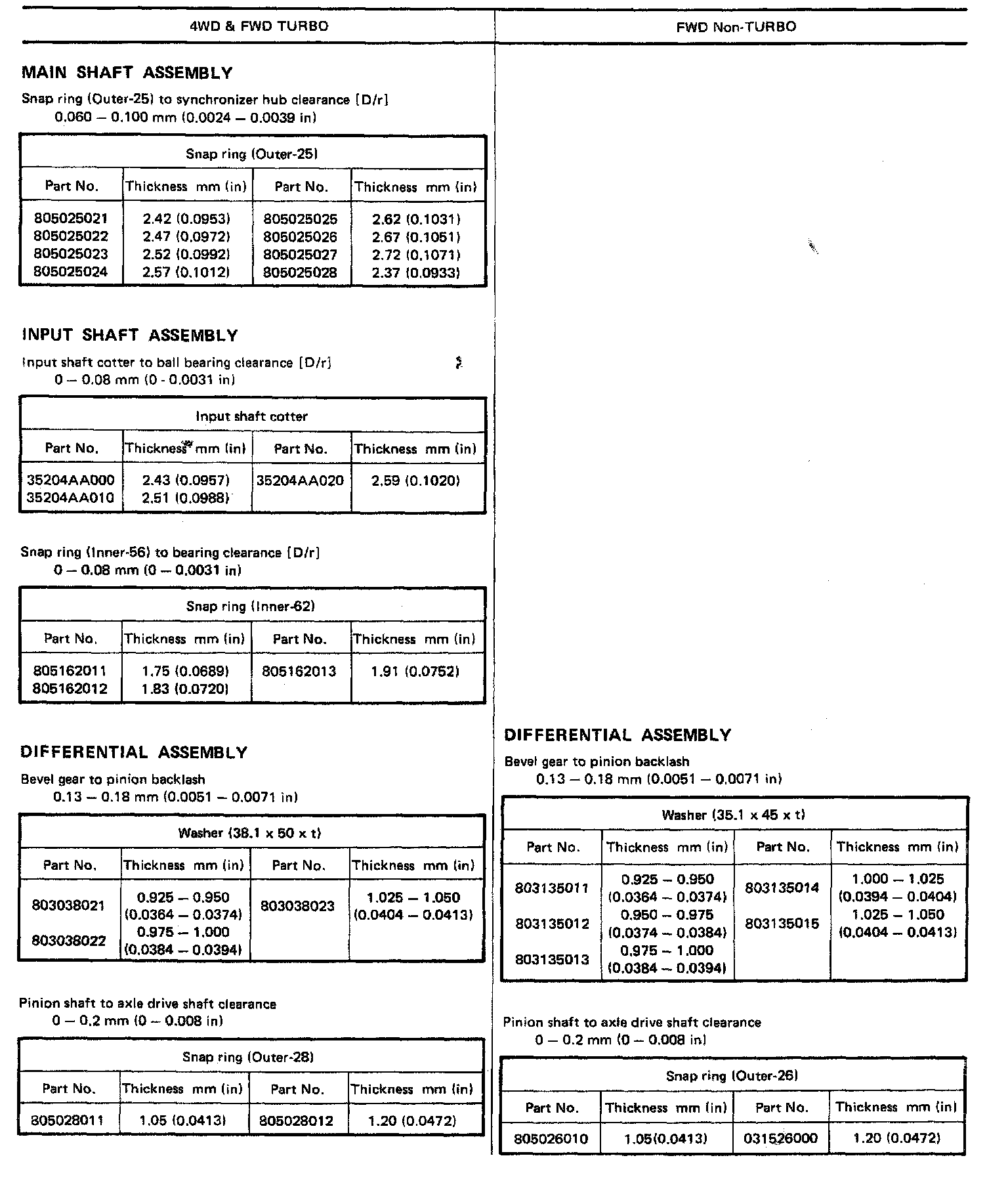

5-spd M/T, Main & Input Shaft Assembly And Differential:

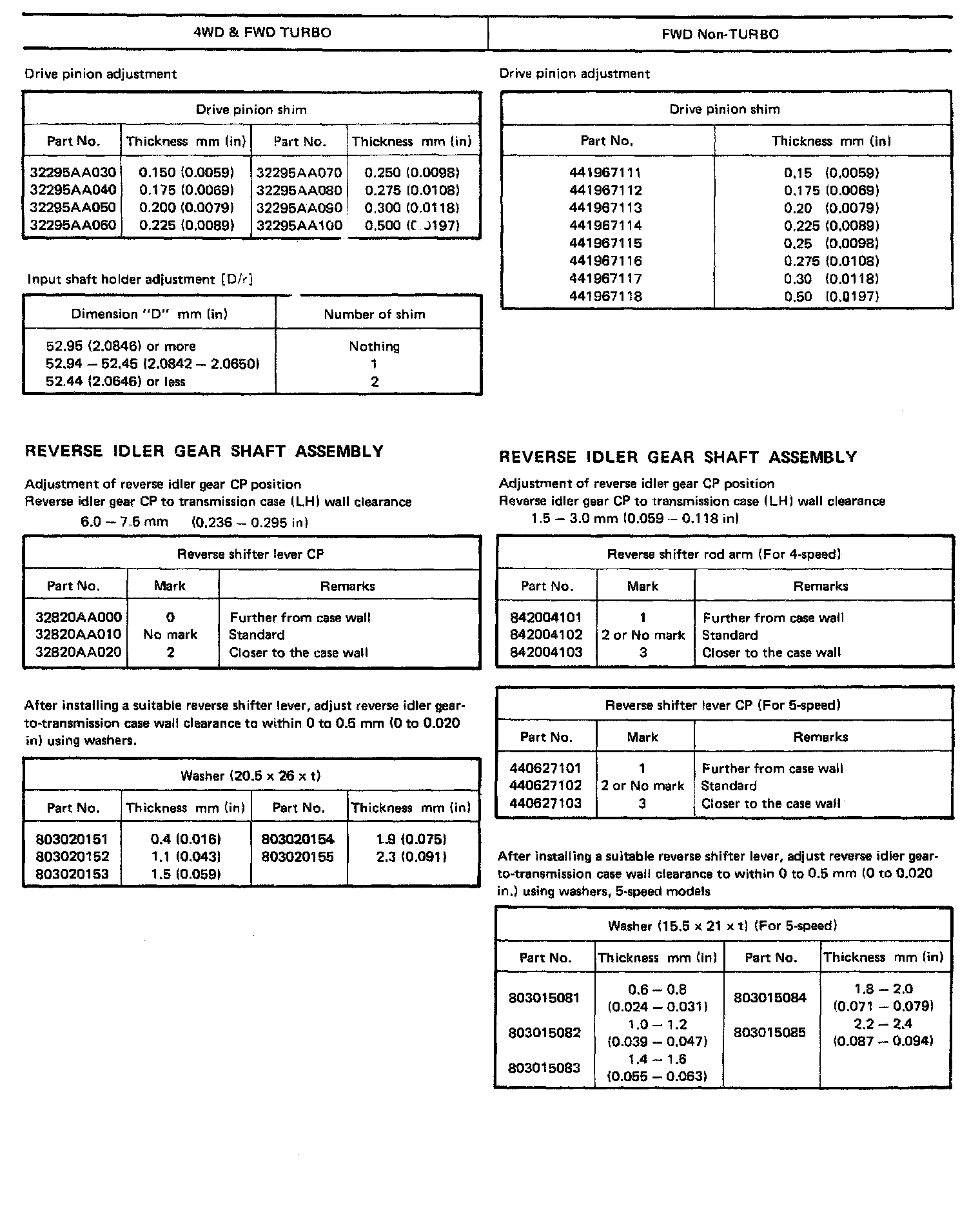

5-spd M/T, Transmission & Differential Service Data:





5-spd M/T, Transfer Case & Differential Service Data:
