M/T Technical Data

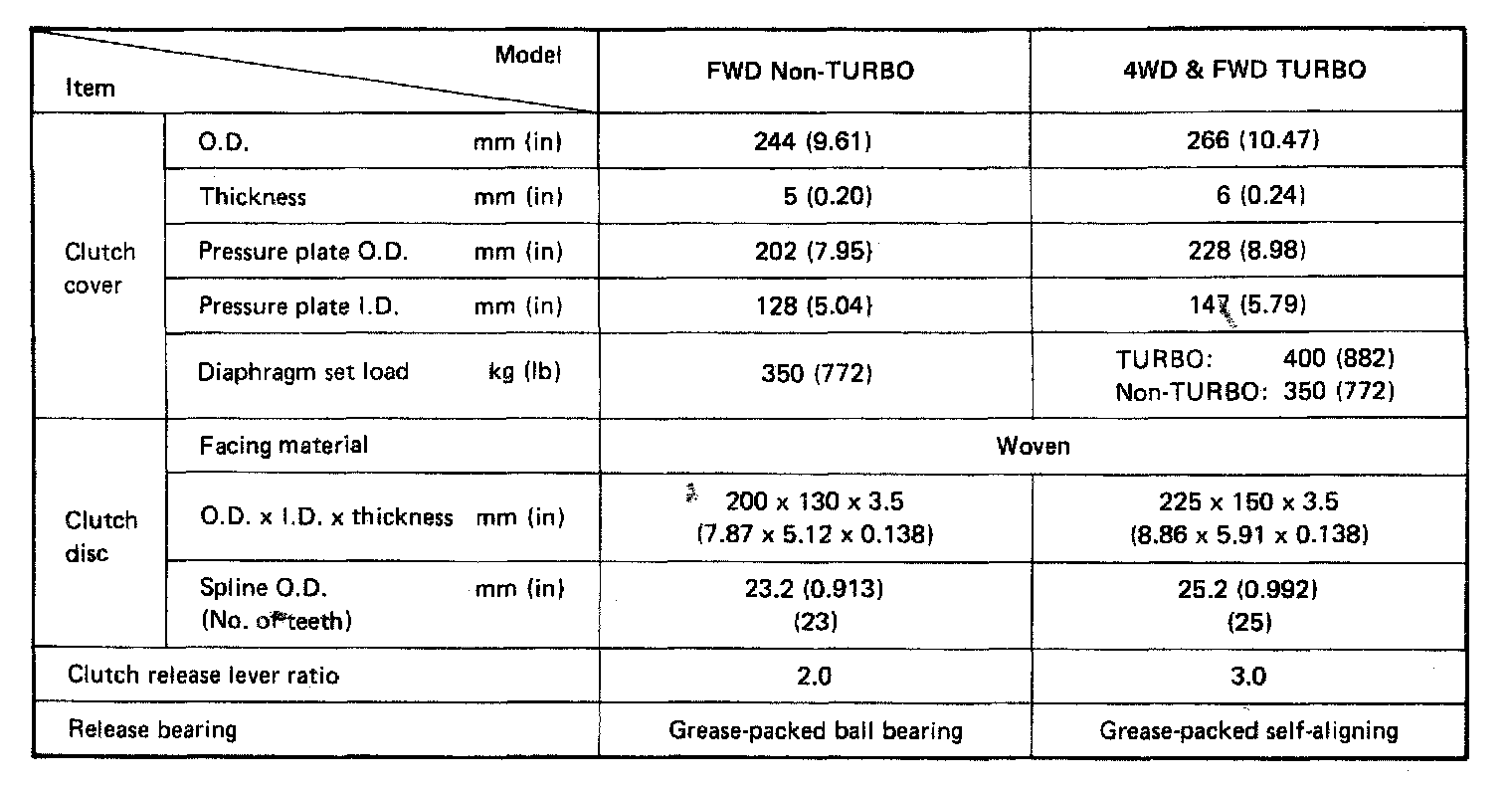

5-spd M/T, Clutch Service Data:





5-spd M/T, Clutch Service Data:

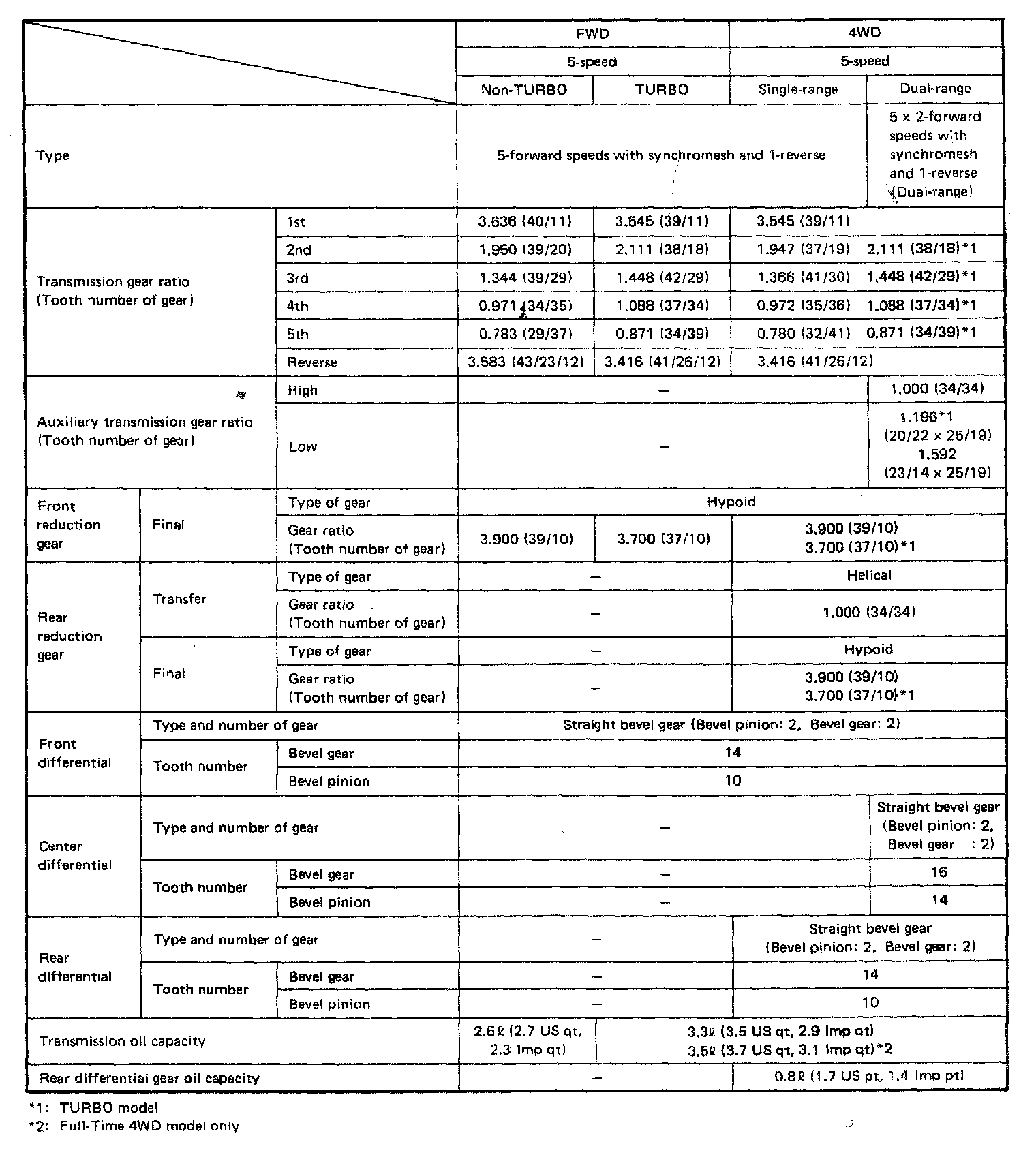

5-spd M/T, Transmission Service Data:





5-spd M/T, Main & Input Shaft Assembly And Differential:





5-spd M/T, Transmission & Differential Service Data:

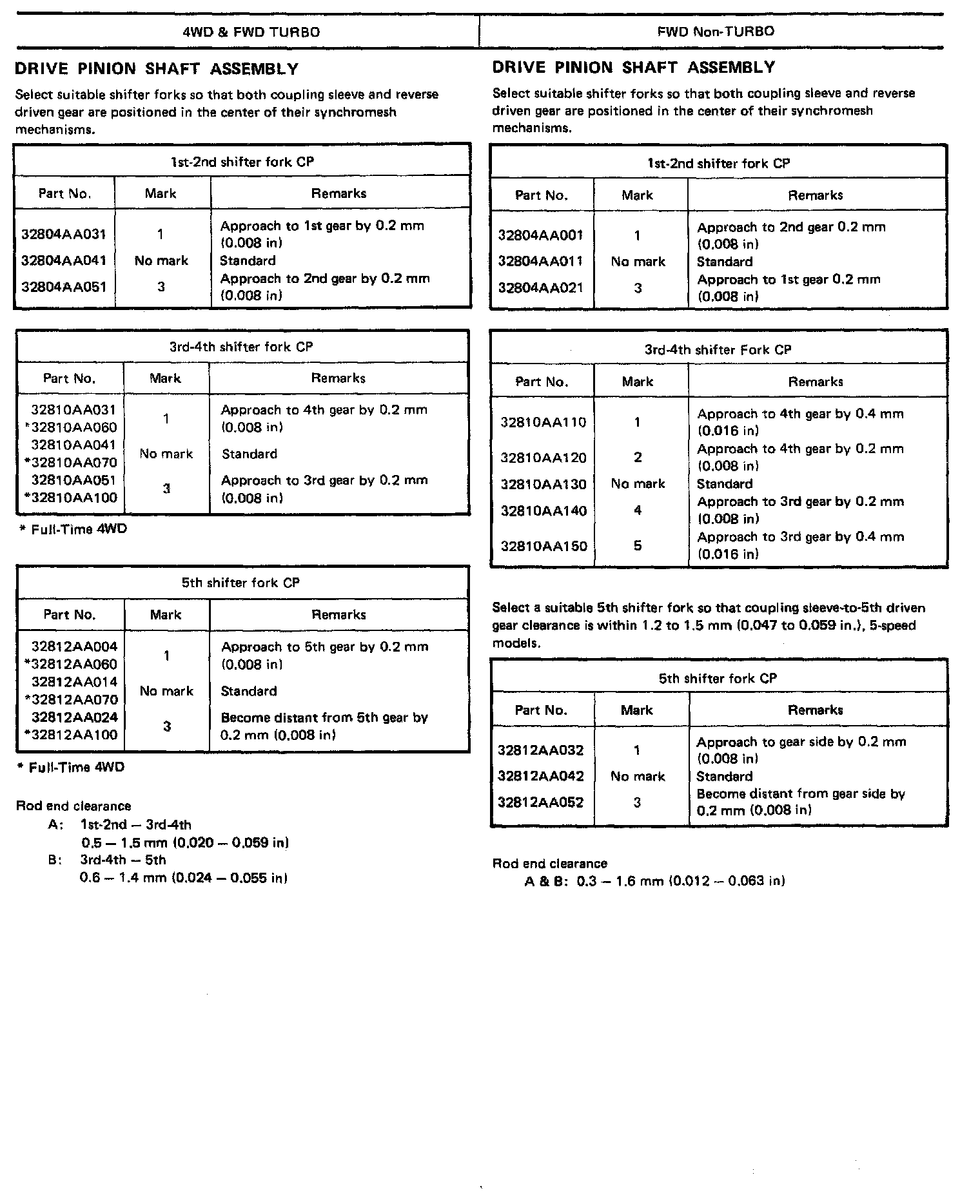

5-spd M/T, Drive Pinion Shaft Service Data:





5-spd M/T, Transmission & Transfer Case Service Data:





5-spd M/T, Transfer Case & Differential Service Data:
