WYNN'S Climate Control A/C Compressor Bracket Defect (15-38-87)

Publication date: 1987-03-27
Reference number: 15-38-87

WYNN'S CLIMATE CONTROL A/C COMPRESSOR BRACKET DEFECT

TECHNICAL SERVICE BULLETIN

Reference Number(s): 15-38-87, Date of Issue: March 27, 1987

A/C COMPRESSOR BRACKET MADE BY WYNN'S CLIMATE CONTROL (LONE STAR)

Model(s): 1984-87 Subaru Hatchback and Brat

Reference: Air Conditioning

Bulletin No.: 15-38-87

Date: March 27, 1987

SERVICE INFORMATION

The Subaru Hatchback and Brat Air Conditioning Kit, SOA203084, may contain an improperly machined compressor bracket (SOA203867).

The area involved is the machined rear surface of the main compressor mounting bracket leg (see Fig 1 ). Kits packaged on 8/01/86 through 11/30/86 and a package date of 1/30/87 are affected. The production date can be found on the end of the box next to the parts label.

If you have a bracket that is machined incorrectly, do not install it. Dealers are to submit a MSA438 claim for credit and obtain a correct bracket through normal parts channels.

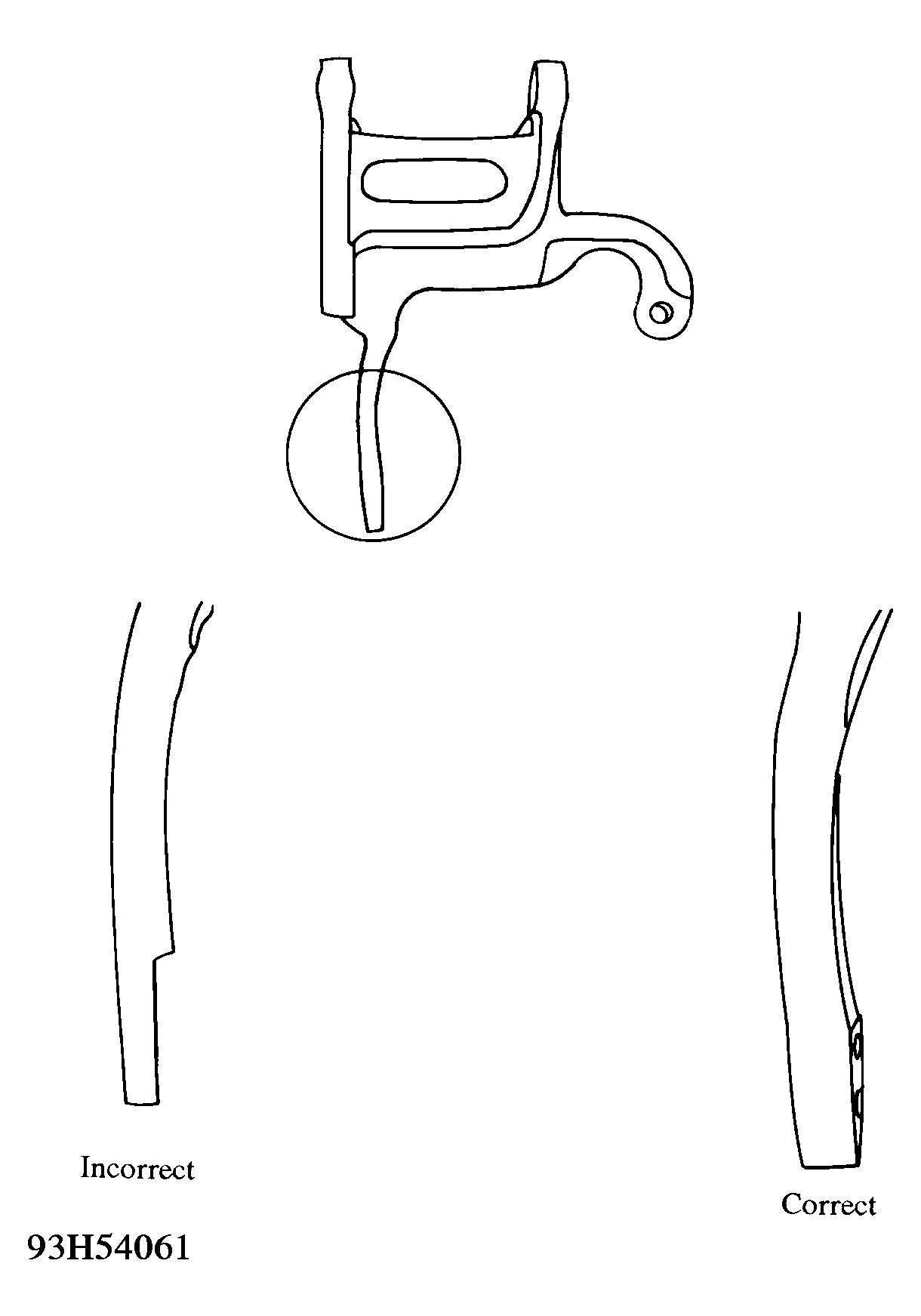

Fig 1: Identification of Main Compressor Mounting Bracket
