All Other Models

Actuator control cable sag can be adjusted by re-positioning the actuator mounting bracket. Adjust bracket with throttle pedal in returned position. SeeFig 1 .

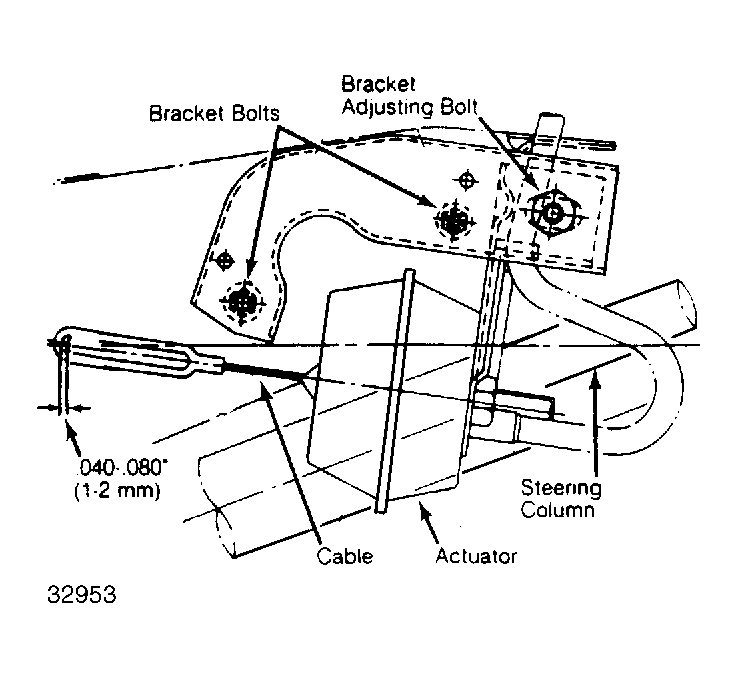

Fig 1: Adjusting Actuator Assembly

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Harness Plug to Control Unit

Courtesy of SUBARU OF AMERICA, INC.
