XT Model

Throttle position is controlled by 2 throttle cams and a accelerator cable. One cam is used when accelerating. The other cam is used when cruising. Both cams are used to open or close throttle valve. Both cams operate separately of each other.Engine throttle, accelerator pedal, and actuator, control both cams. SeeFig 1 .

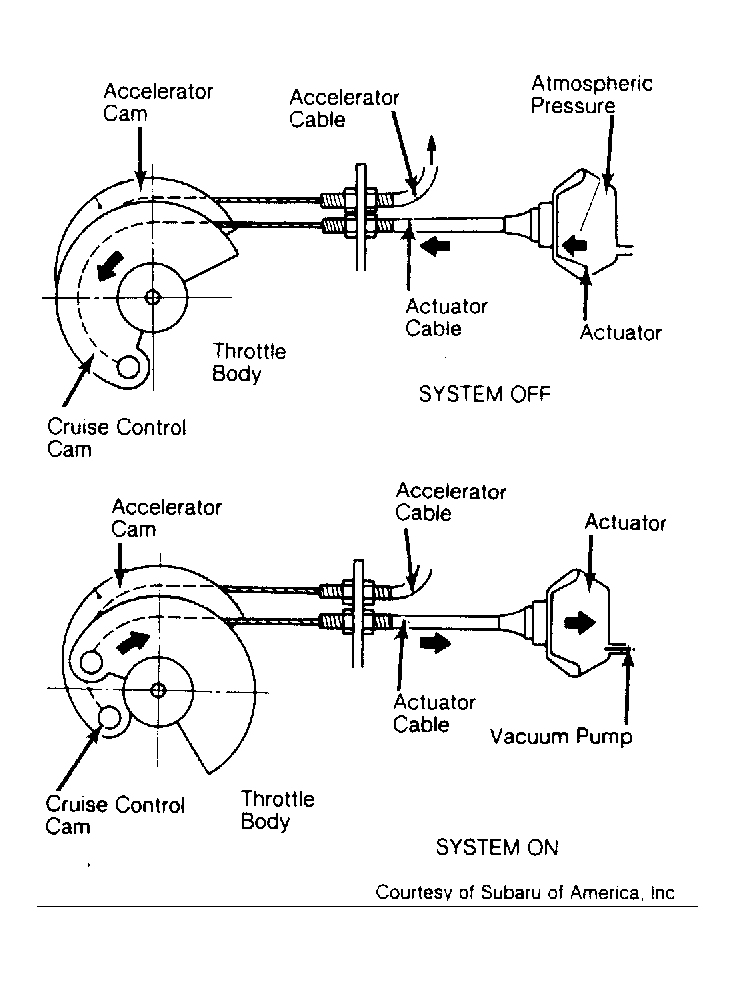

Fig 1: Throttle Link Assembly (XT Model)

Courtesy of SUBARU OF AMERICA, INC.
