Trouble Code 13, Crank Angle Sensor

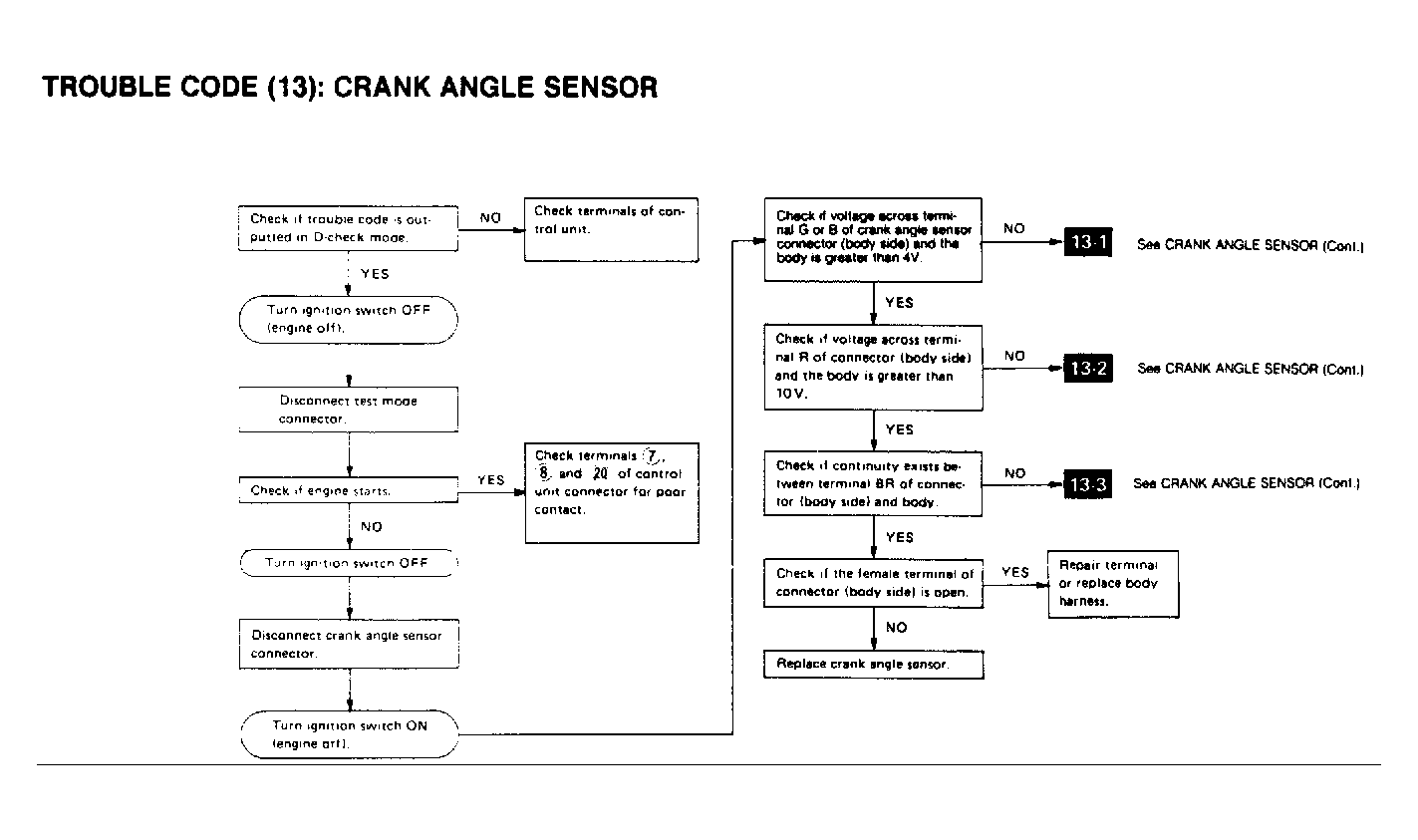

Fig 1: Trouble Code 13, Crank Angle Sensor (1 of 2)
G61868

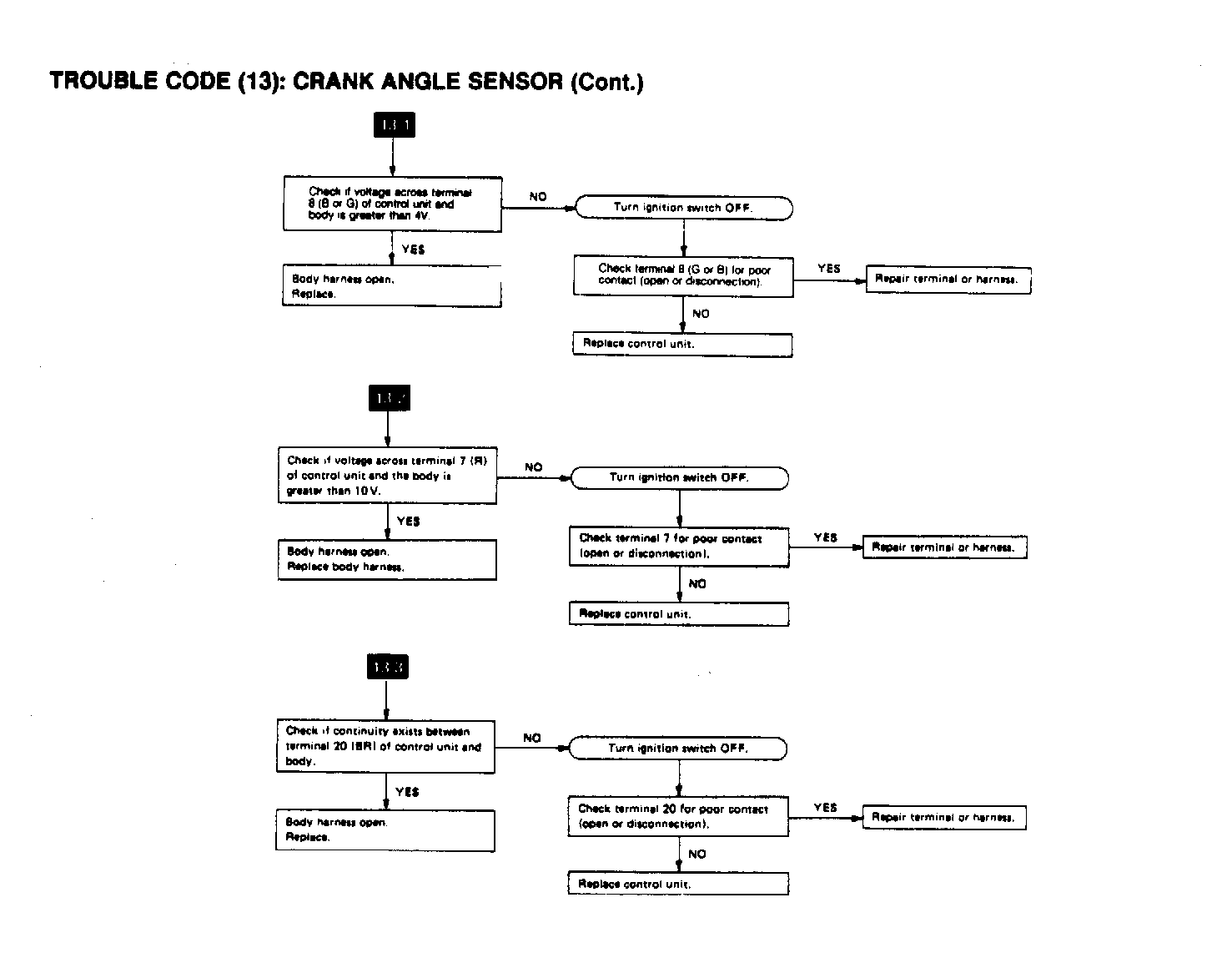

Fig 2: Trouble Code 13, Crank Angle Sensor (2 of 2)
G61871
