Differential Torque Data

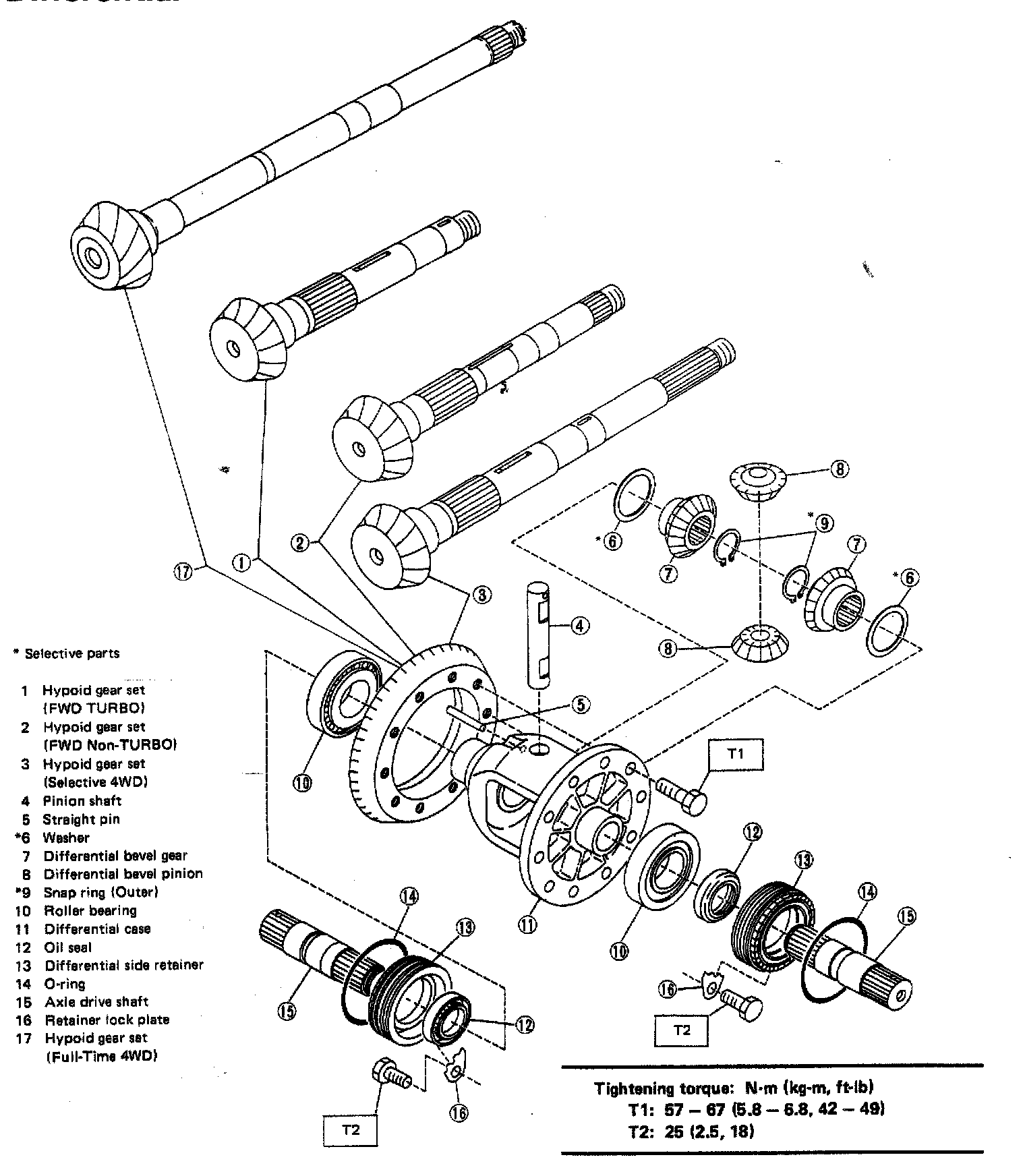

5-spd M/T, Differential:

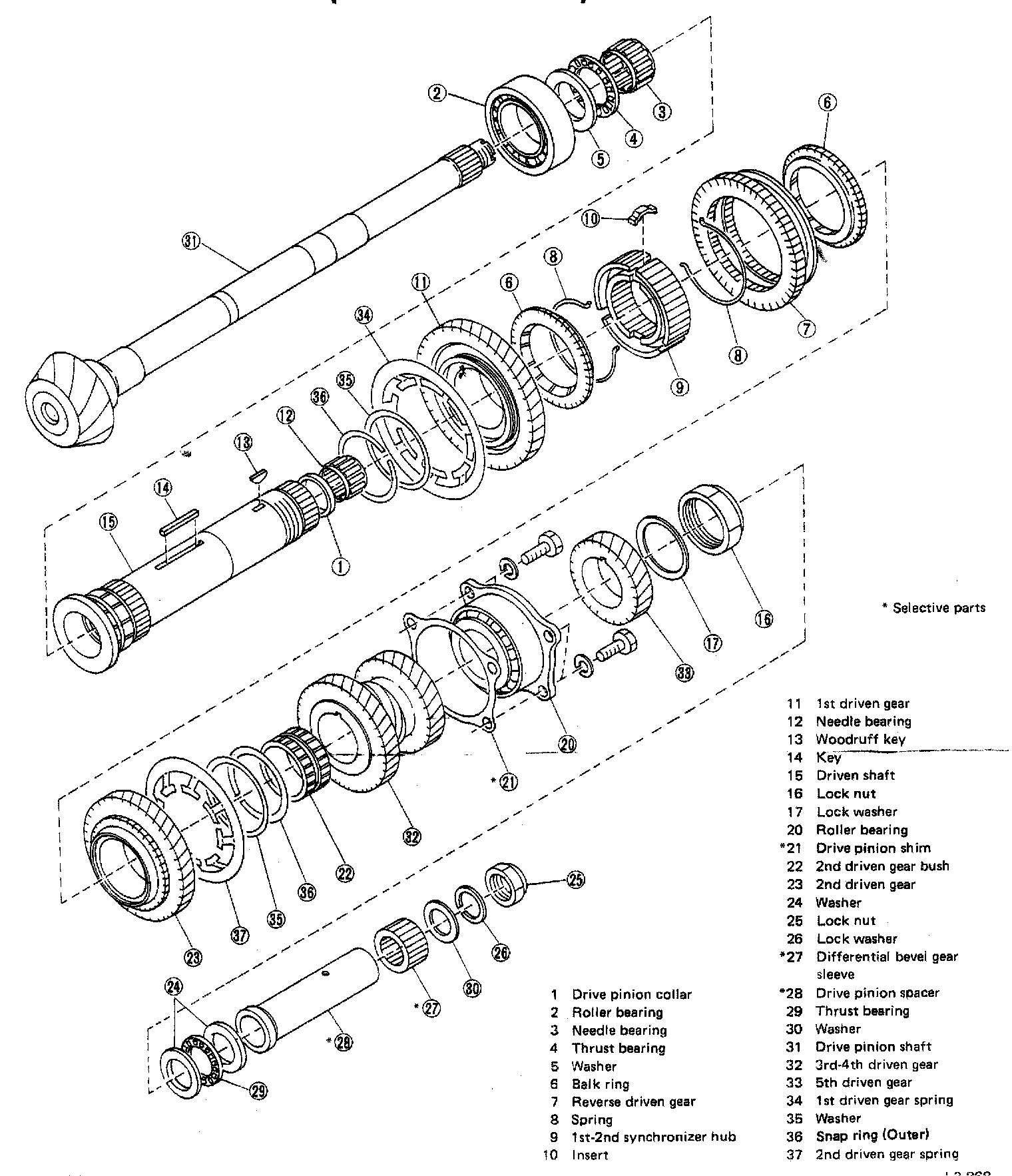

5-spd M/T, Drive Pinion Shaft (Full-Time 4WD):

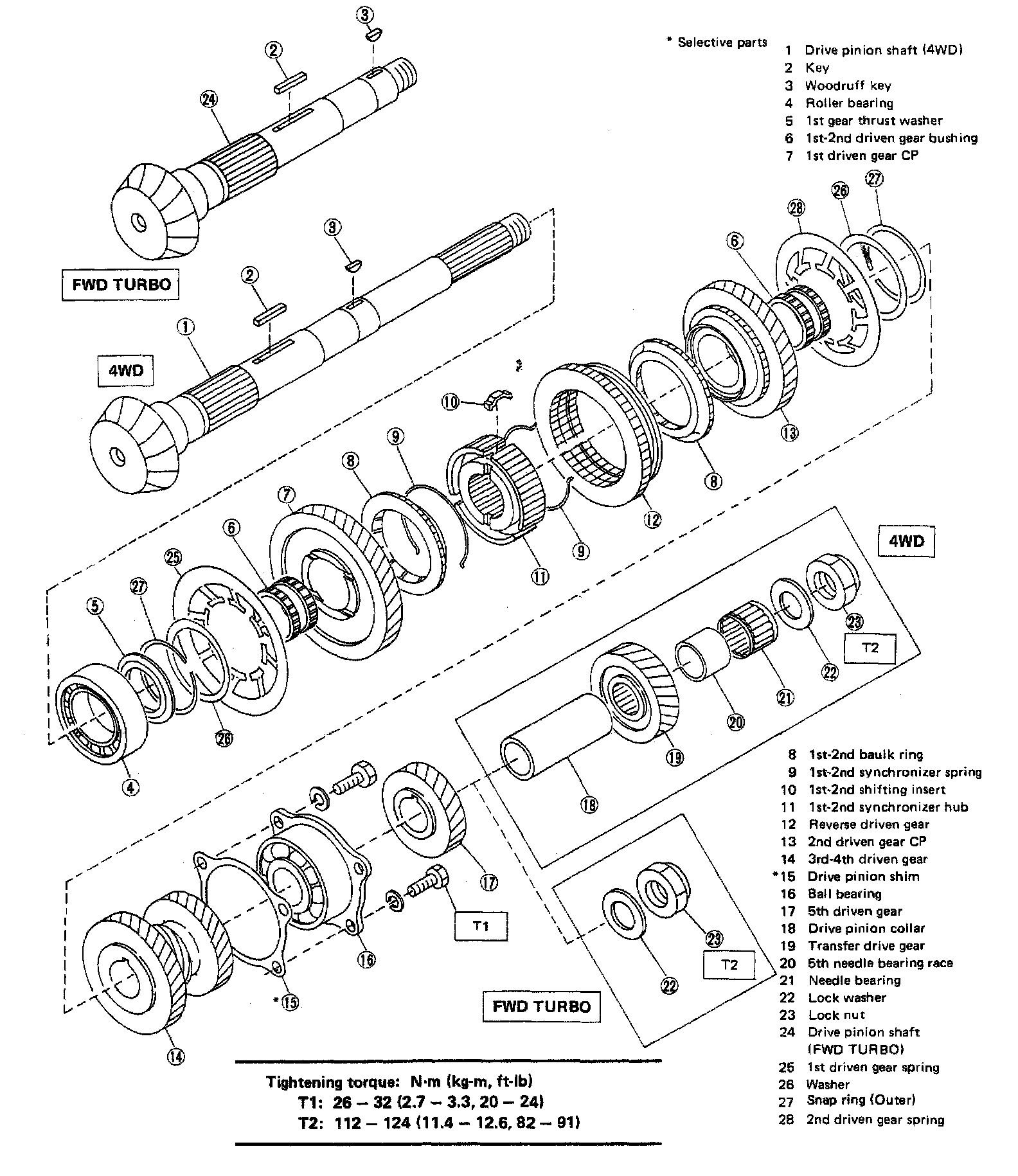

5-spd M/T, Drive Pinion Shaft (Selective 4WD & FWD TURBO):
