Code 14

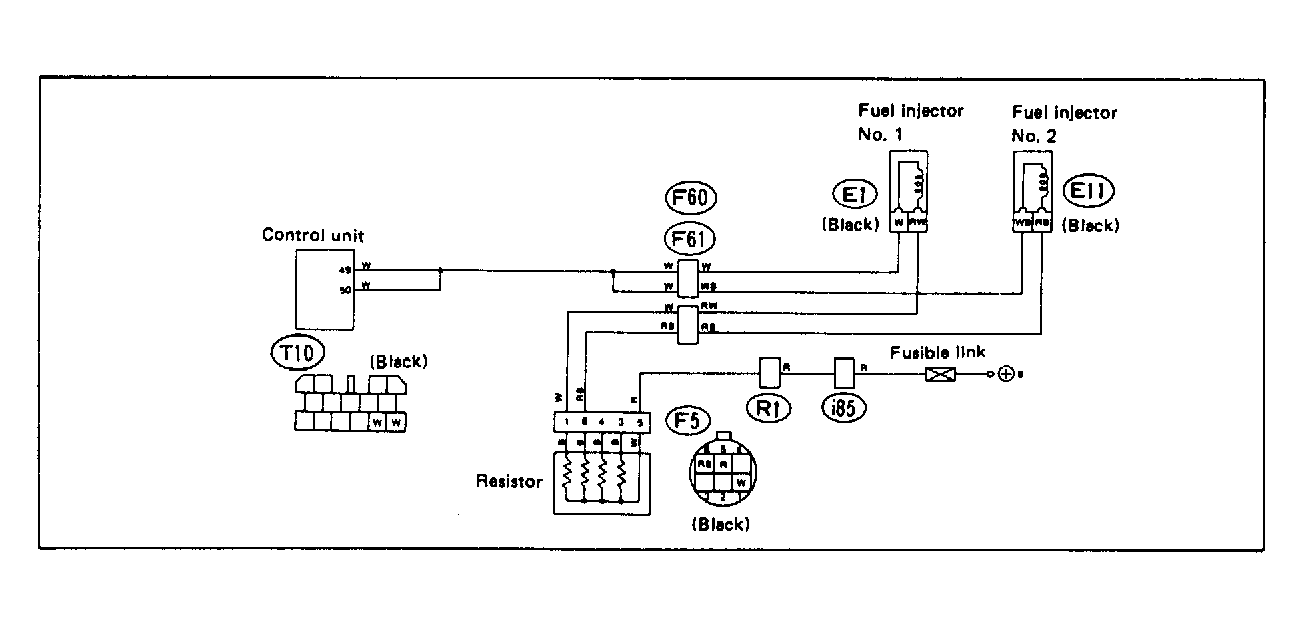

Fig 1: Trouble Code 14: Fuel Injector 1.8L Motor - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

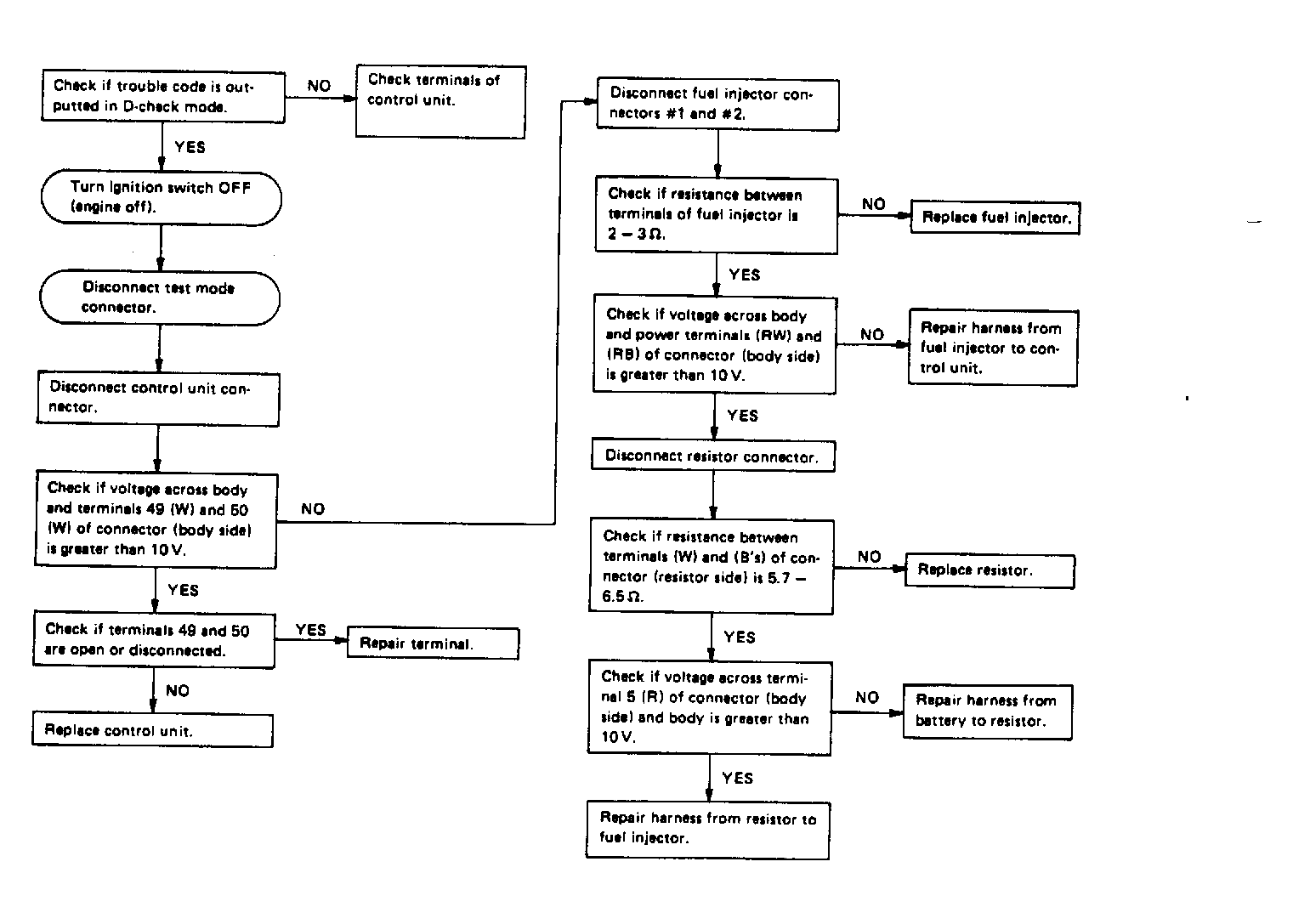

Fig 2: Trouble Code 14: Fuel Injector 1.8L Motor - Flow Chart
Courtesy of SUBARU OF AMERICA, INC.

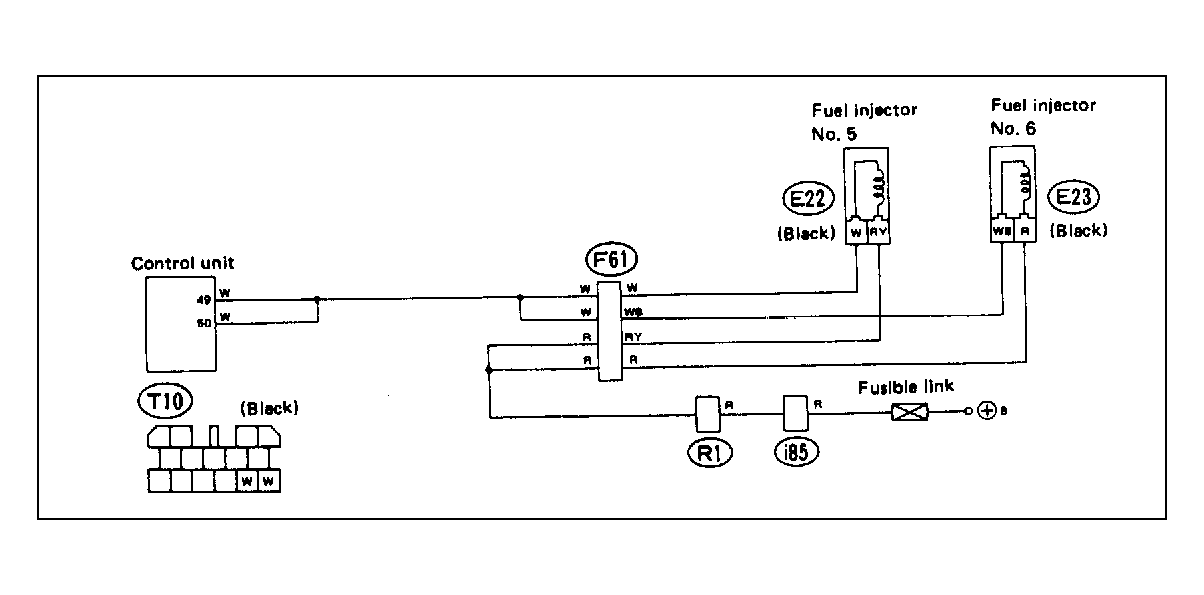

Fig 3: Trouble Code 14: Fuel Injector 2.7L Motor - Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.

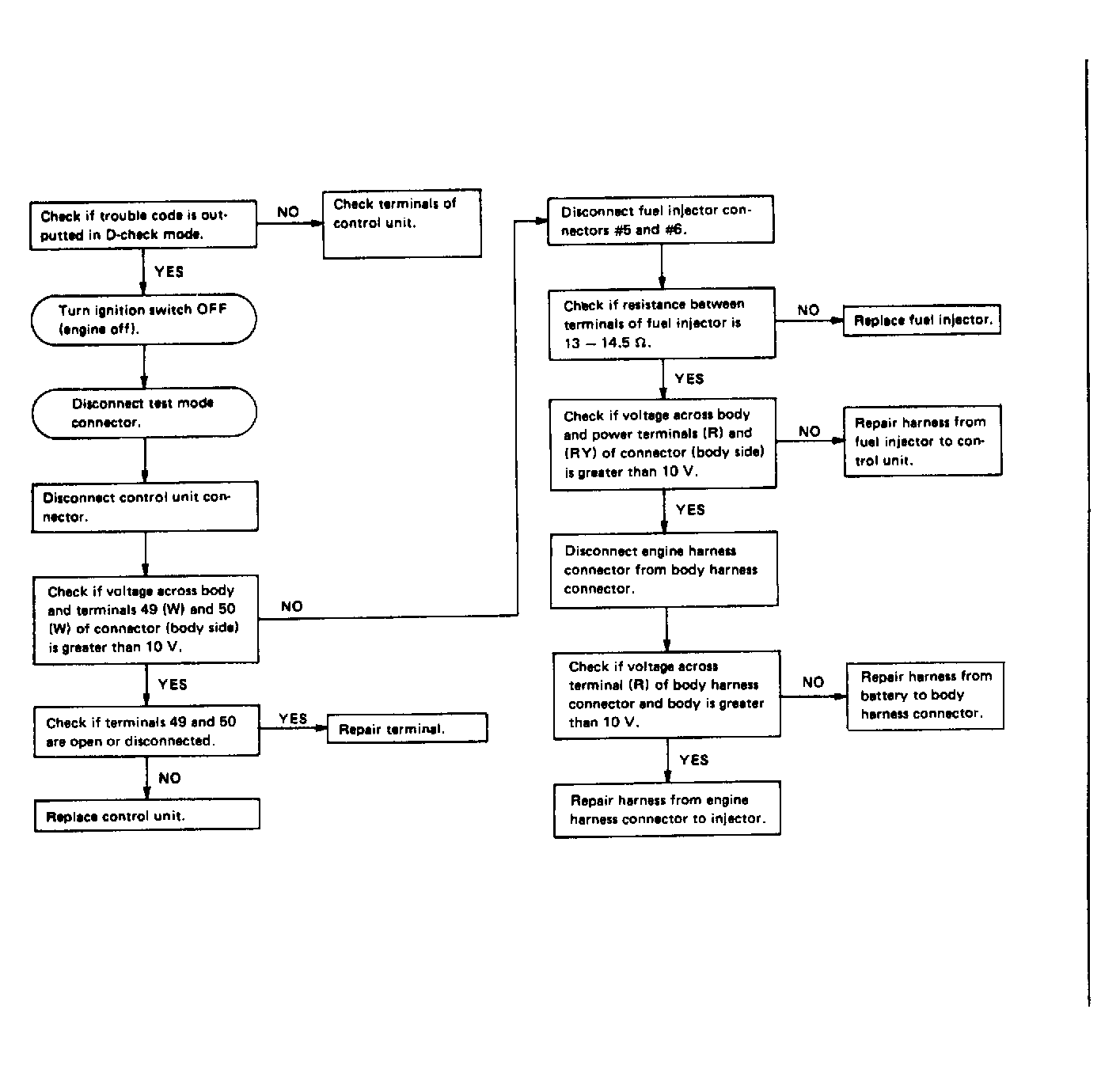

Fig 4: Trouble Code 14: Fuel Injector 2.7L Motor - Flow Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
