Code Charts: Notes

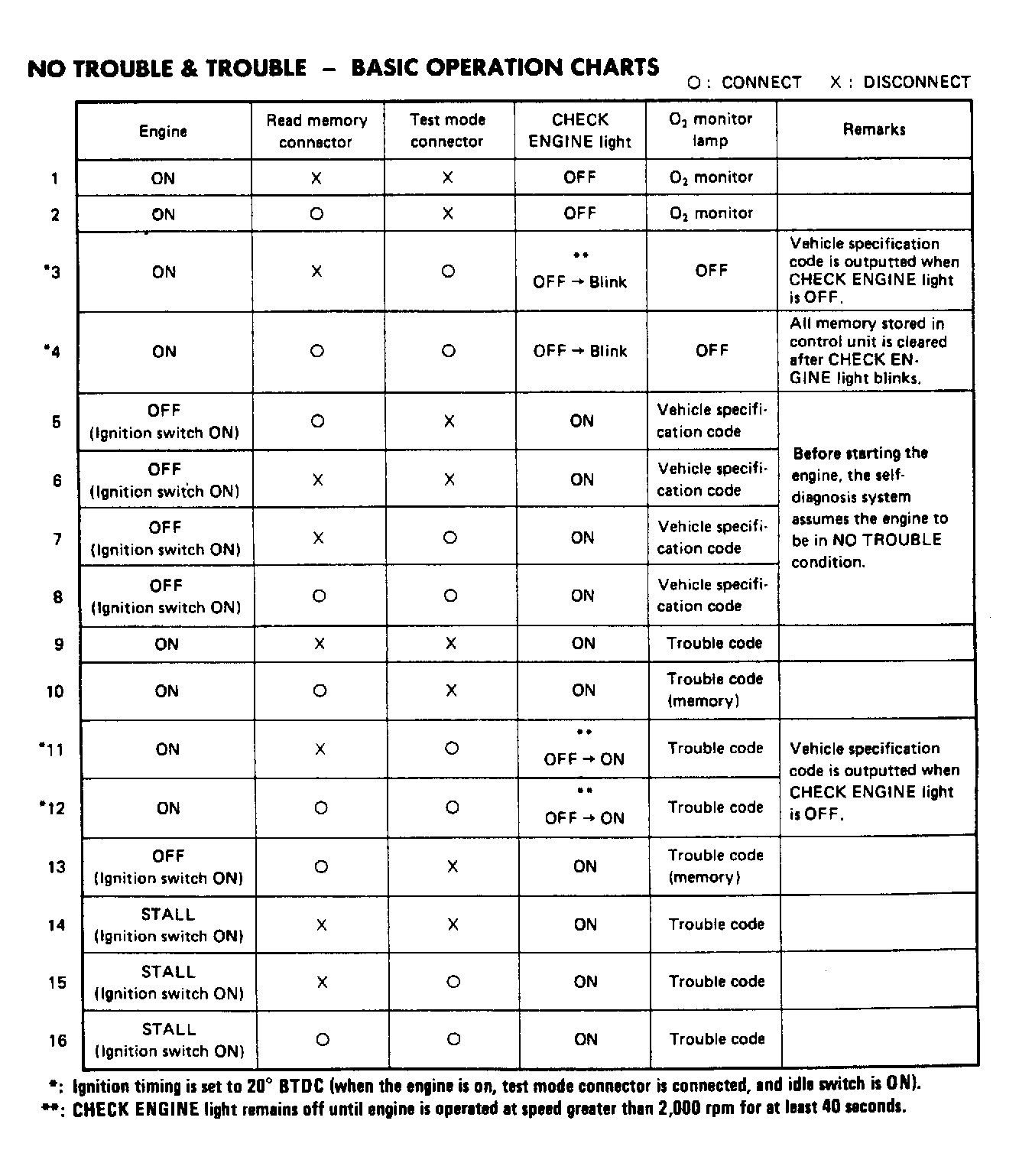

Fig 1: No Trouble & Trouble - Basic Operation Charts

Courtesy of SUBARU OF AMERICA, INC.

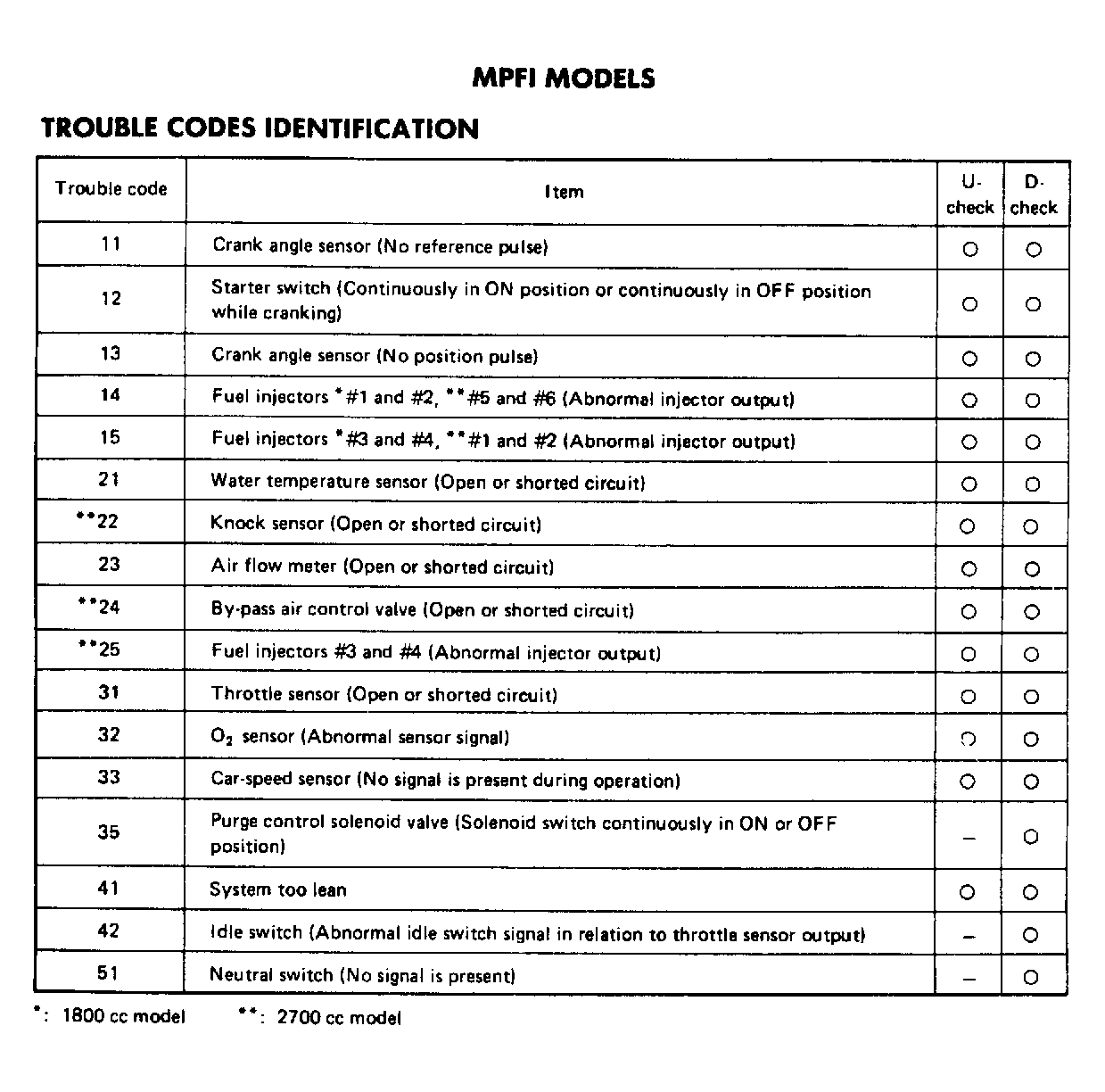

Fig 2: Trouble Codes Identification

Courtesy of SUBARU OF AMERICA, INC.

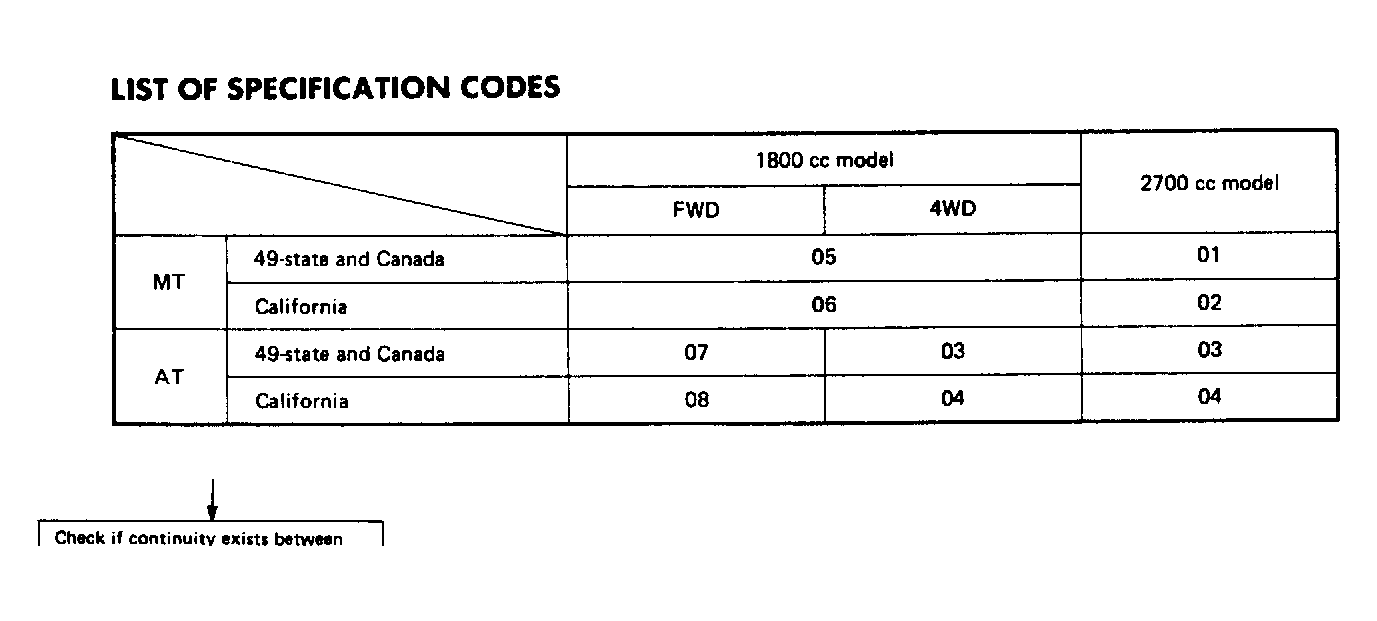

Fig 3: List of Specification Codes

Courtesy of SUBARU OF AMERICA, INC.

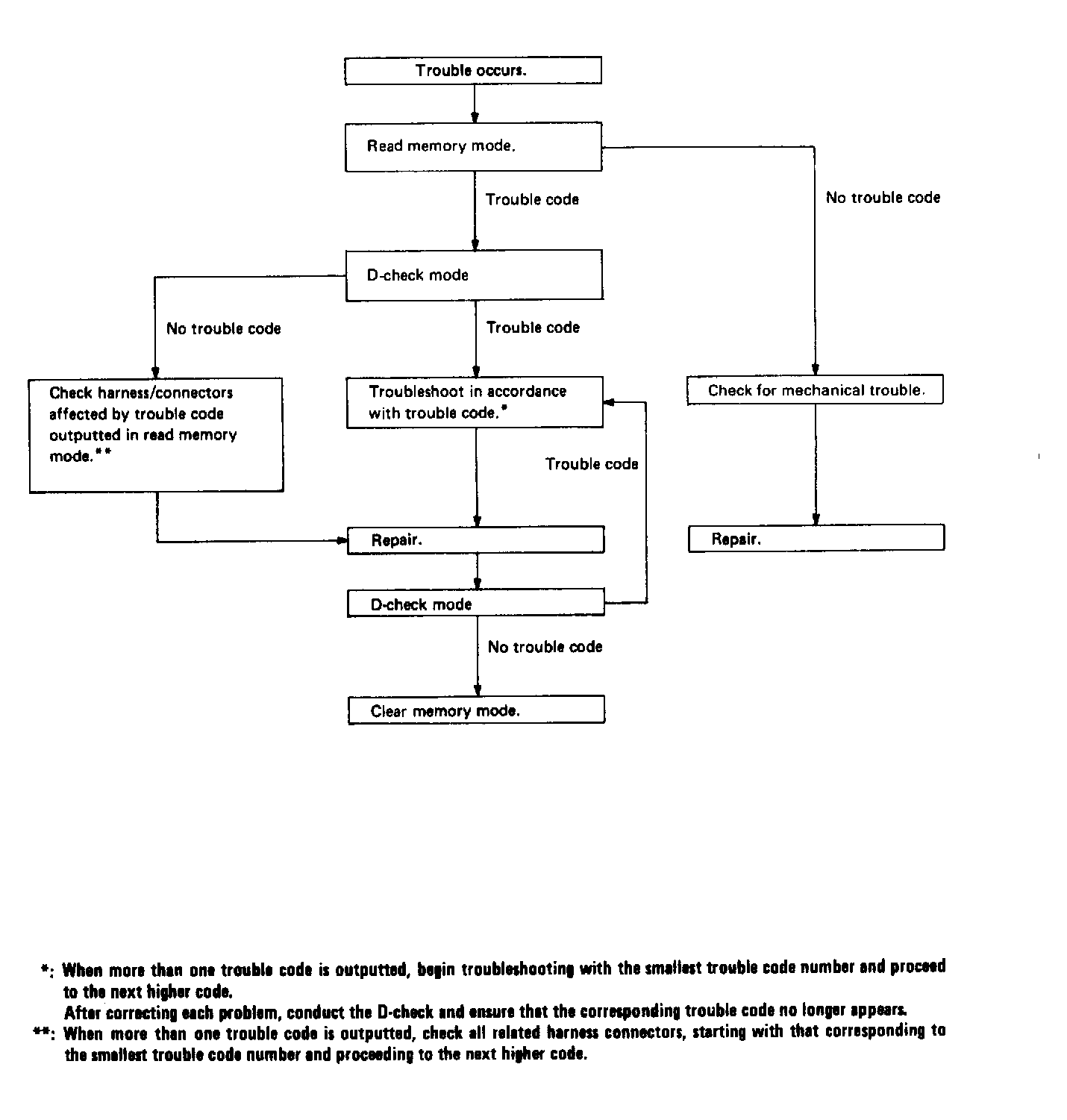

Fig 4: Basic Troubleshooting Procedures

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Read Memory Mode (1 of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Read Memory Mode (2 of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Read Memory Mode (3 of 3)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: D-Check Mode

Courtesy of SUBARU OF AMERICA, INC.

Fig 9: Clear Memory Mode

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Trouble Codes & Symptoms Due to Poor Contact of Control Unit Connector Terminal

Courtesy of SUBARU OF AMERICA, INC.
