Engine Controls - Remove/Install/Overhaul: Installation

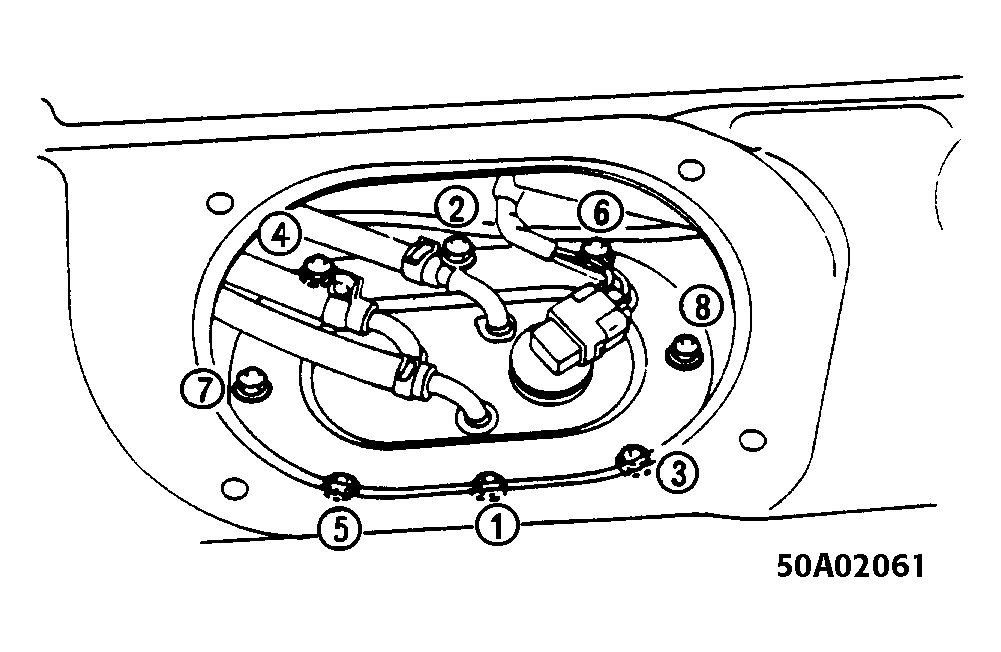

Installation is in the reverse order of removal procedures. Keep in mind to discard the old gasket after removal and replace it with new one. Ensure sealing portion is free from fuel or foreign particles before installation. (Wipe unit mounting holes, packing, etc. with a cloth.) Tighten nuts in numerical sequence shown in Fig 1 to a specified torque of 2.2-4.3 ft.lbs. (3-6 N.m). Install O-Ring, then access hole lid.
