Coolant Temperature Sensor/Switch (For Computer): Service and Repair

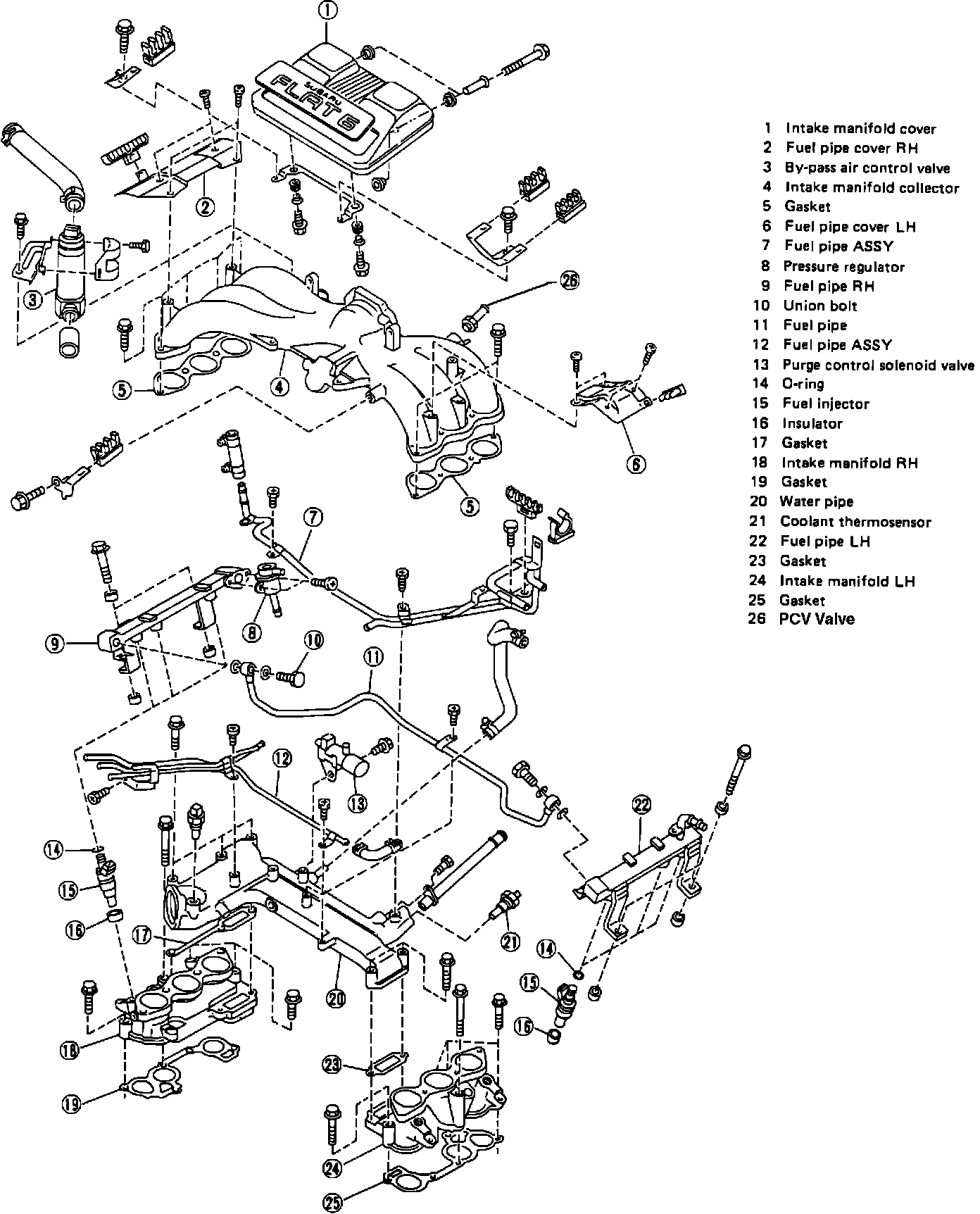

Intake Manifold:

1. Allow engine to cool.
2. Remove air intake duct.
3. Disconnect engine coolant temperature sensor connector.
4. Remove sensor.
5. Install in reverse order.
SENSOR TIGHTENING TORQUE VALUE:
16 - 20 ft.lbs. (22 - 27 Nm)
