Service Specifications


SPECIFICATIONS AND SERVICE DATA

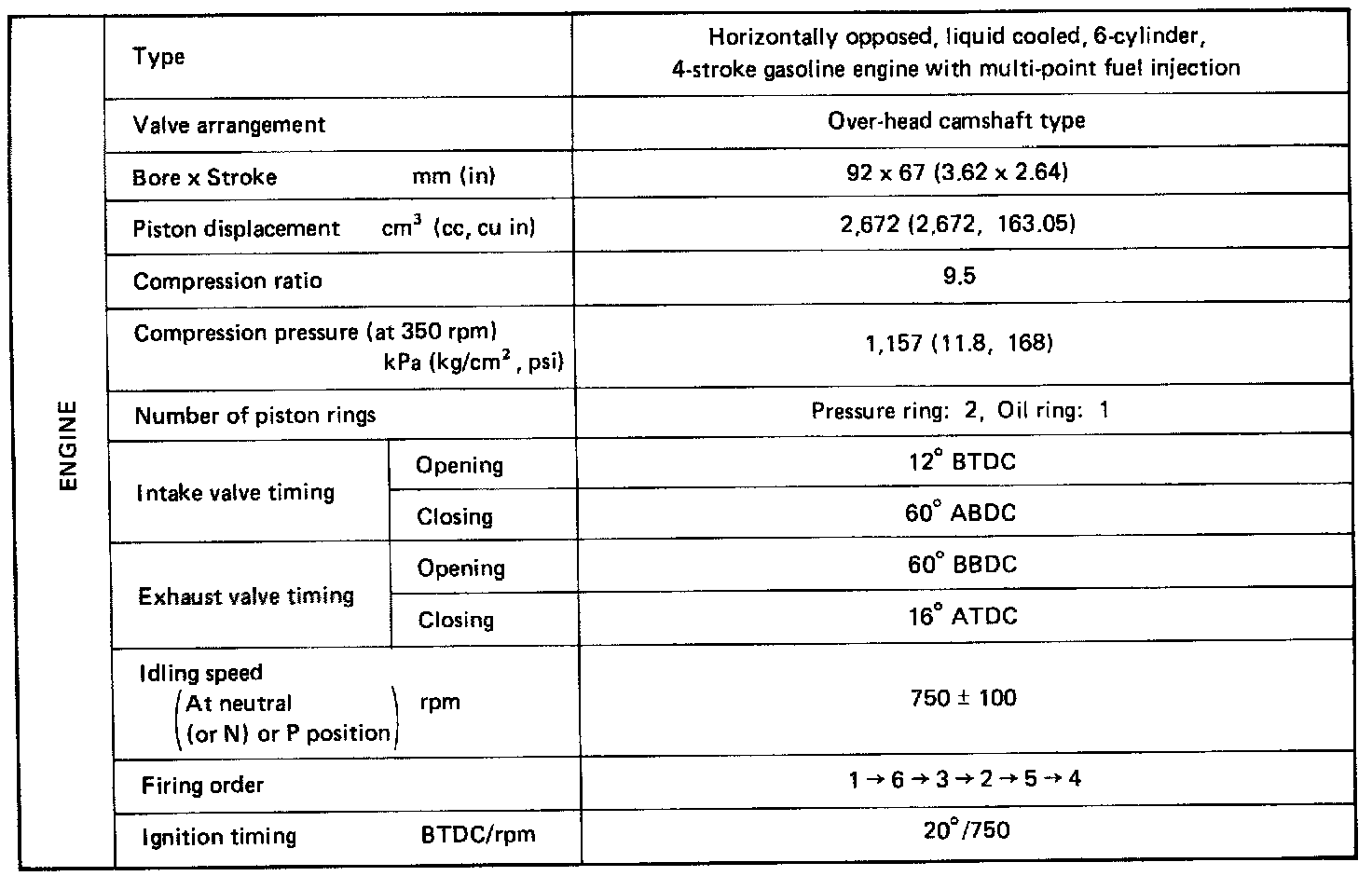

Engine Specifications

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:

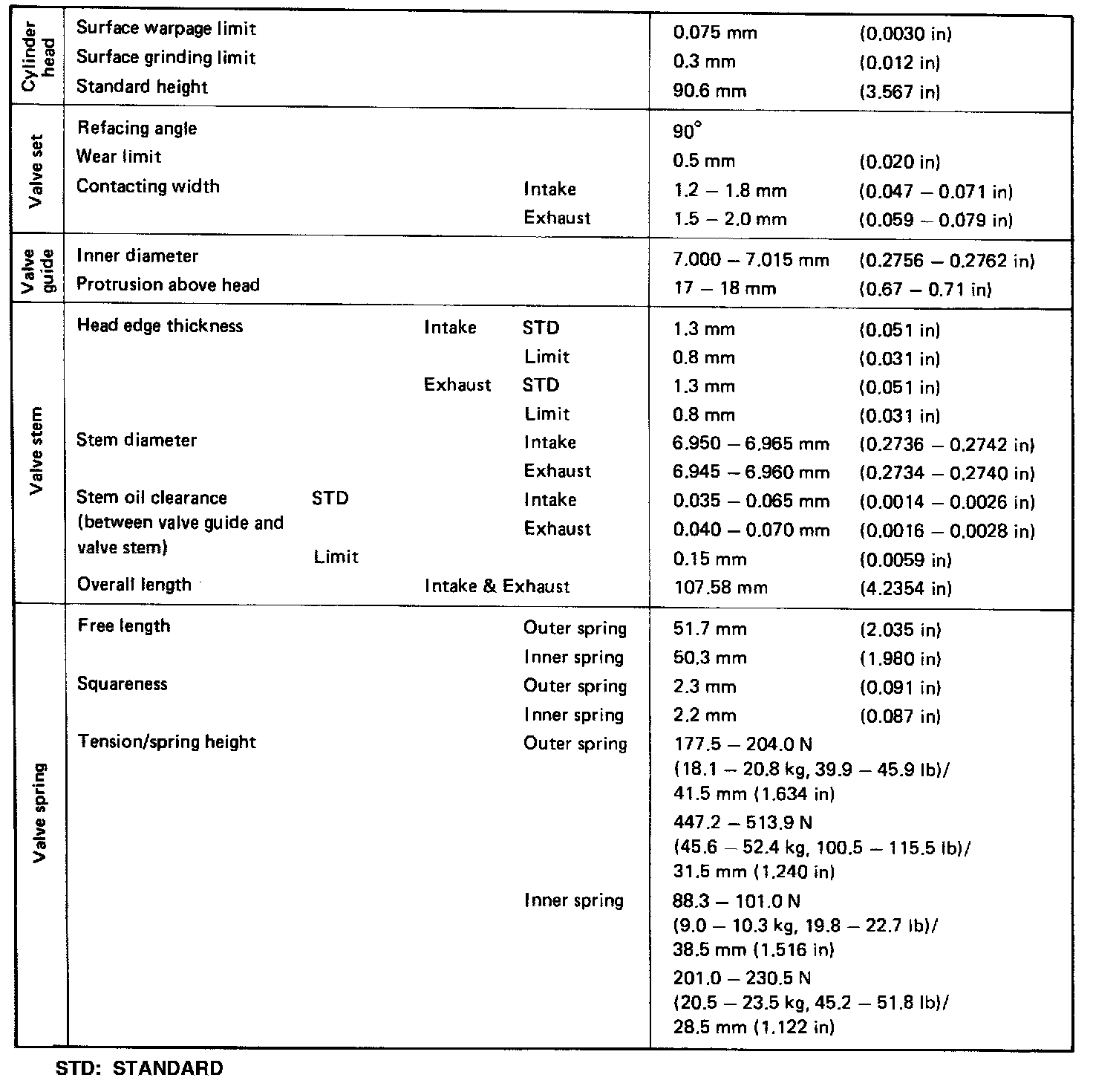

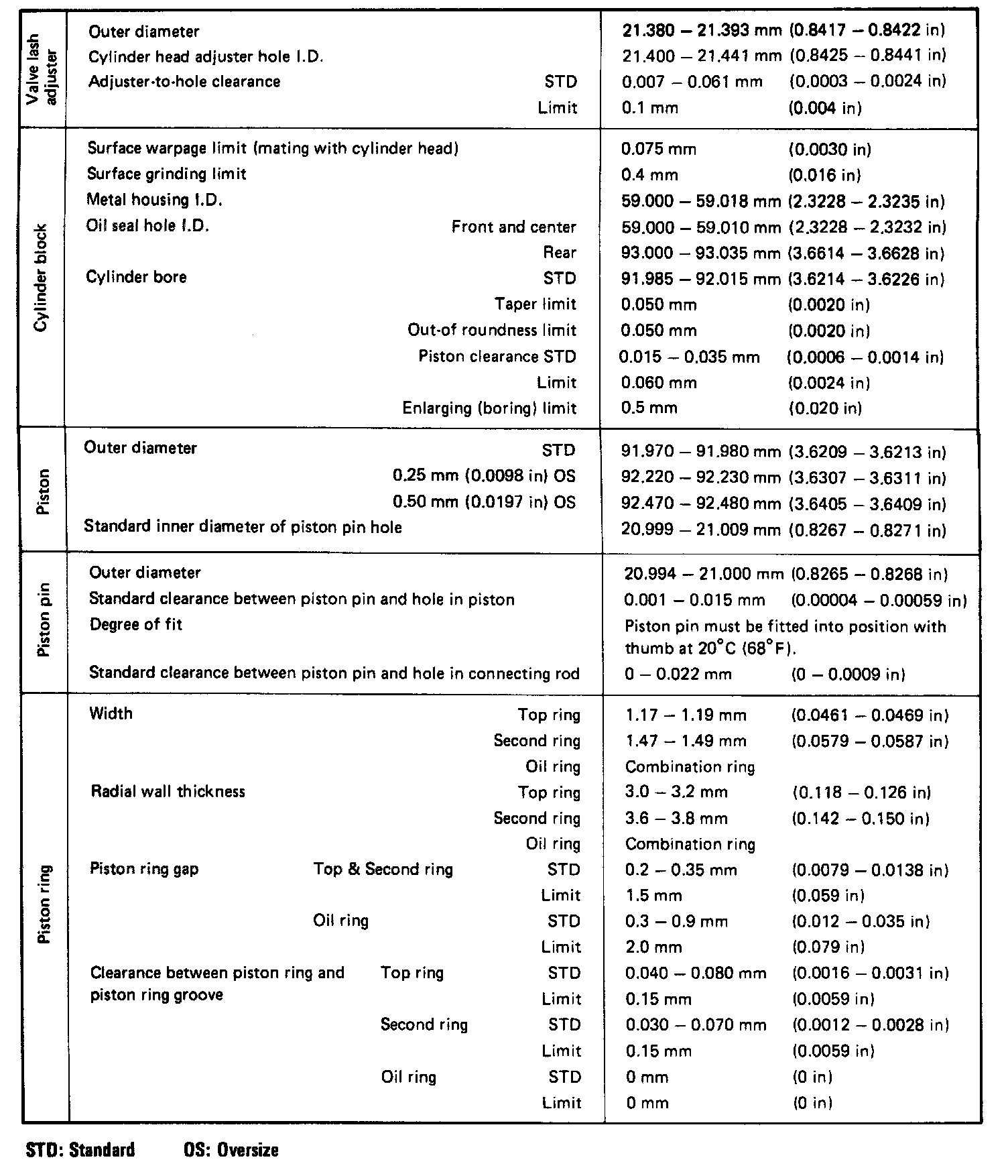

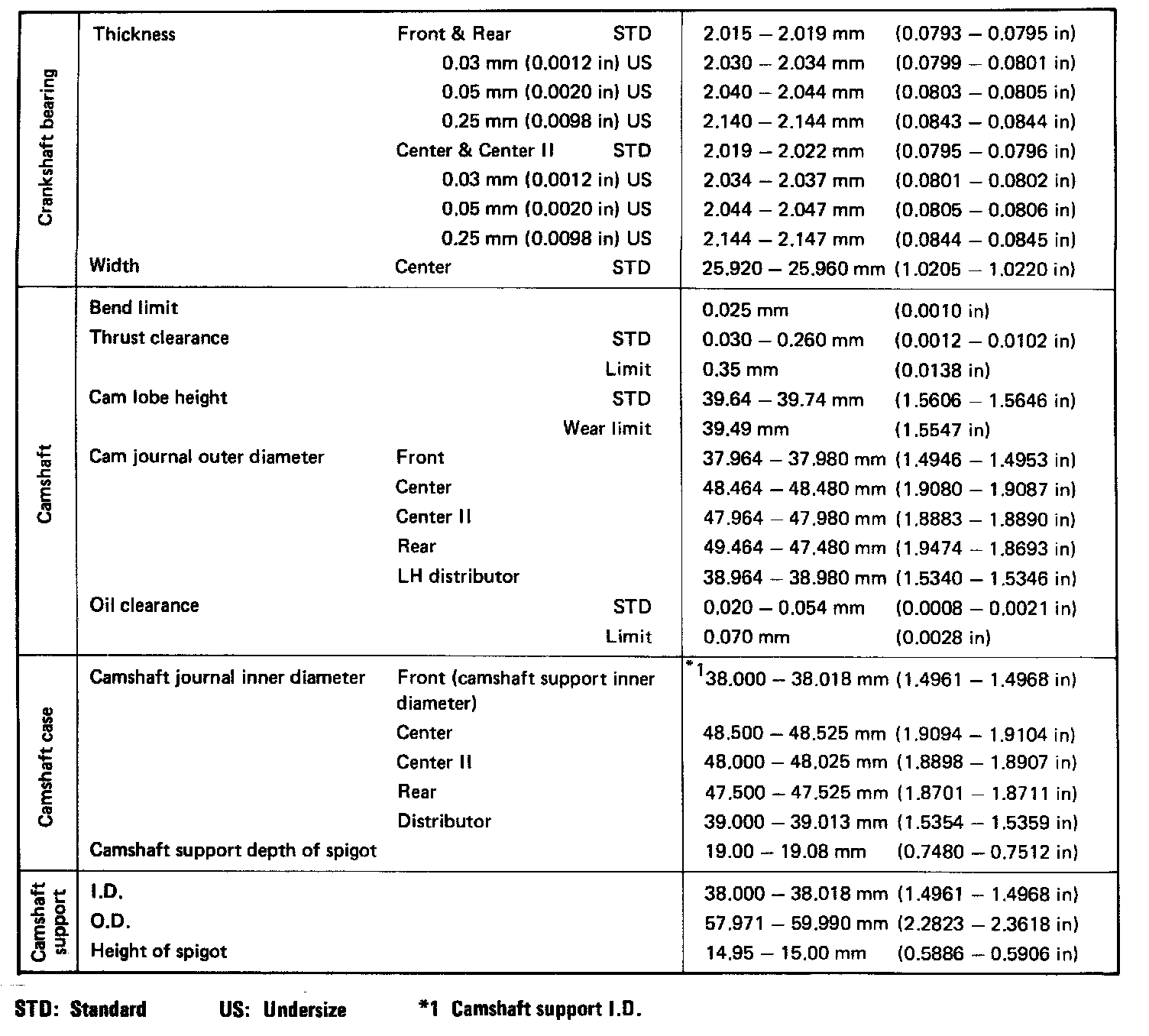

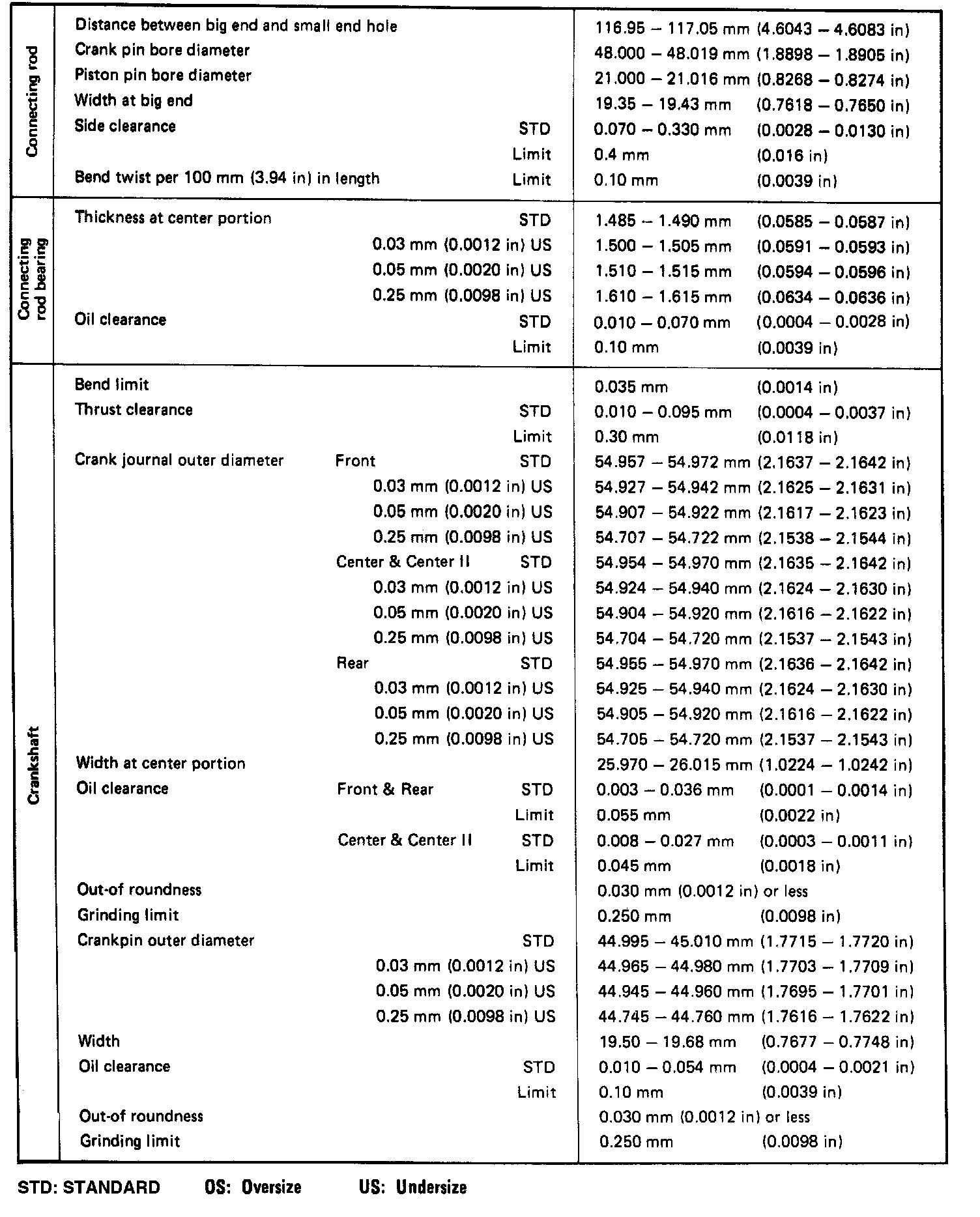

Engine Service Data

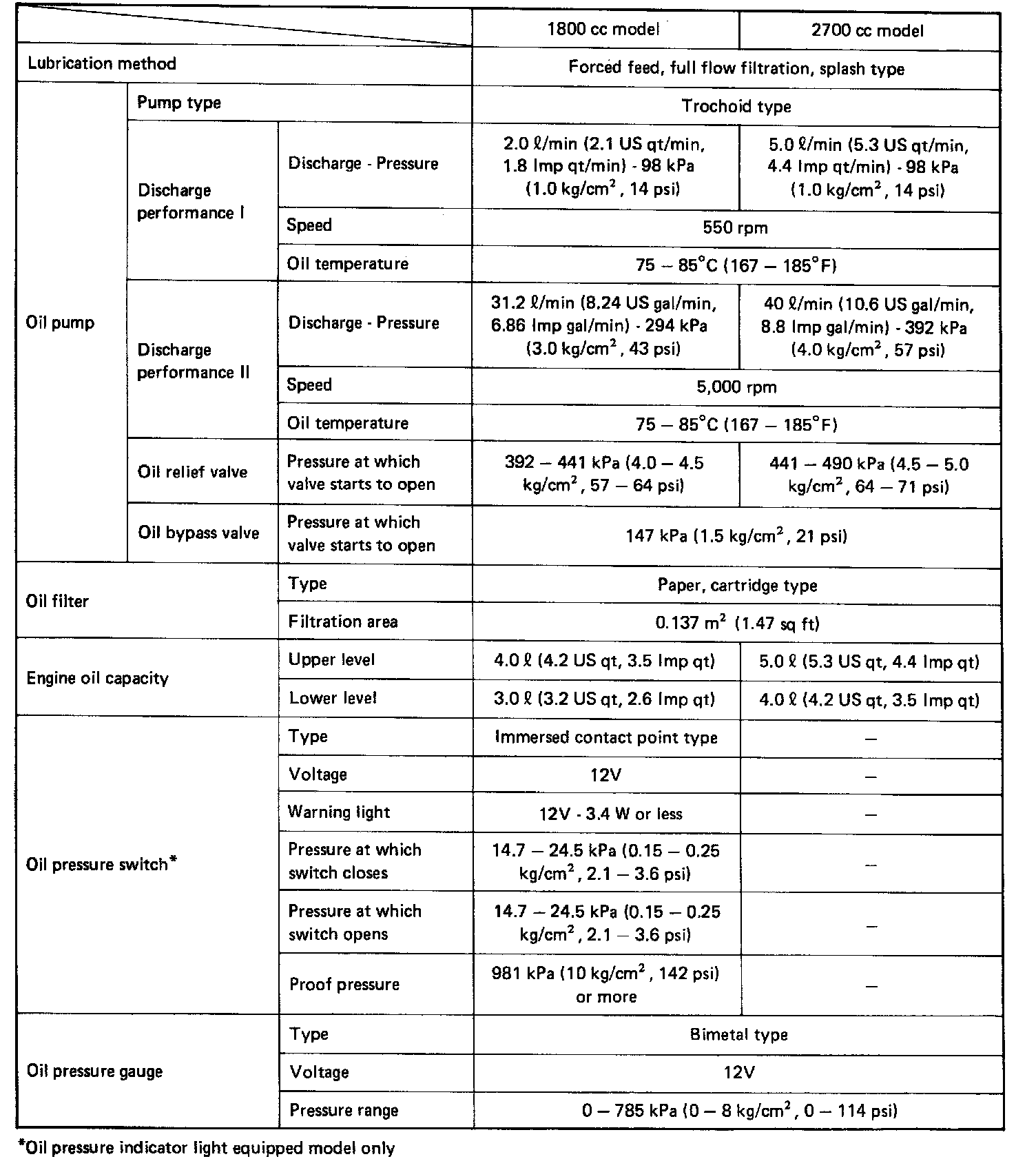

Oil Pump Specifications

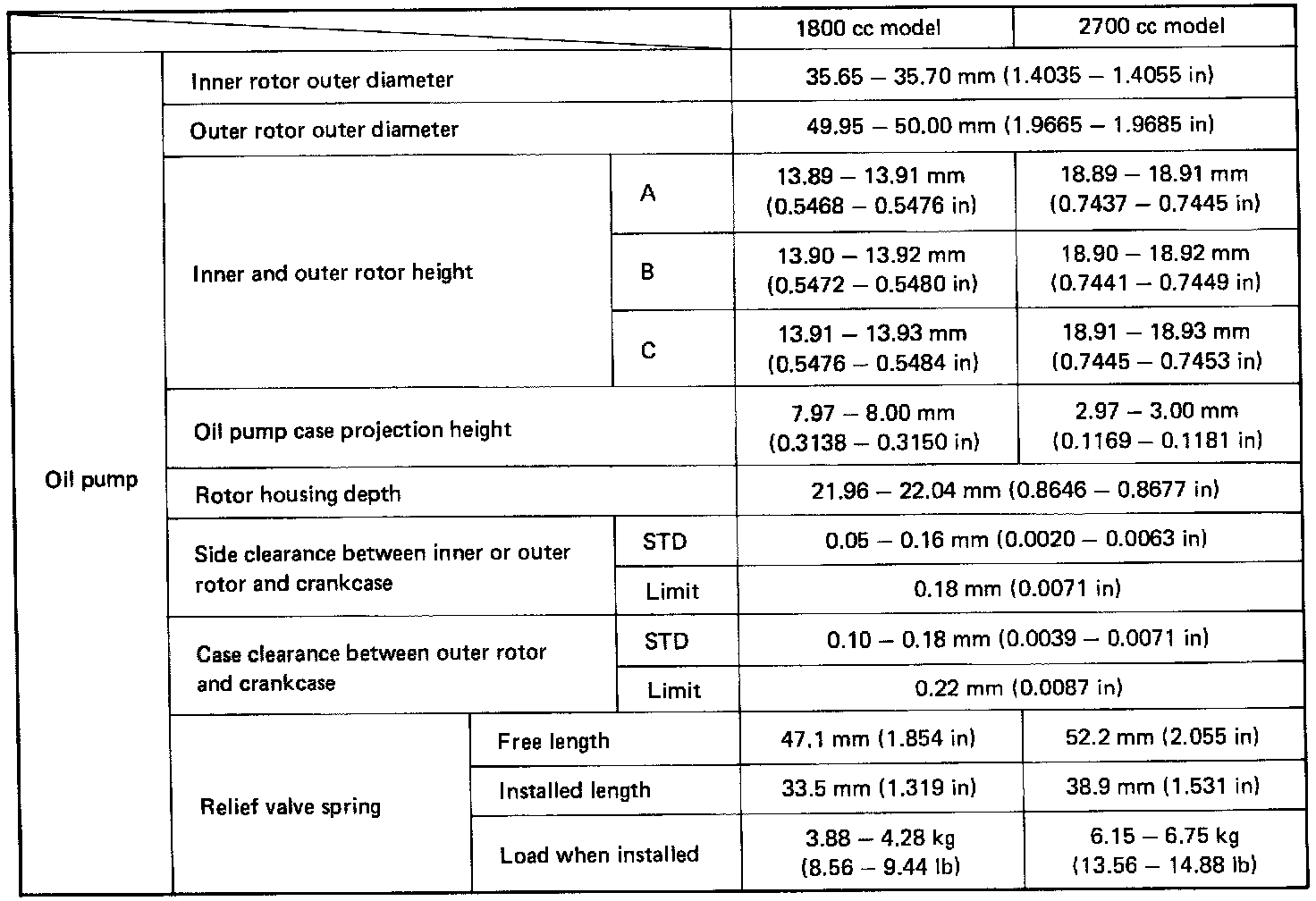

Oil Pump Service Data

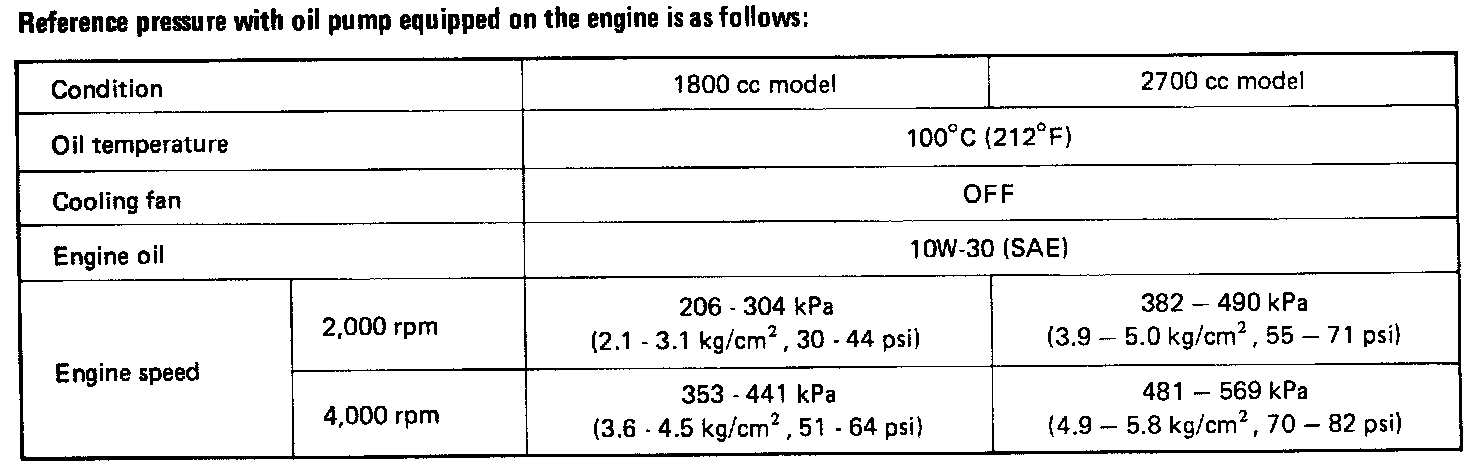

Reference Pressure

Part 1 Of 2:




Part 2 Of 2:

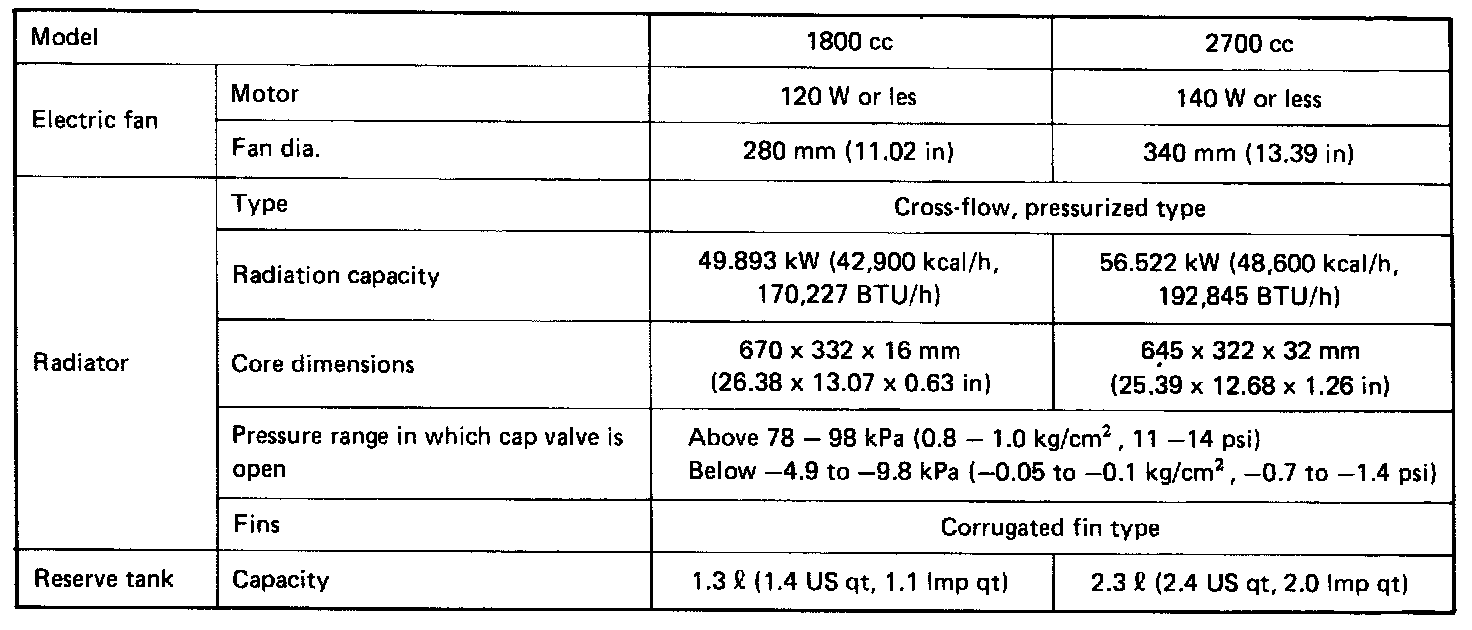

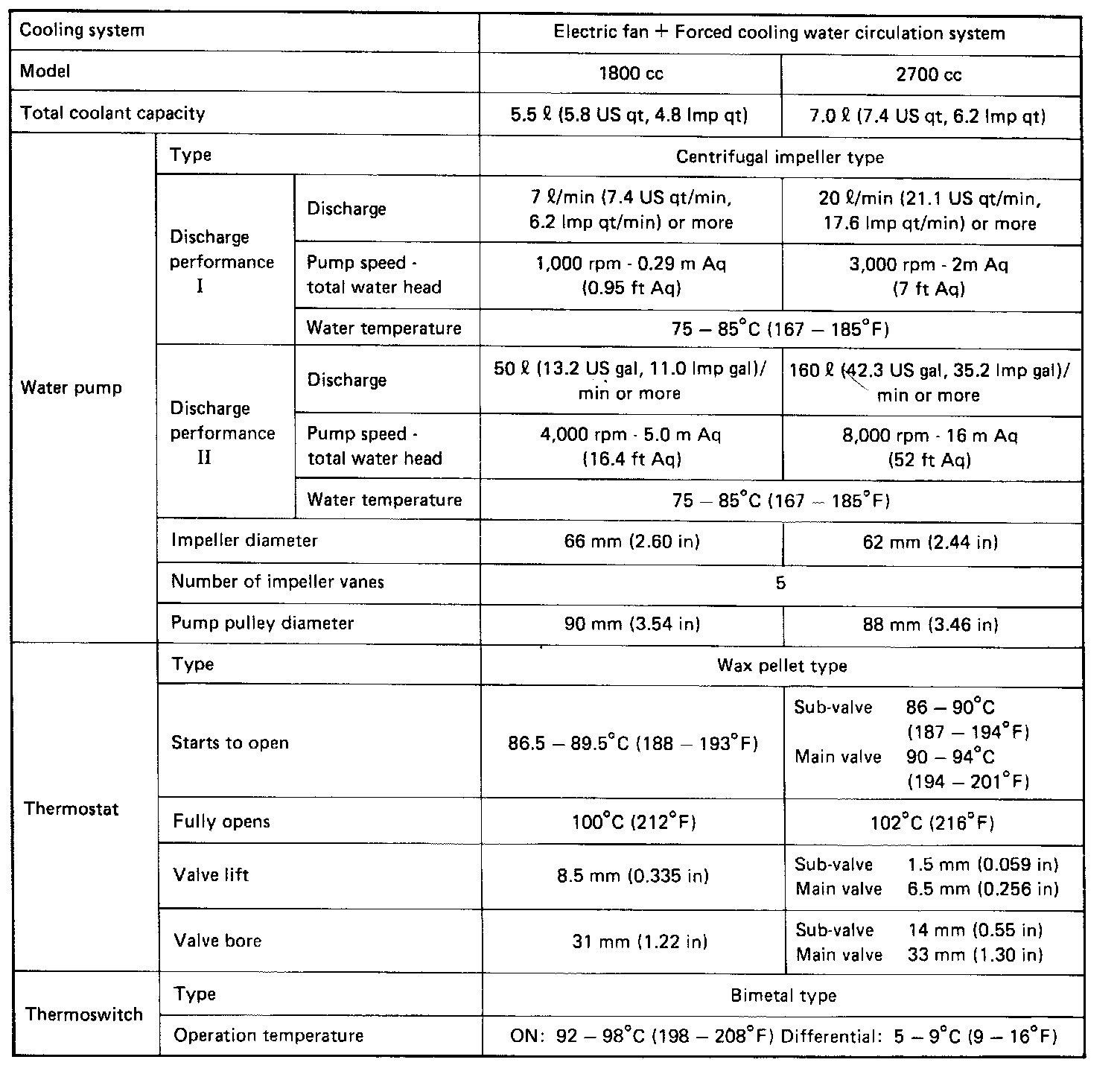

Cooling System Specifications

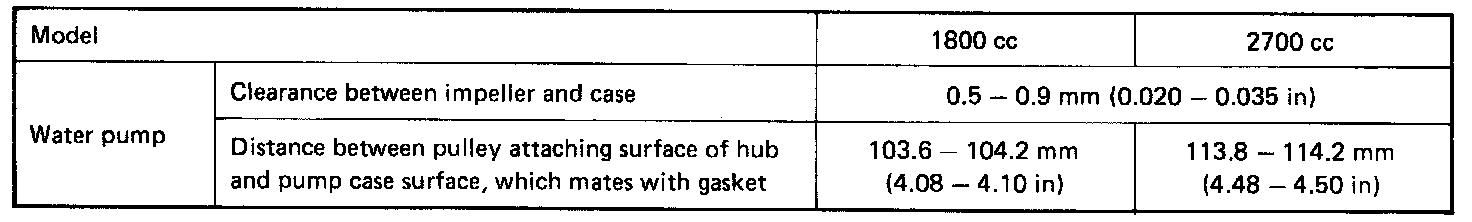

Cooling System Service Data
