Code 34: EGR Solenoid

Fig 1: Wiring Schematic - Code 34: EGR Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.

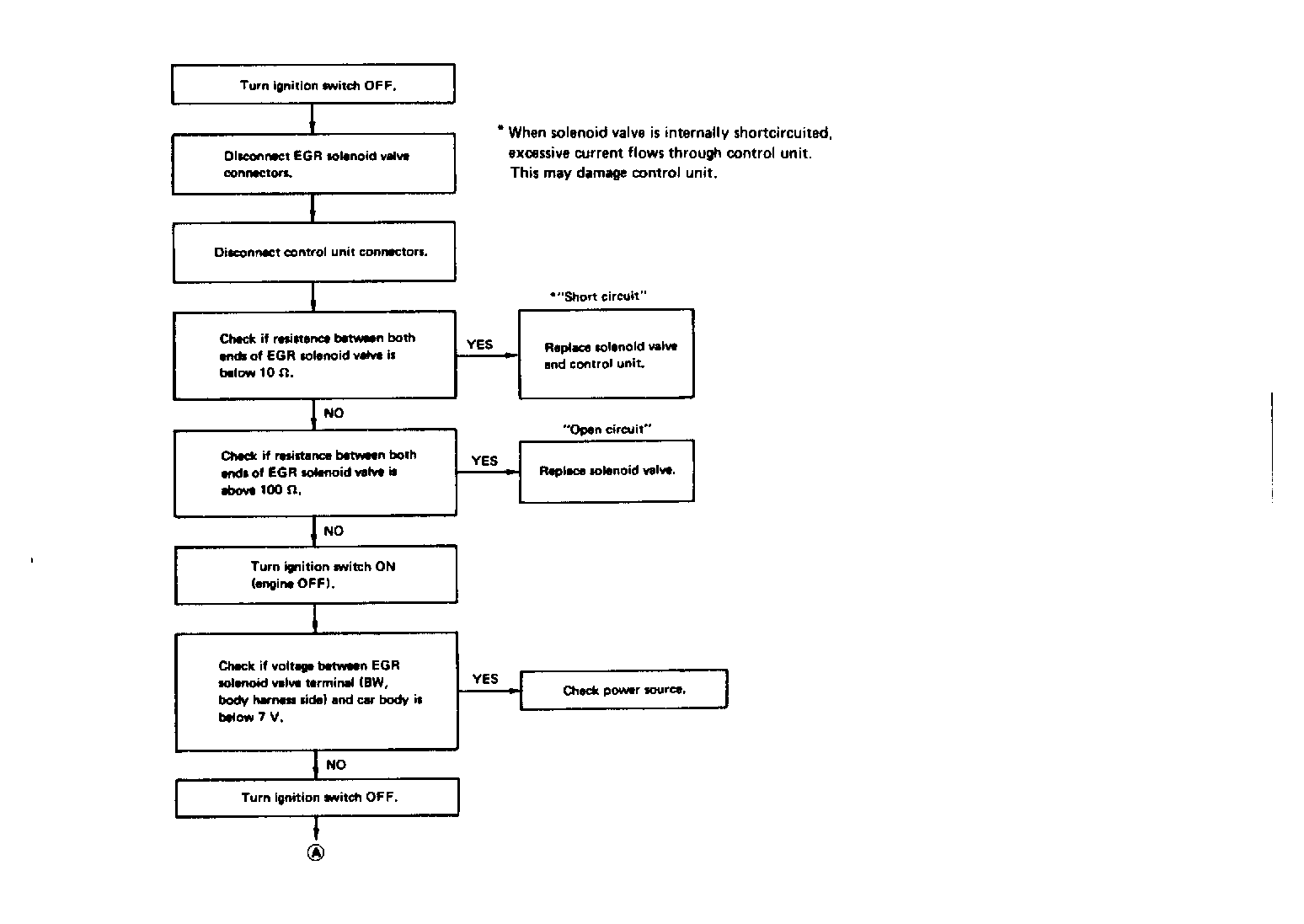

Fig 2: Flow Chart (1 of 2) - Code 34: EGR Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.

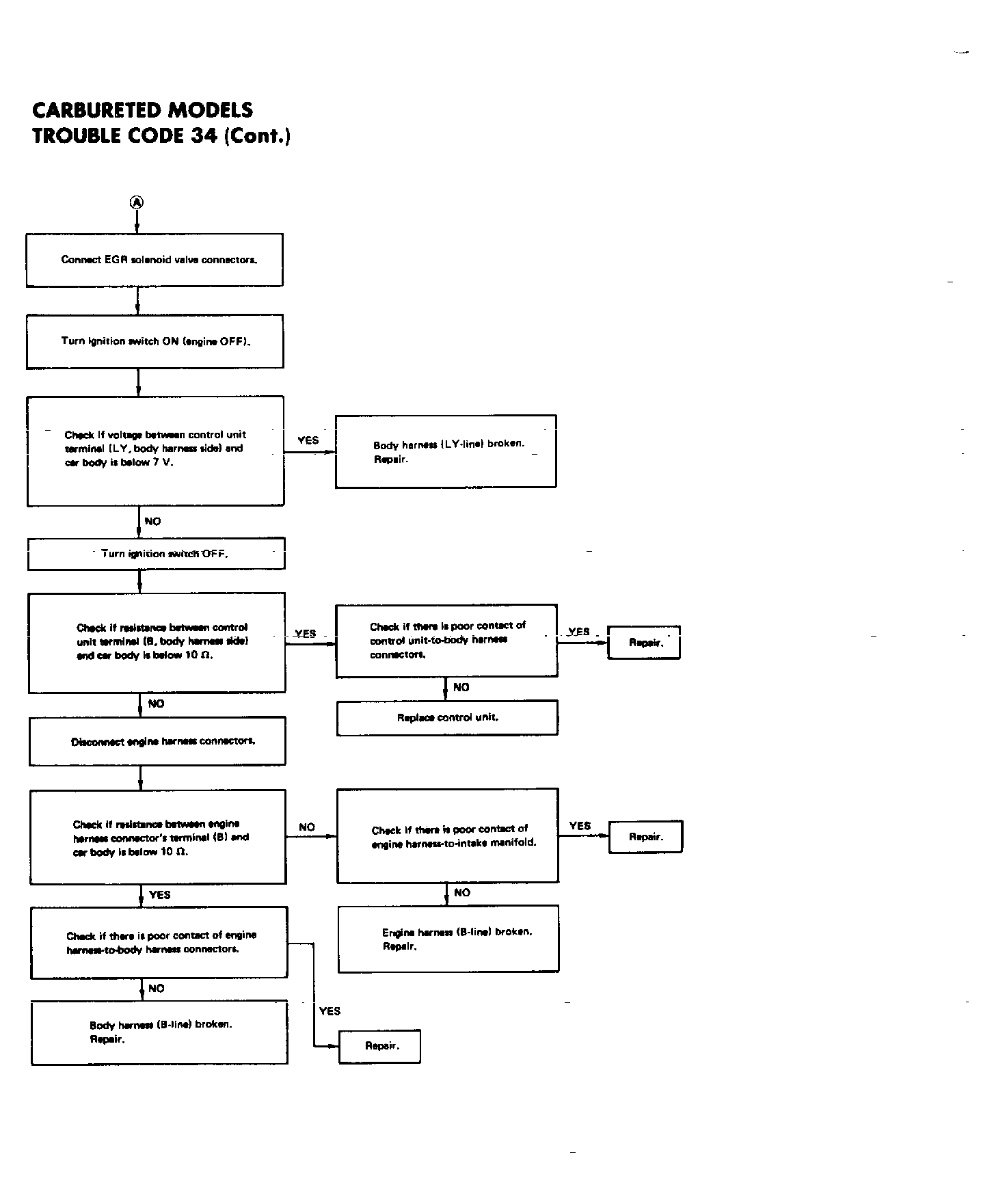

Fig 3: Flow Chart (2 of 2) - Code 34: EGR Solenoid Valve

Courtesy of SUBARU OF AMERICA, INC.
