Code 35: CPC Solenoid Valve
Fig 1: Wiring Schematic - Code 35: CPC Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.

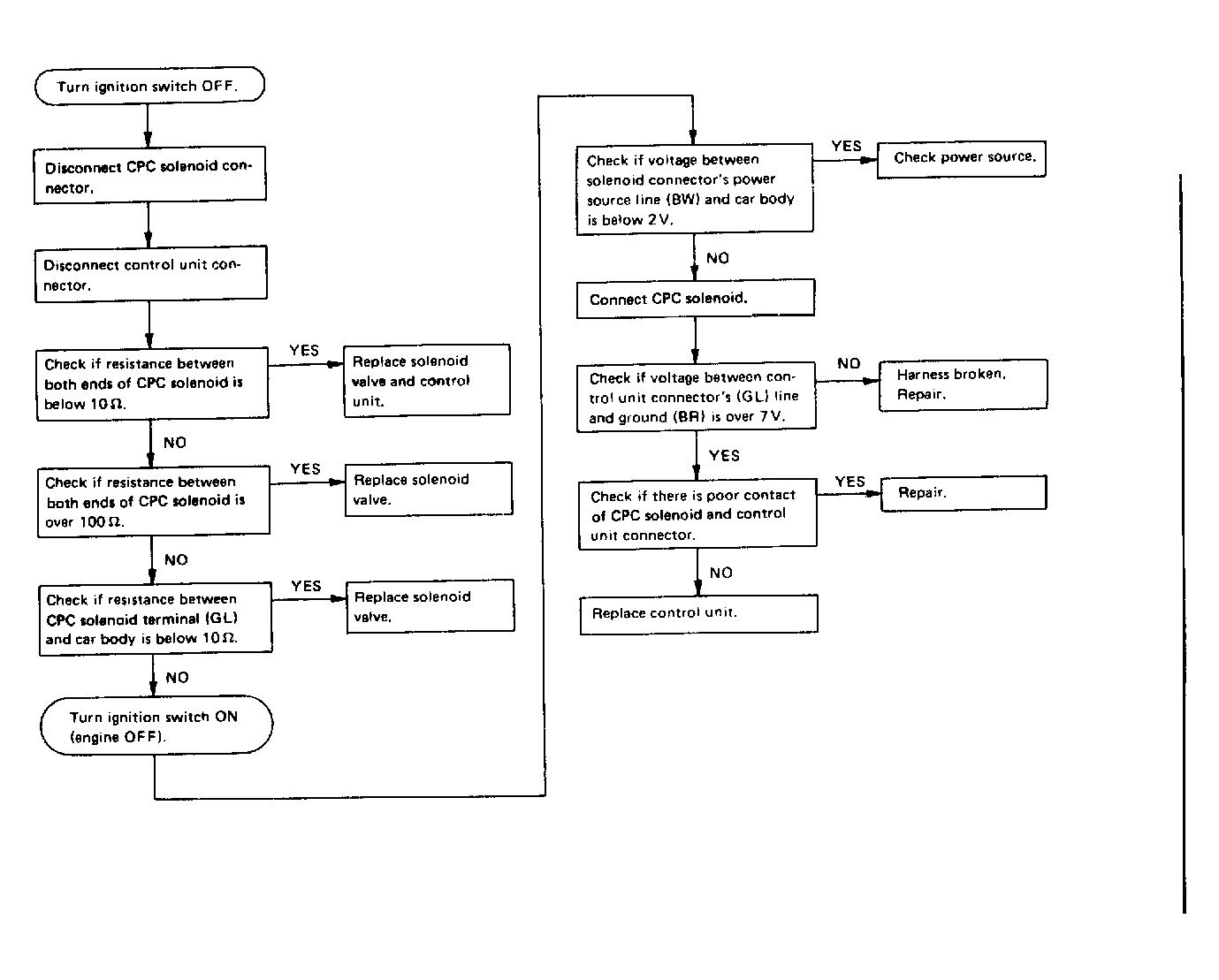

Fig 2: Flow Chart - Code 35: CPC Solenoid Valve
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
