Code 55: EGR Sensor

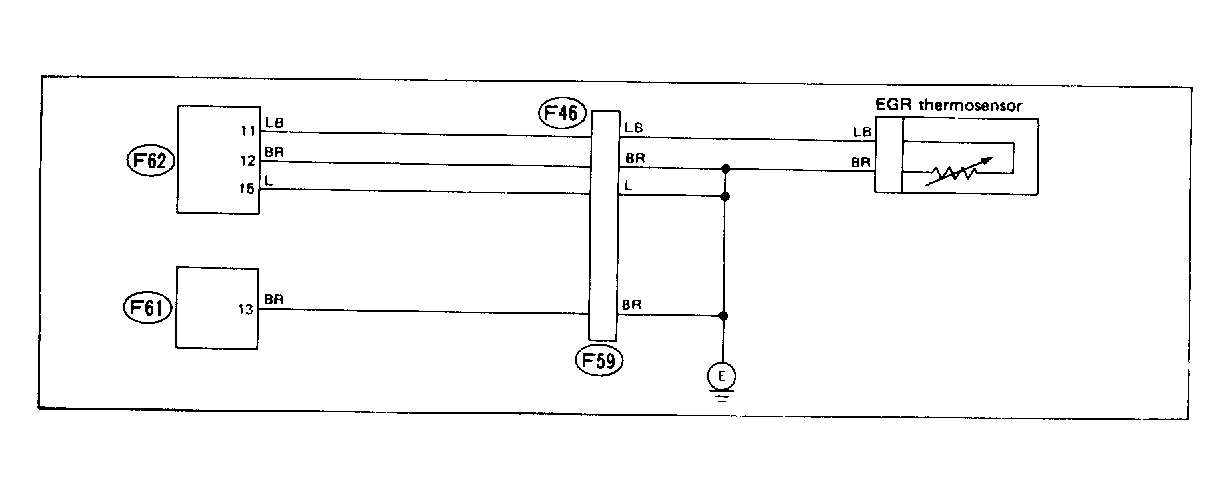

Fig 1: Wiring Schematic - Code 55: EGR Sensor
G118332Courtesy of SUBARU OF AMERICA, INC.

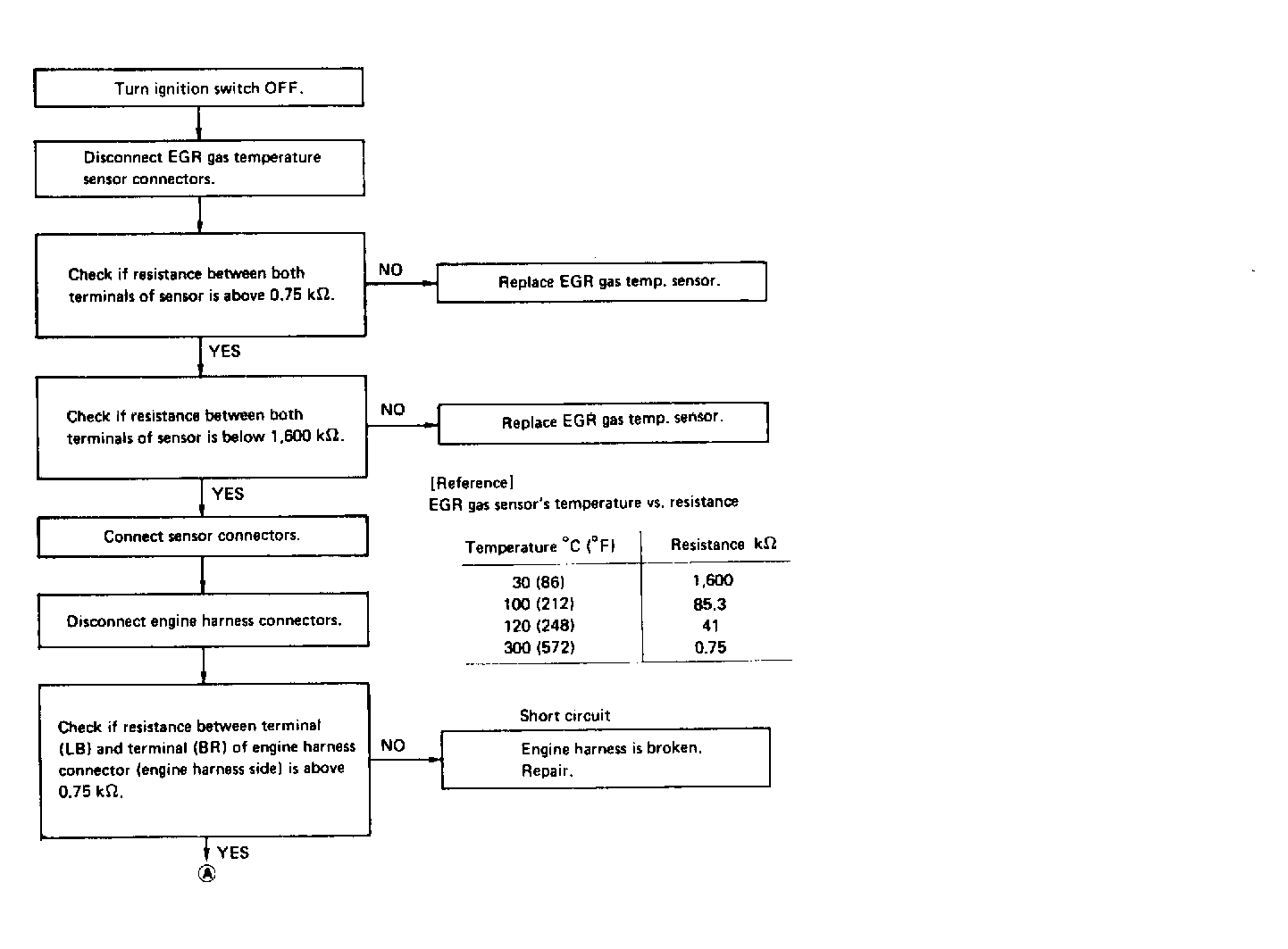

Fig 2: Flow Chart (1 of 2) - Code 55: EGR Sensor
G121931Courtesy of SUBARU OF AMERICA, INC.

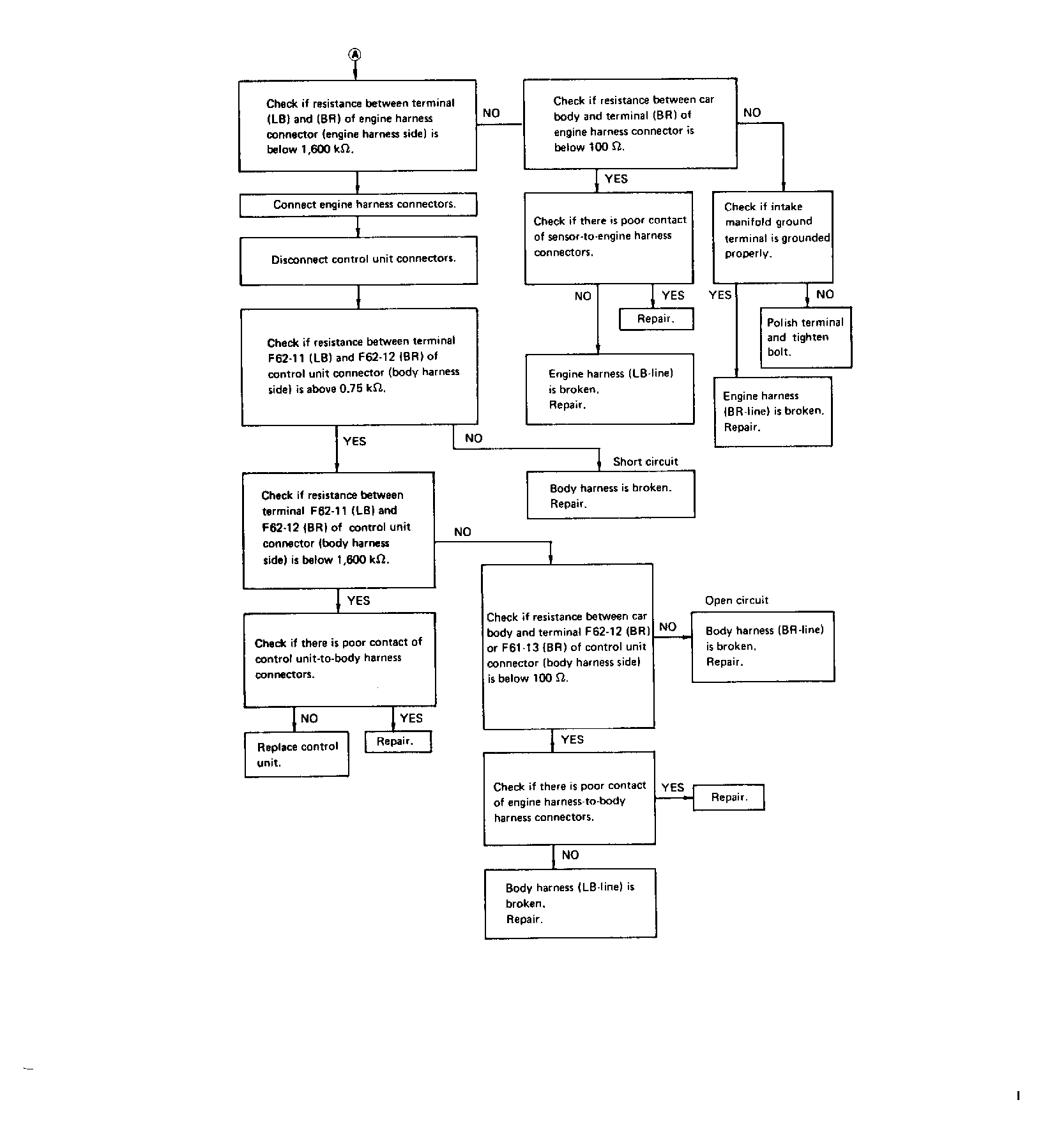

Fig 3: Flow Chart (2 of 2) - Code 55: EGR Sensor
G118333Courtesy of SUBARU OF AMERICA, INC.
