Code 13: TDC Sensor

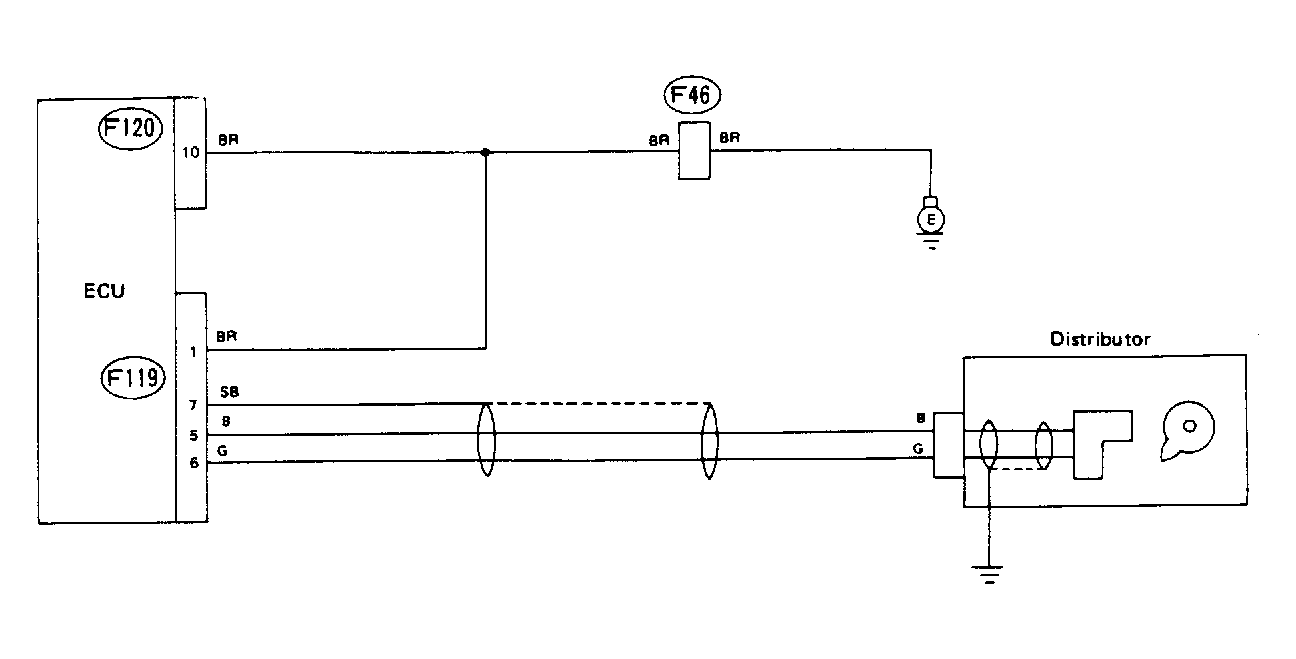

Fig 1: Schematic - Code 13, TDC Sensor

G91J18332

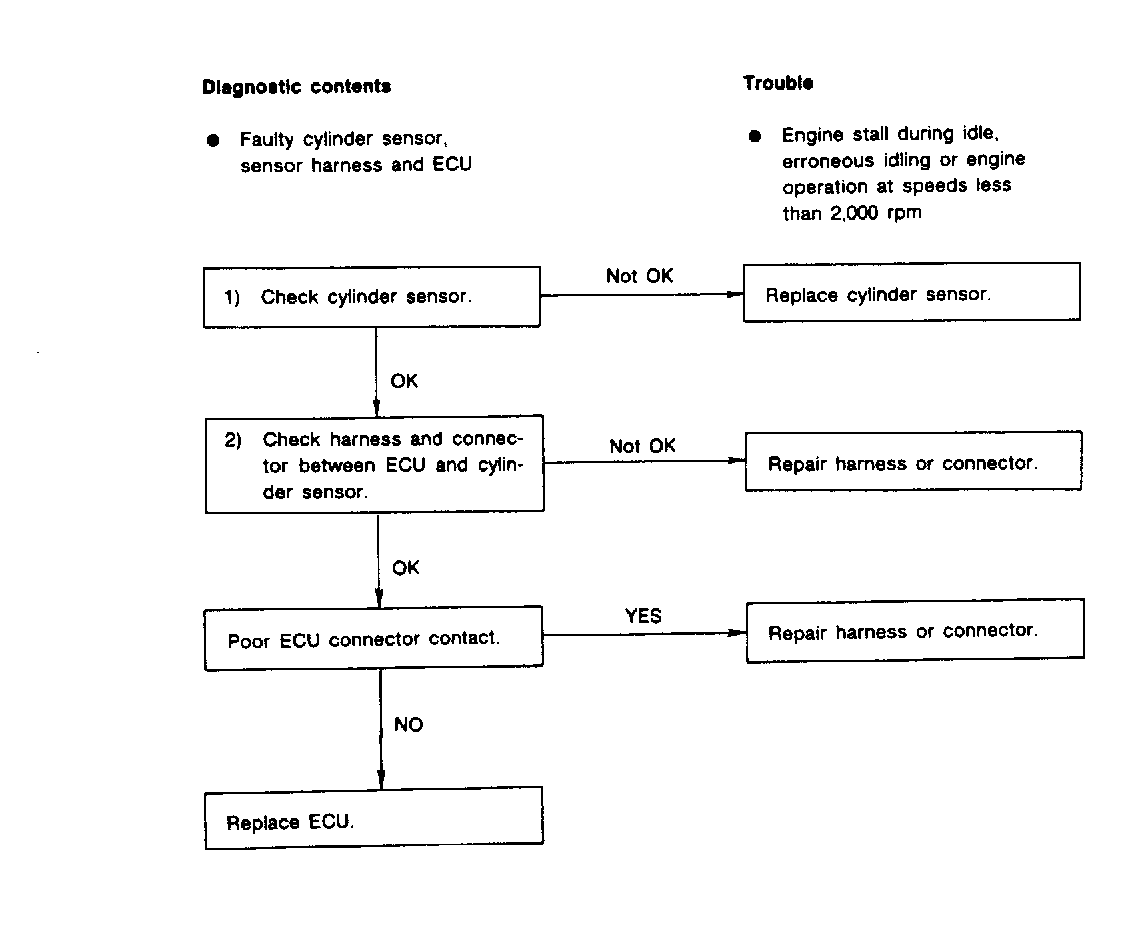

Fig 2: Flow Chart - Code 13, TDC Sensor

G90B18771
