Code 24: ISC Solenoid Valve

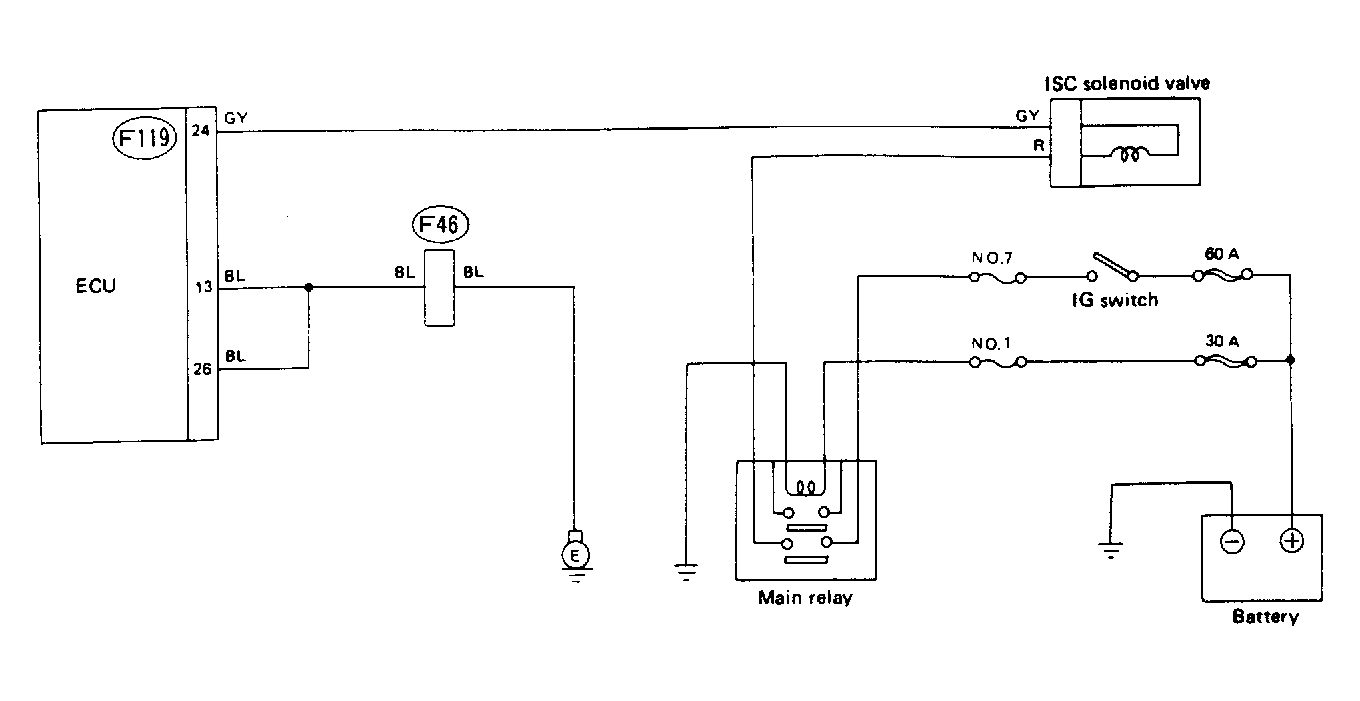

Fig 1: Schematic - Code 24, ISC Solenoid Valve

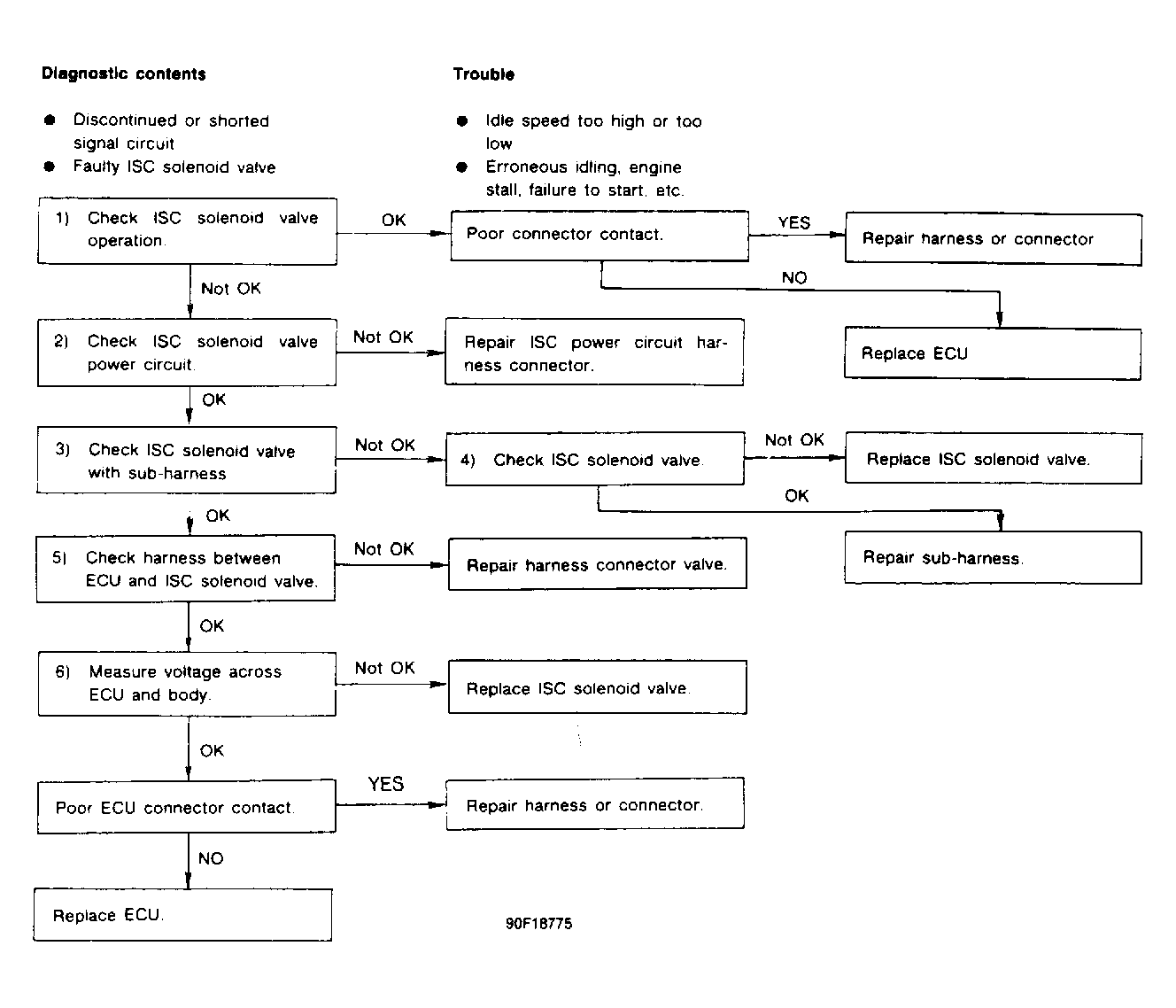

Fig 2: Flow Chart - Code 24, ISC Solenoid Valve
