Trouble Codes: Notes

NOTE: For ABS ECU terminal identification, see Figure . For check connector terminal identification, see Figure . For other connectors terminal identification, see Figure and Figure .

NOTE: For additional voltage specifications during trouble code testing, see Fig 1 .

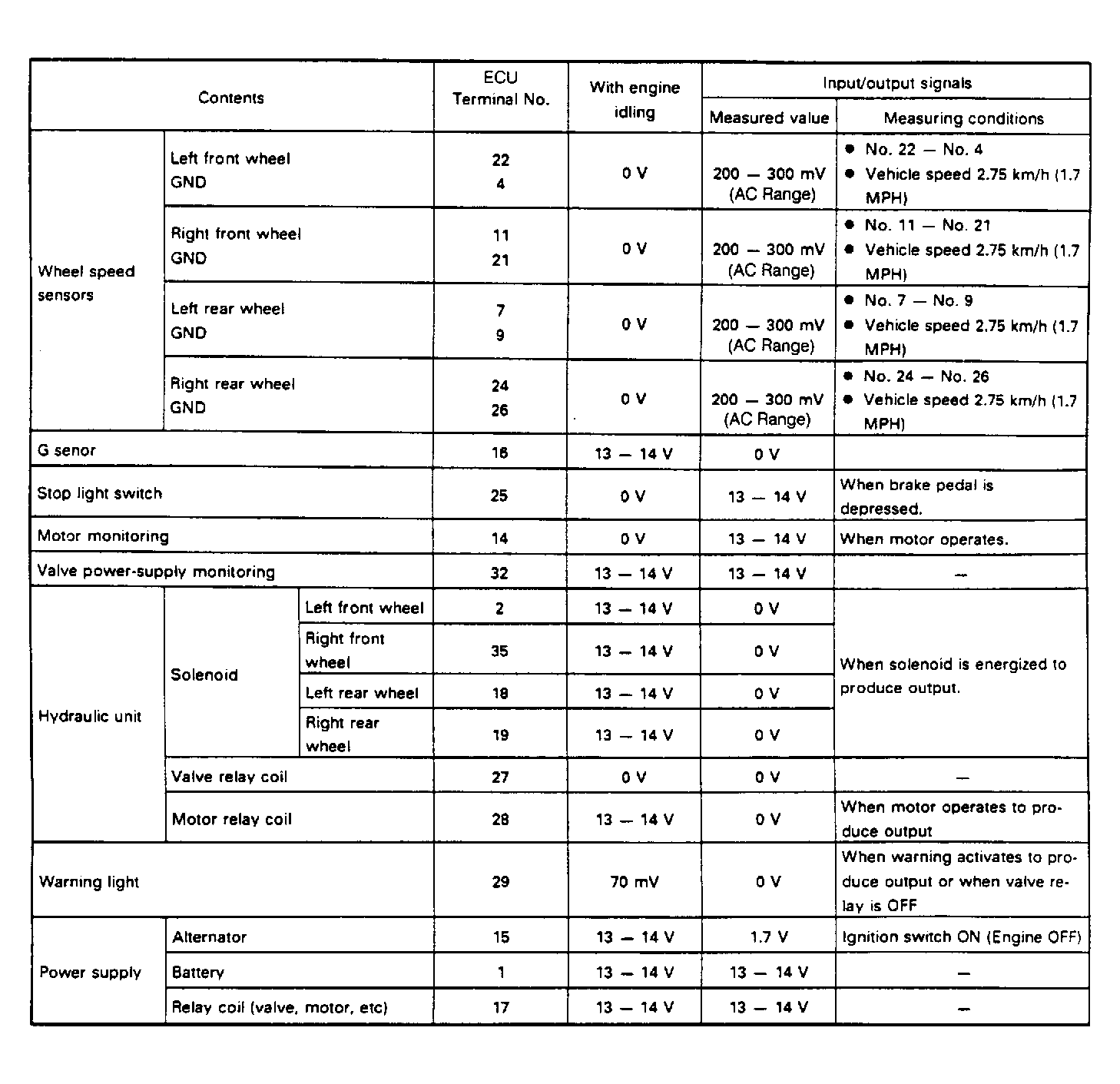

Fig 1: ABS ECU Pin Voltage Chart

Courtesy of SUBARU OF AMERICA, INC.
