Main Switch

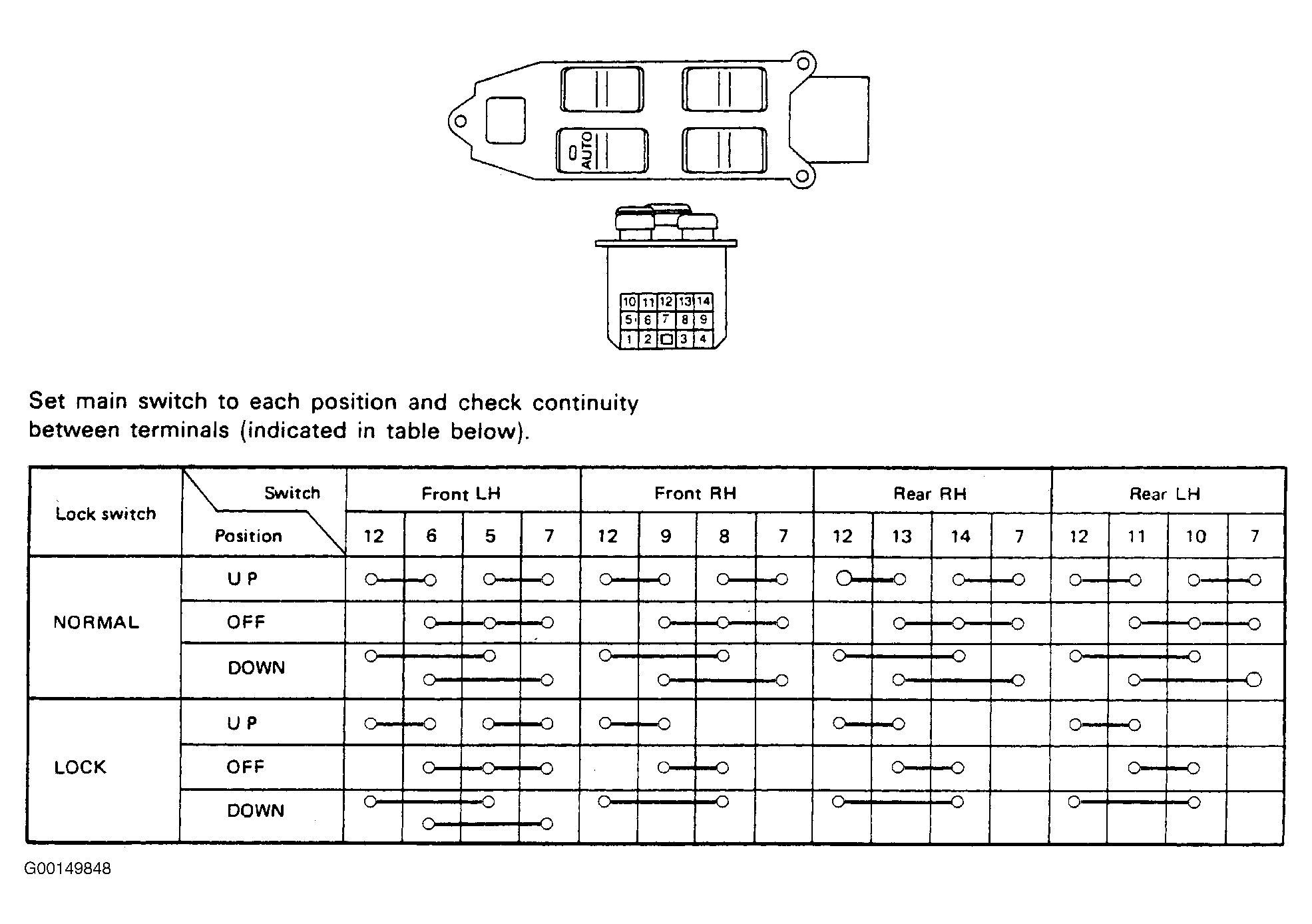

Fig 1: Main Switch Continuity Test
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
