Control Circuit (SVX)

WARNING: This page is about a different car, the 1992 Subaru SVX, 1992 Subaru Legacy, 1991 Subaru Legacy, and 1990 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

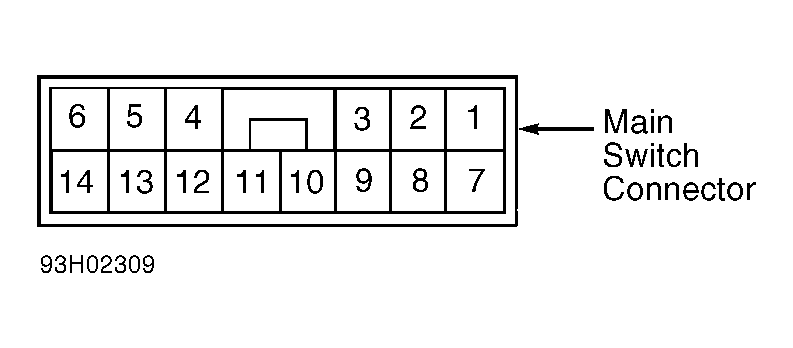

Disconnect switch electrical connector. With switch turned on, there should be continuity between switch connector terminals No. 4 and 9. SeeFigure . With switch turned off, there should be NO continuity between switch connector terminals No. 4 and 9. If continuity is not as specified, replace switch.
