Air Flow Meter

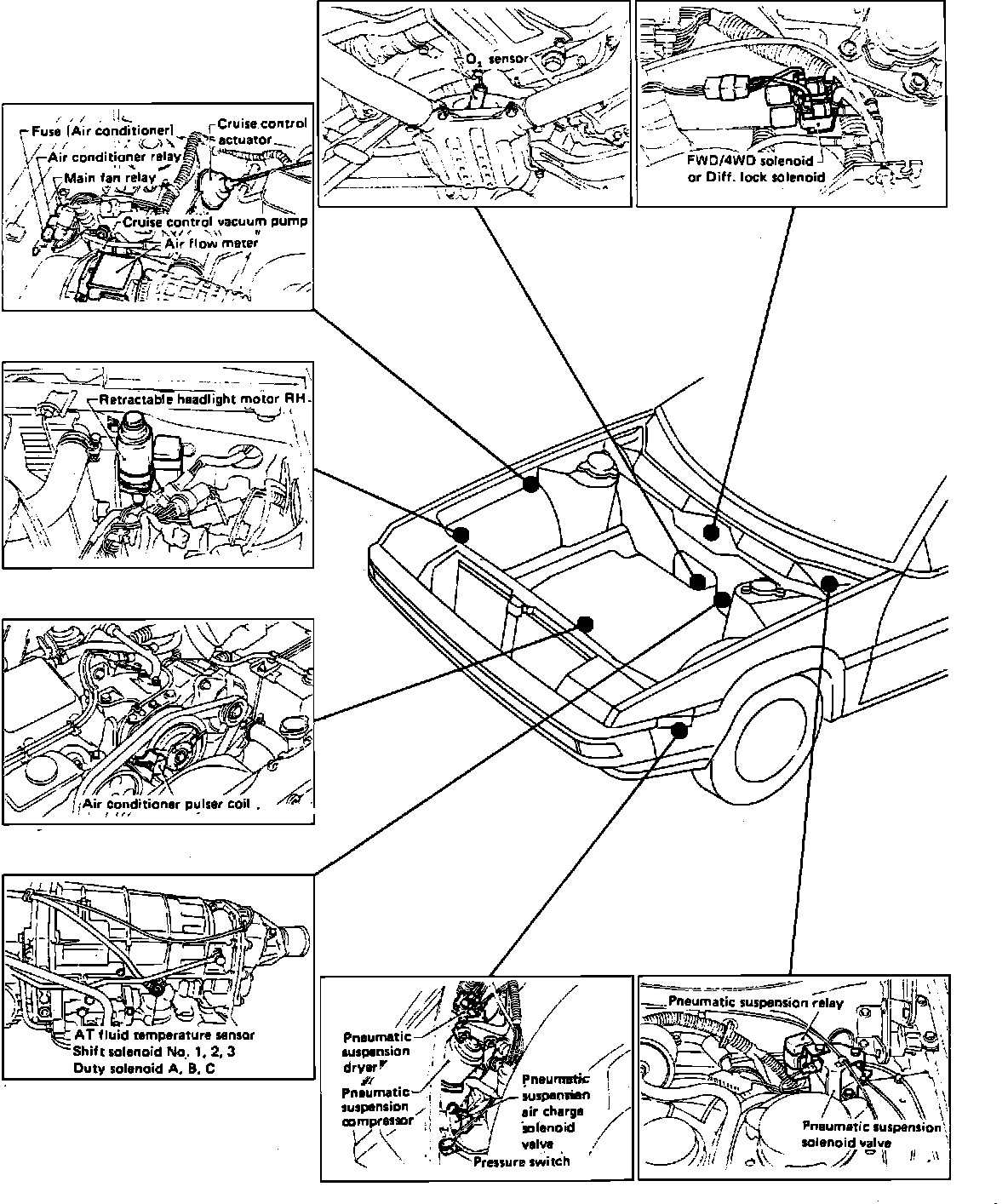

Engine Compartment Component Locations (Part 1 Of 3):

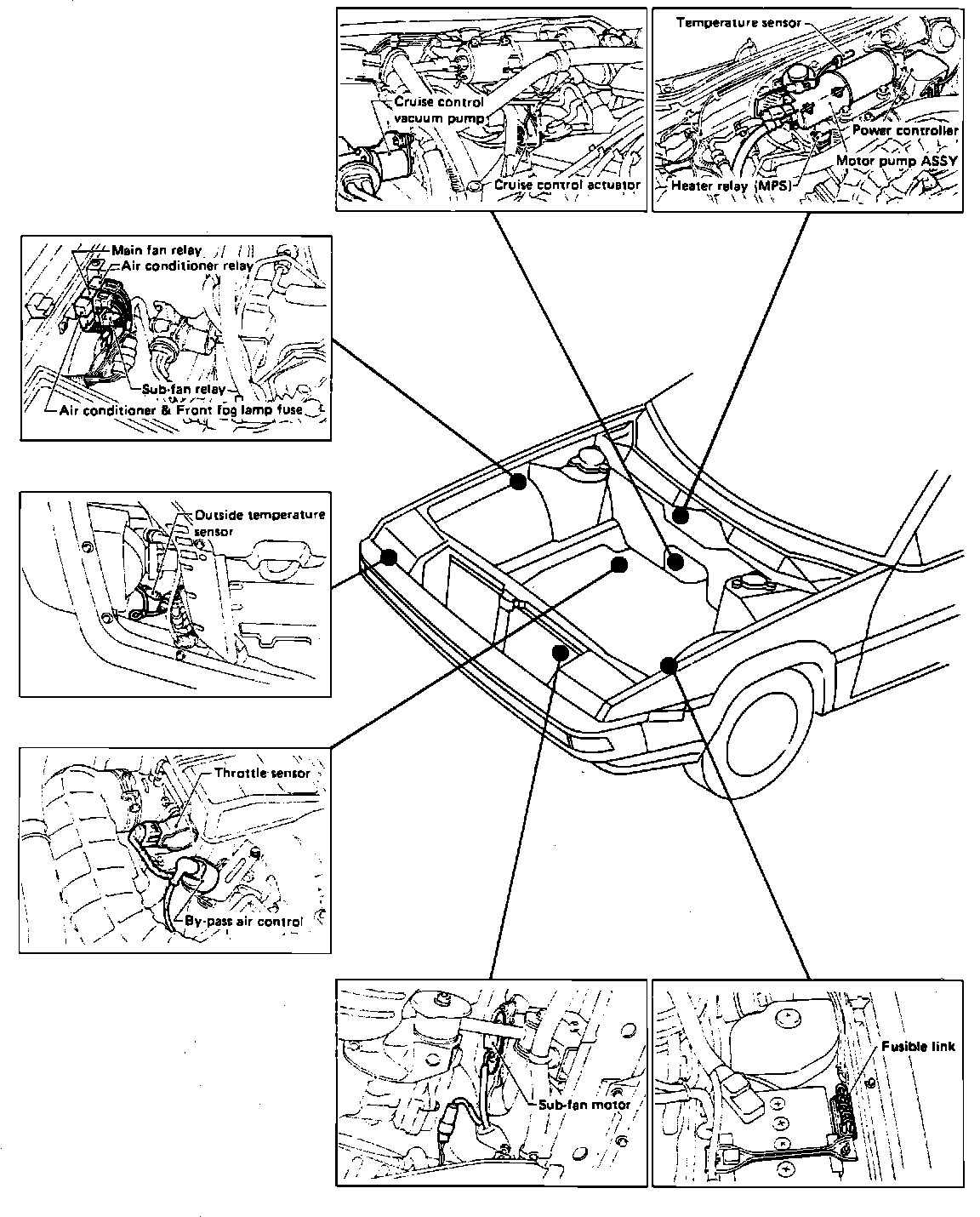

Engine Compartment Component Locations (Part 2 Of 3):

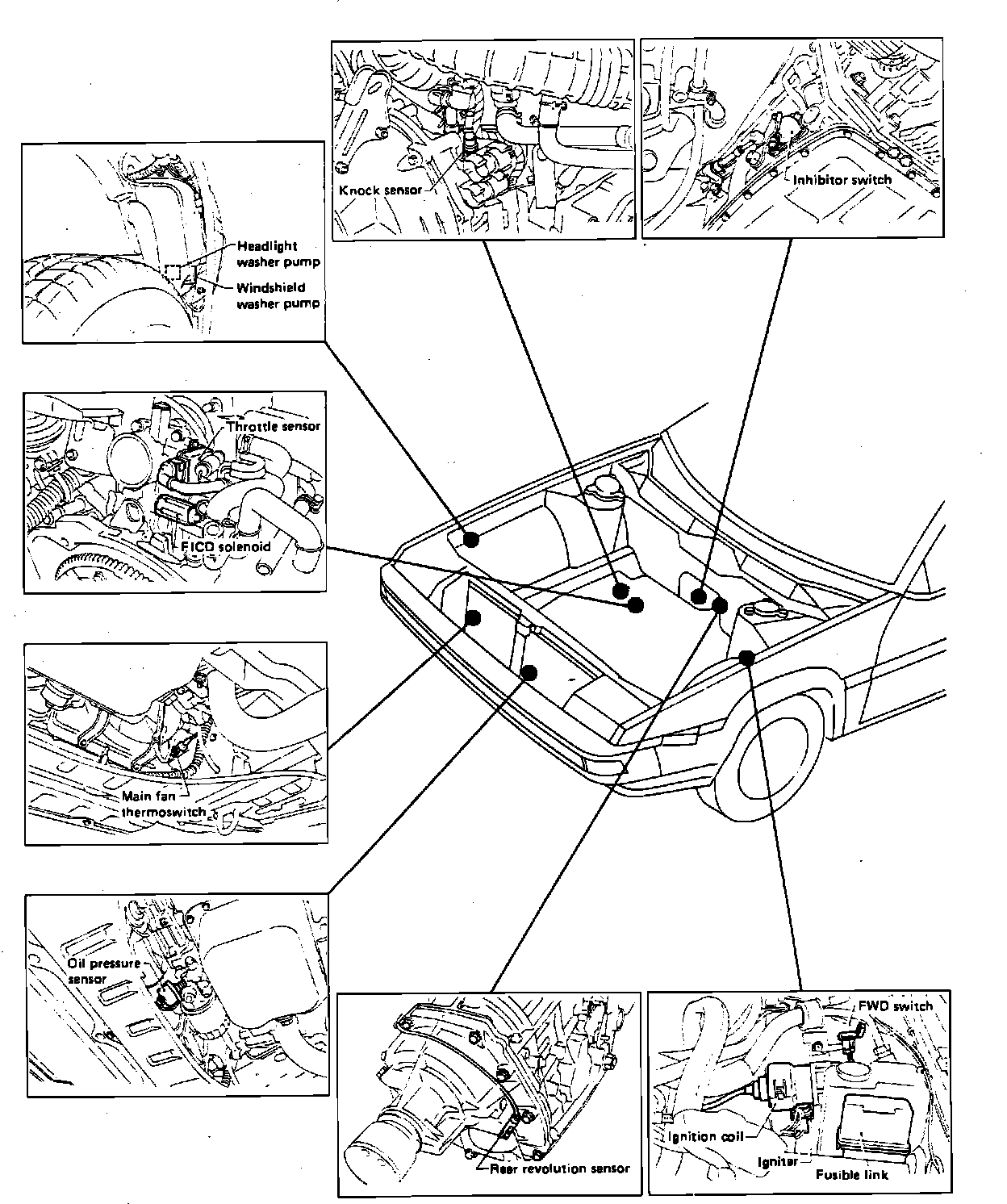

Engine Compartment Component Locations (Part 3 Of 3):




Attached To RH Fender Apron
