Throttle Position Sensor: Service and Repair

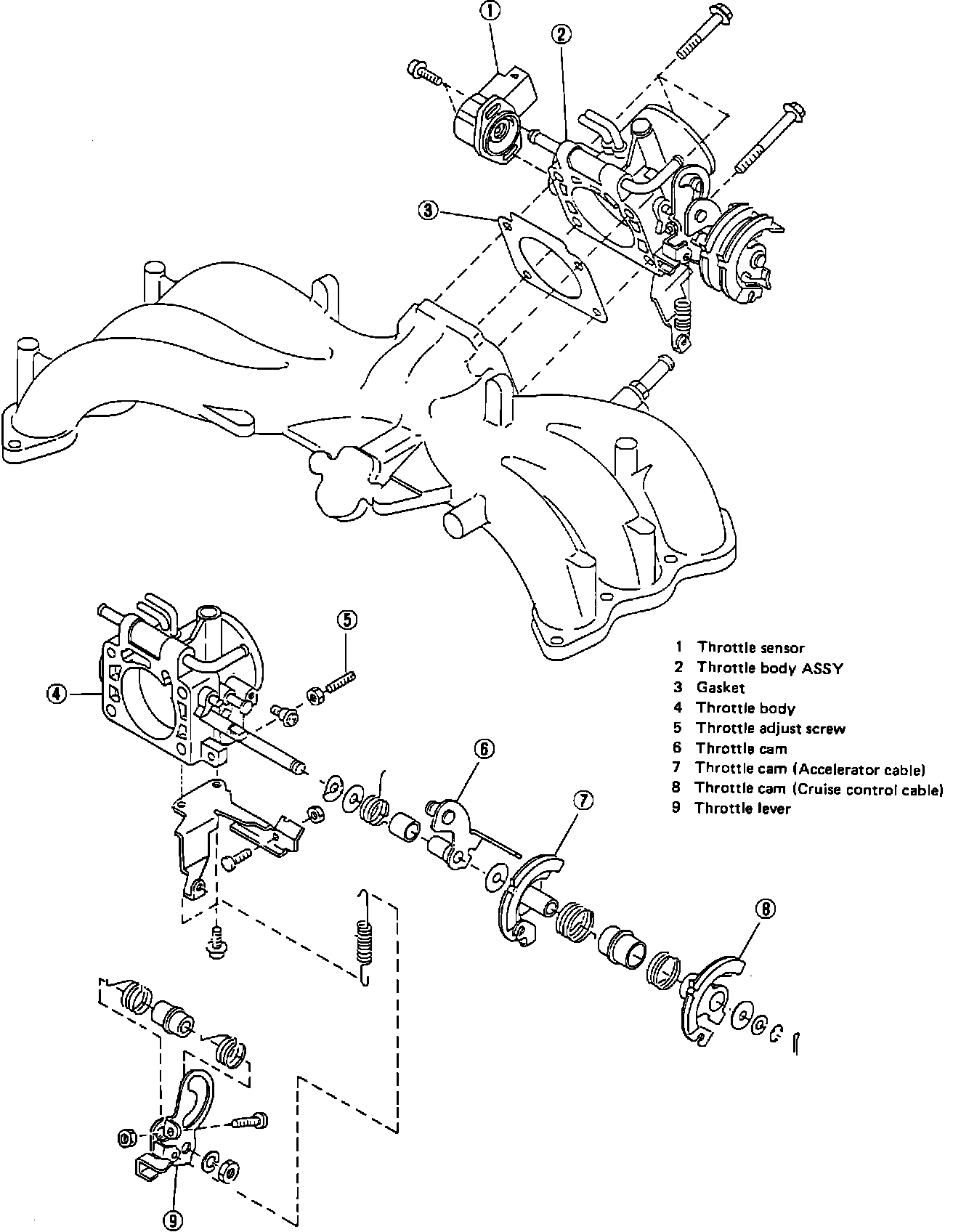

Throttle Chamber:

1. Disconnect electrical connector from sensor.
2. Remove sensor fasteners.
3. Install in reverse procedure.
4. Refer to ADJUSTMENT PROCEDURES
