Cruise Control Module: Testing and Inspection

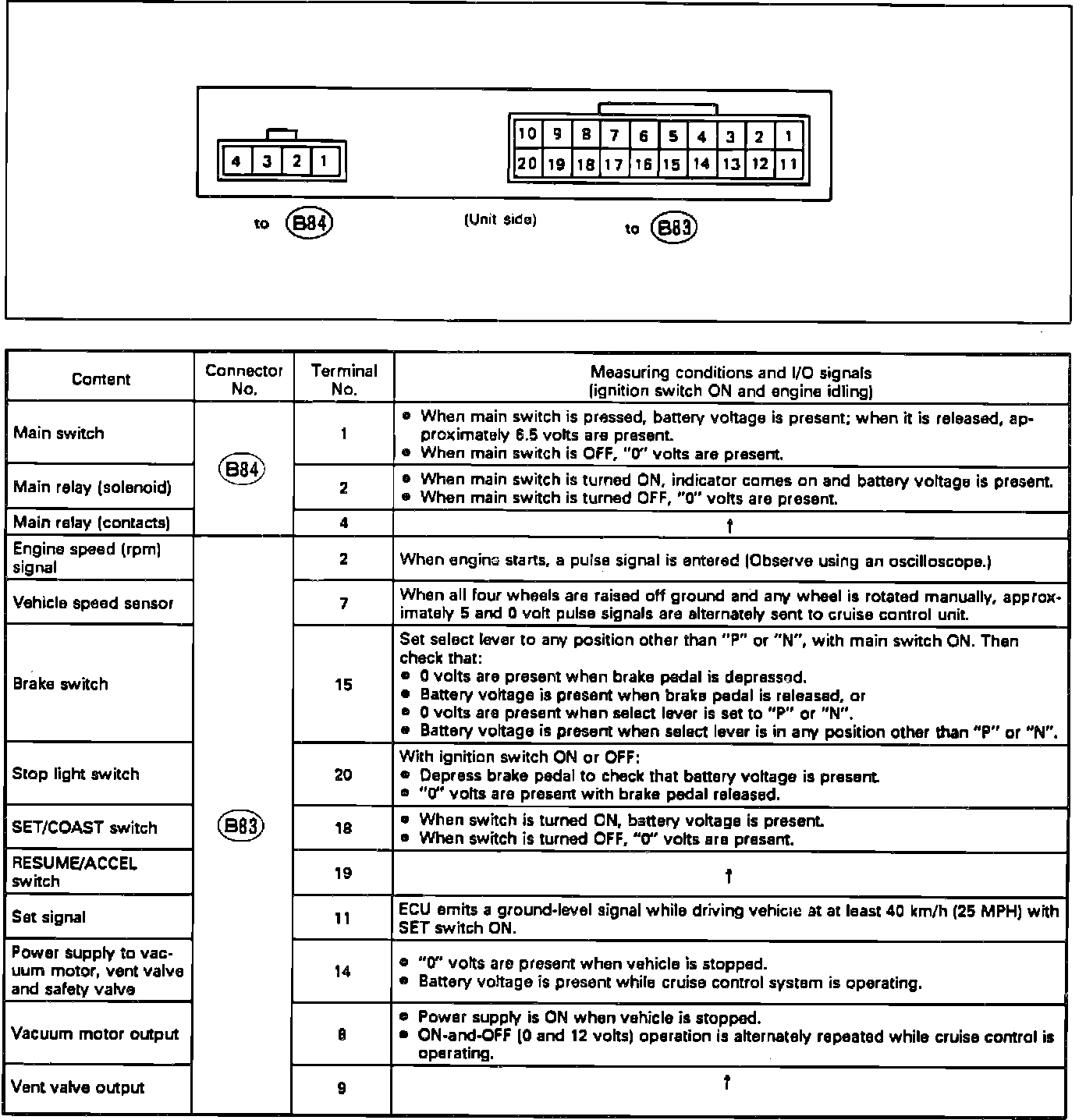

Control Unit Pin Voltage TestFig. 17 Control Unit Pin Voltage Test. Legacy:

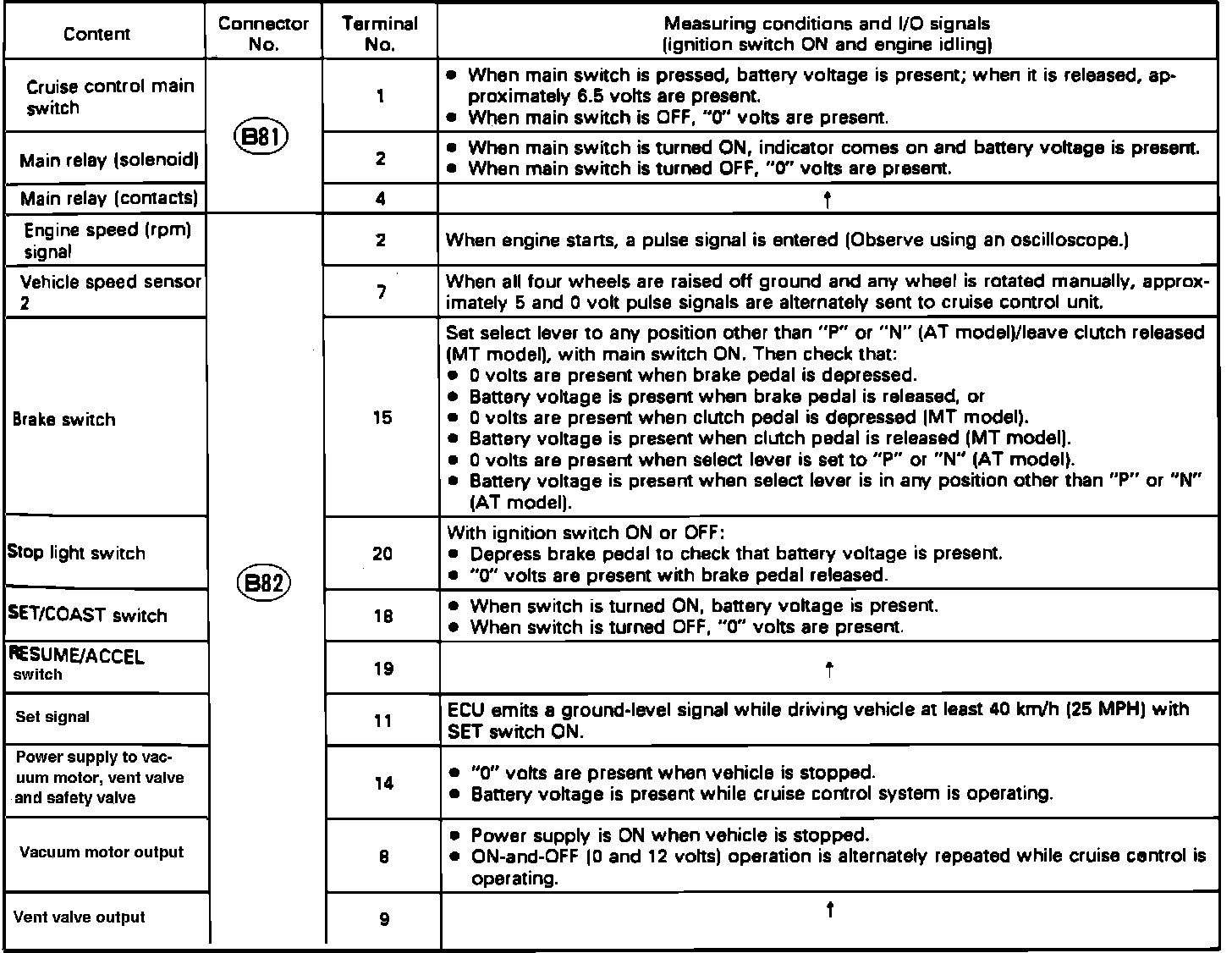

Fig. 18 Control Unit Pin Voltage Test. SVX:
Refer to Figs. 17 and 18, for pin voltage test.
Refer to Figs. 17 and 18, for pin voltage test.
