Service Specifications

SPECIFICATIONS AND SERVICE DATA

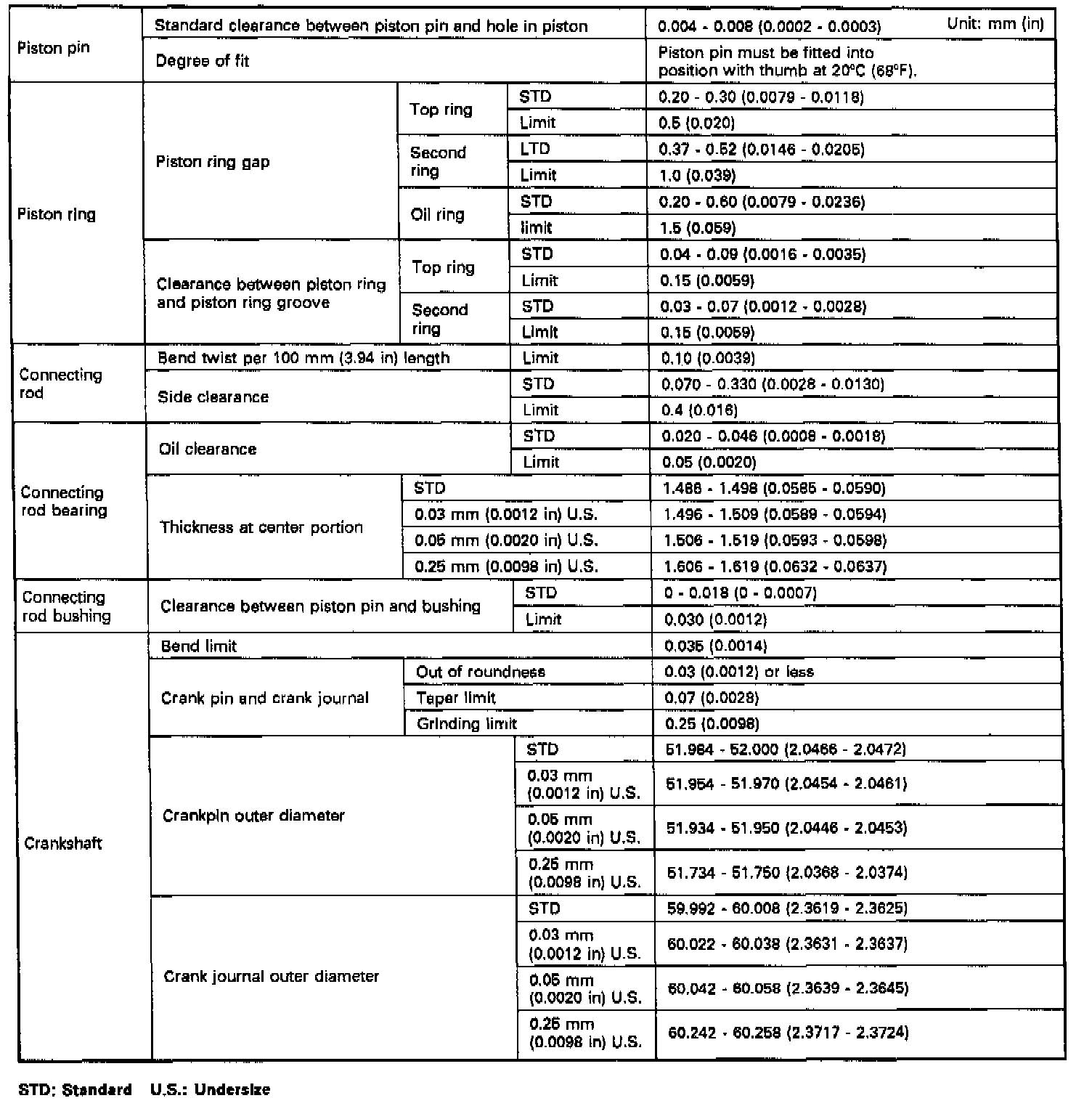

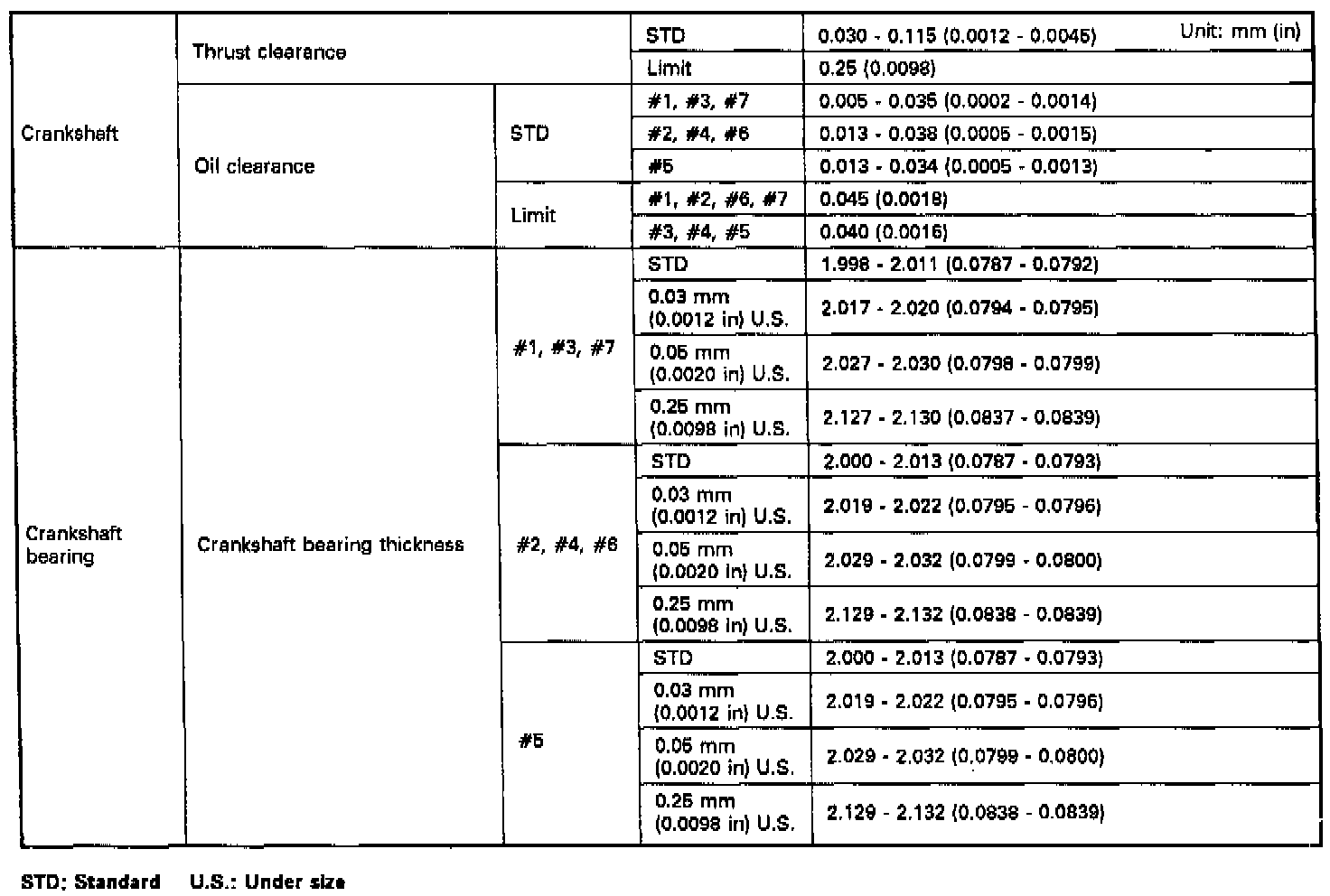

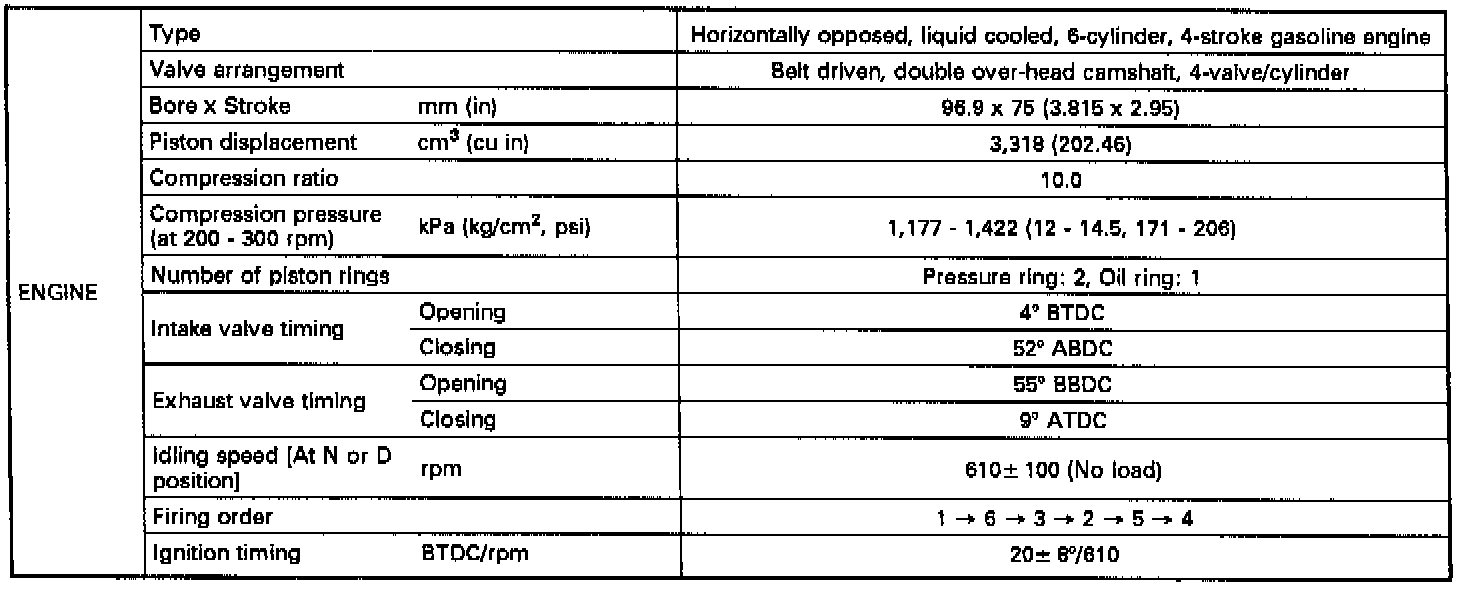

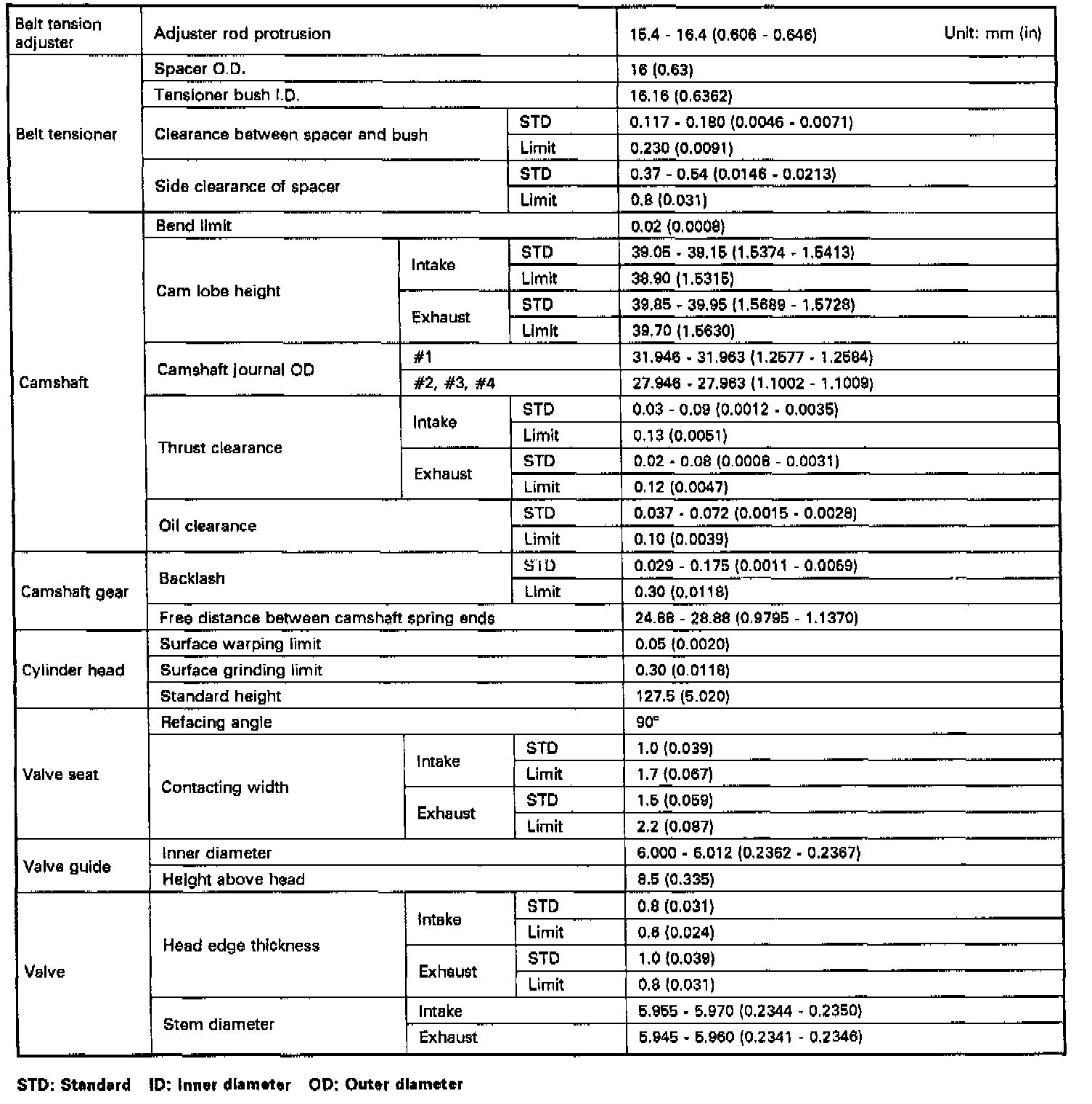

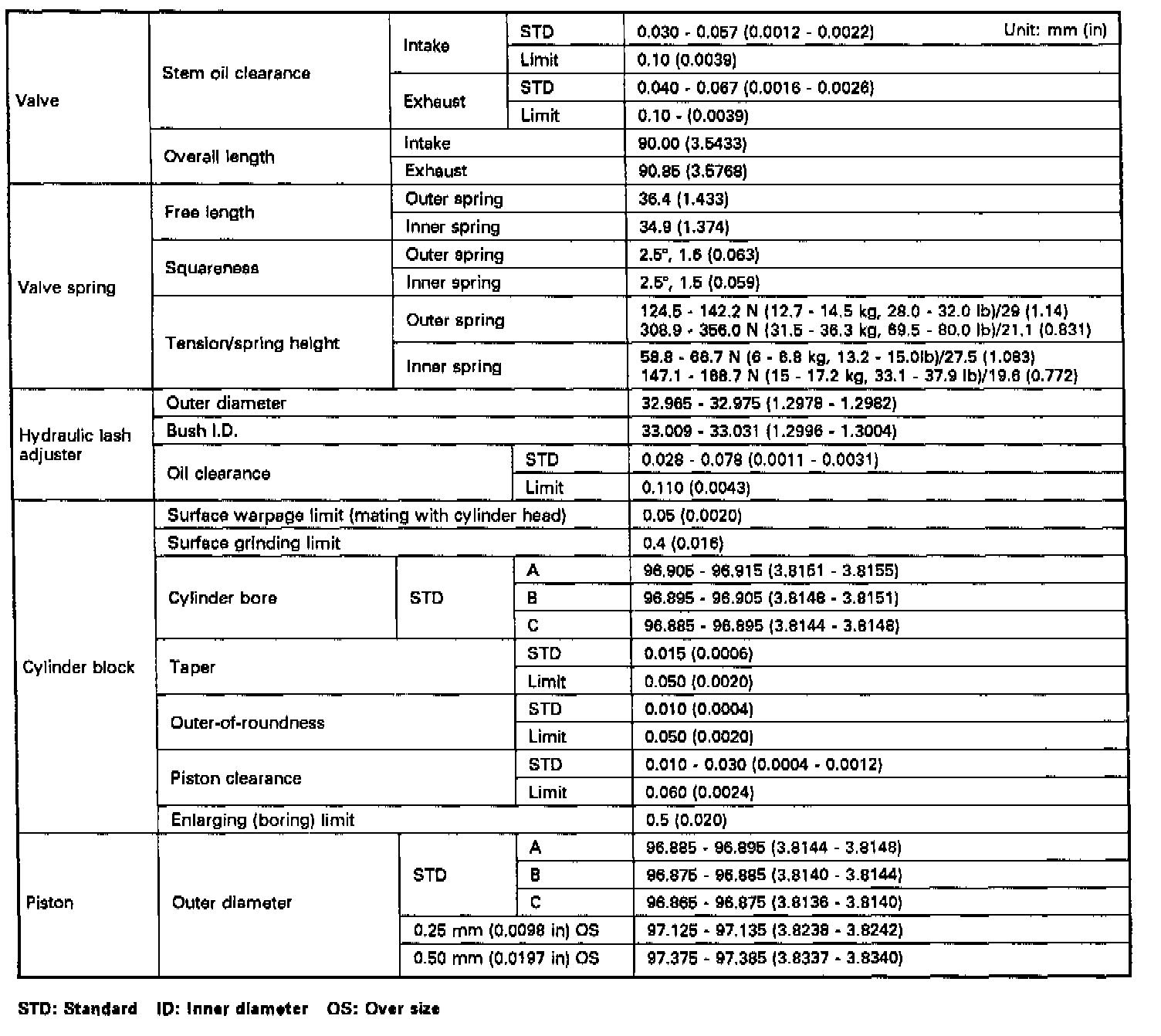

Engine Specifications

Part 1 Of 4:




Part 2 Of 4:




Part 3 Of 4:




Part 4 Of 4:





Engine Service Data

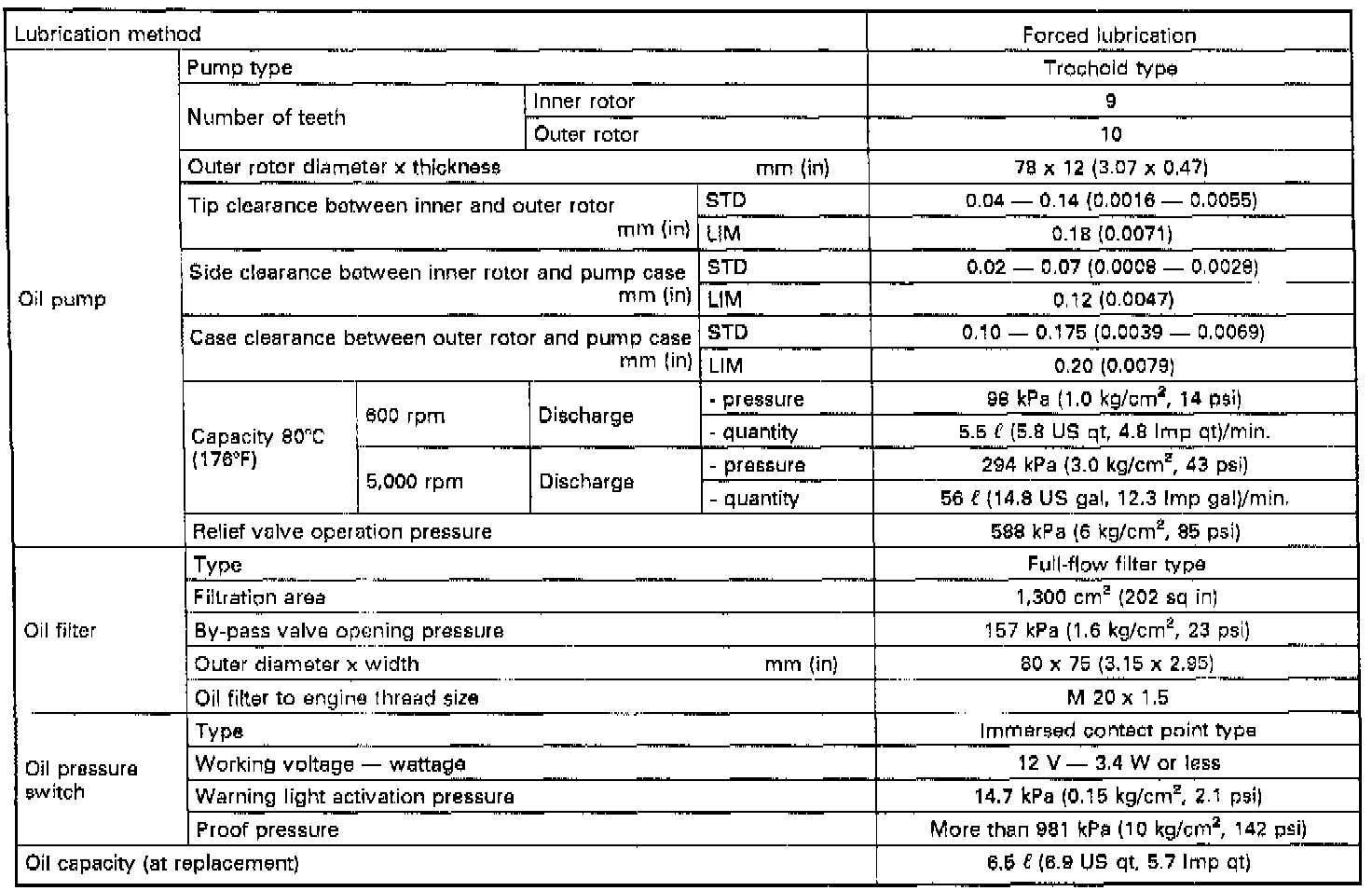

Lubrication System

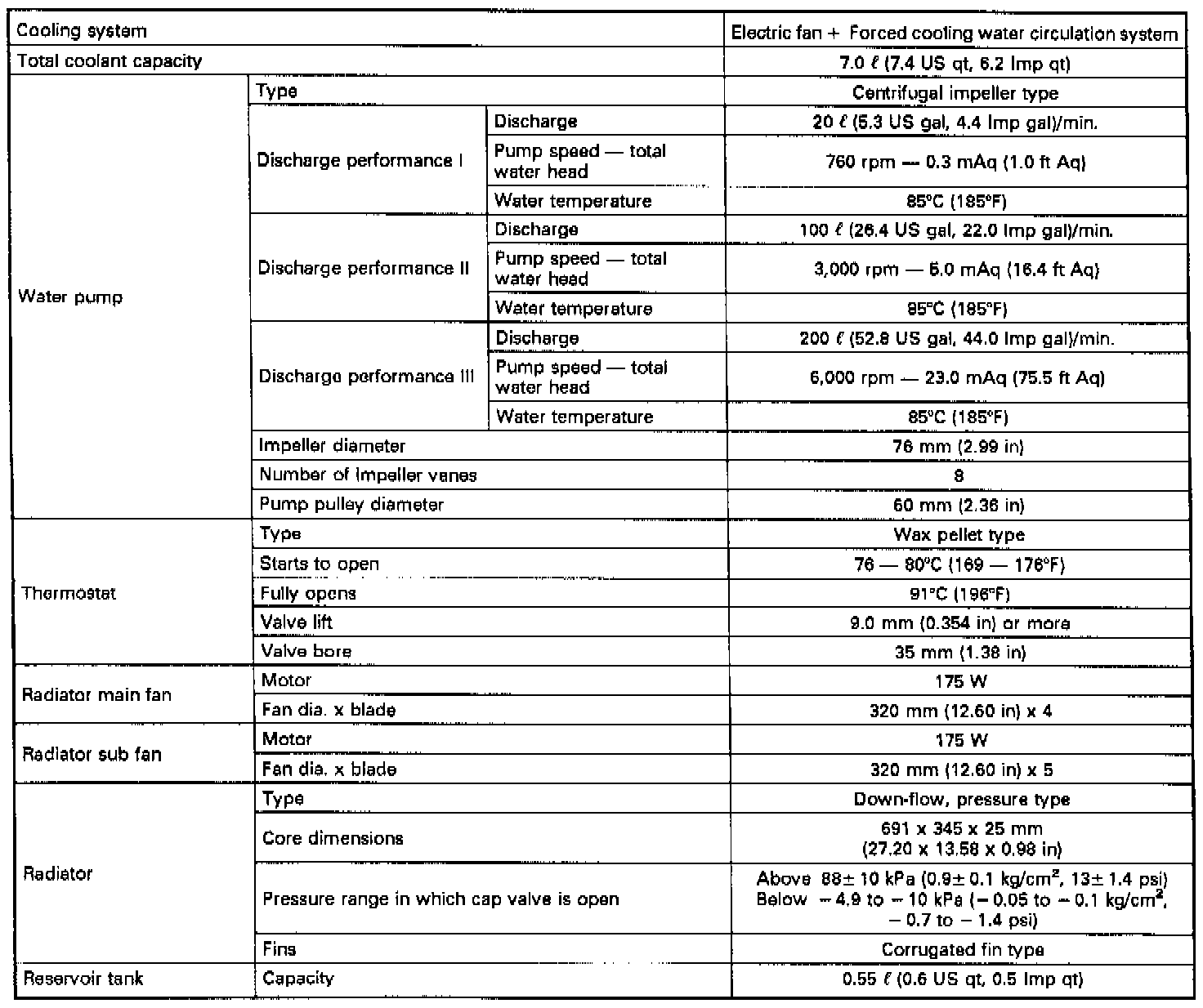

Cooling System
