Front Washer Switch Continuity Test
WARNING: This page is about a different car, the 1993 Subaru Legacy and 1993 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

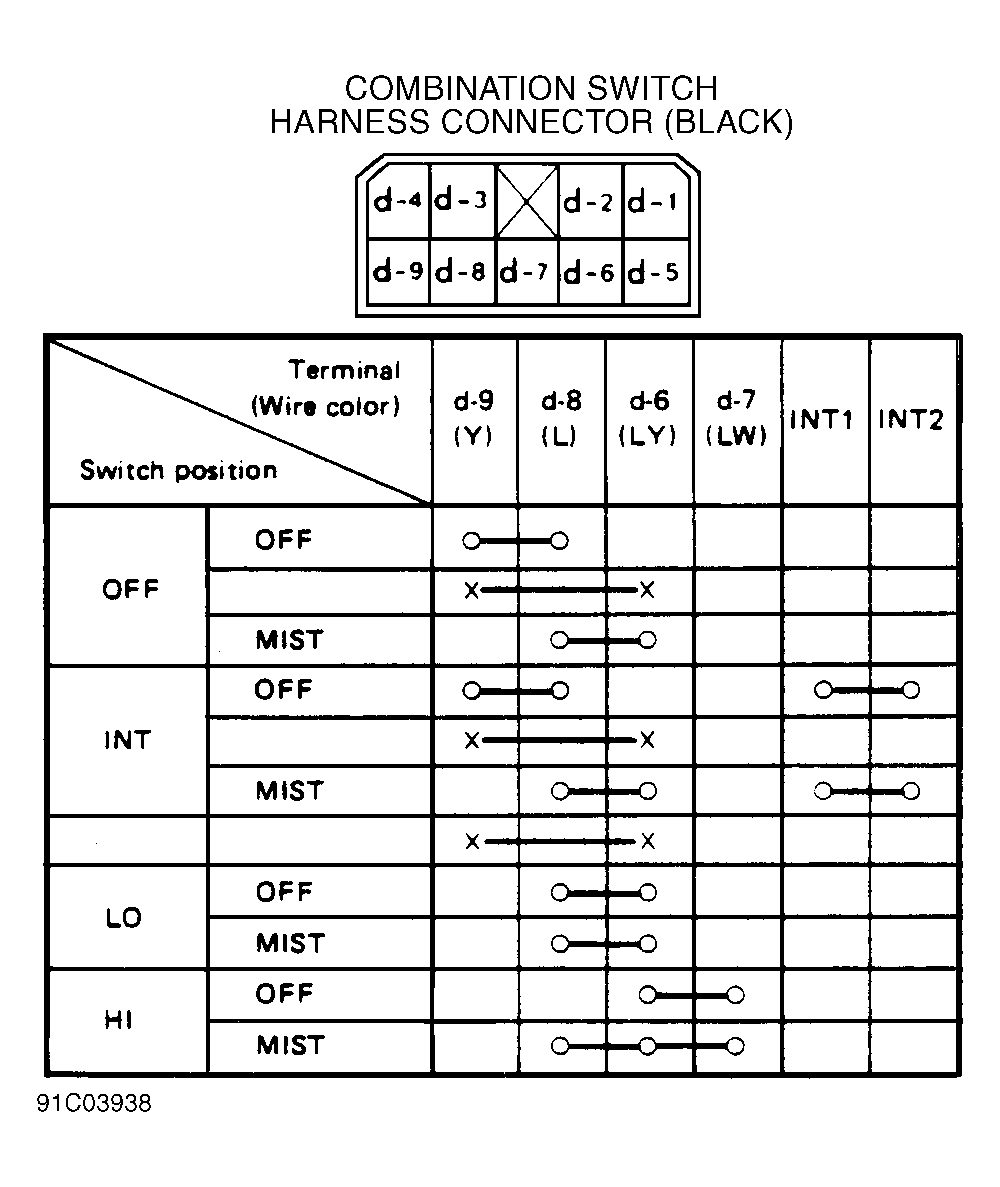

- Check continuity between terminals d-2 (White wire) and d-5 (Black wire) of combination switch connector. SeeFig 1 .
- Continuity should be present with washer switch turned on. Continuity should not be present when washer switch is turned off. Repair or replace as necessary.
