Engine Lubrication

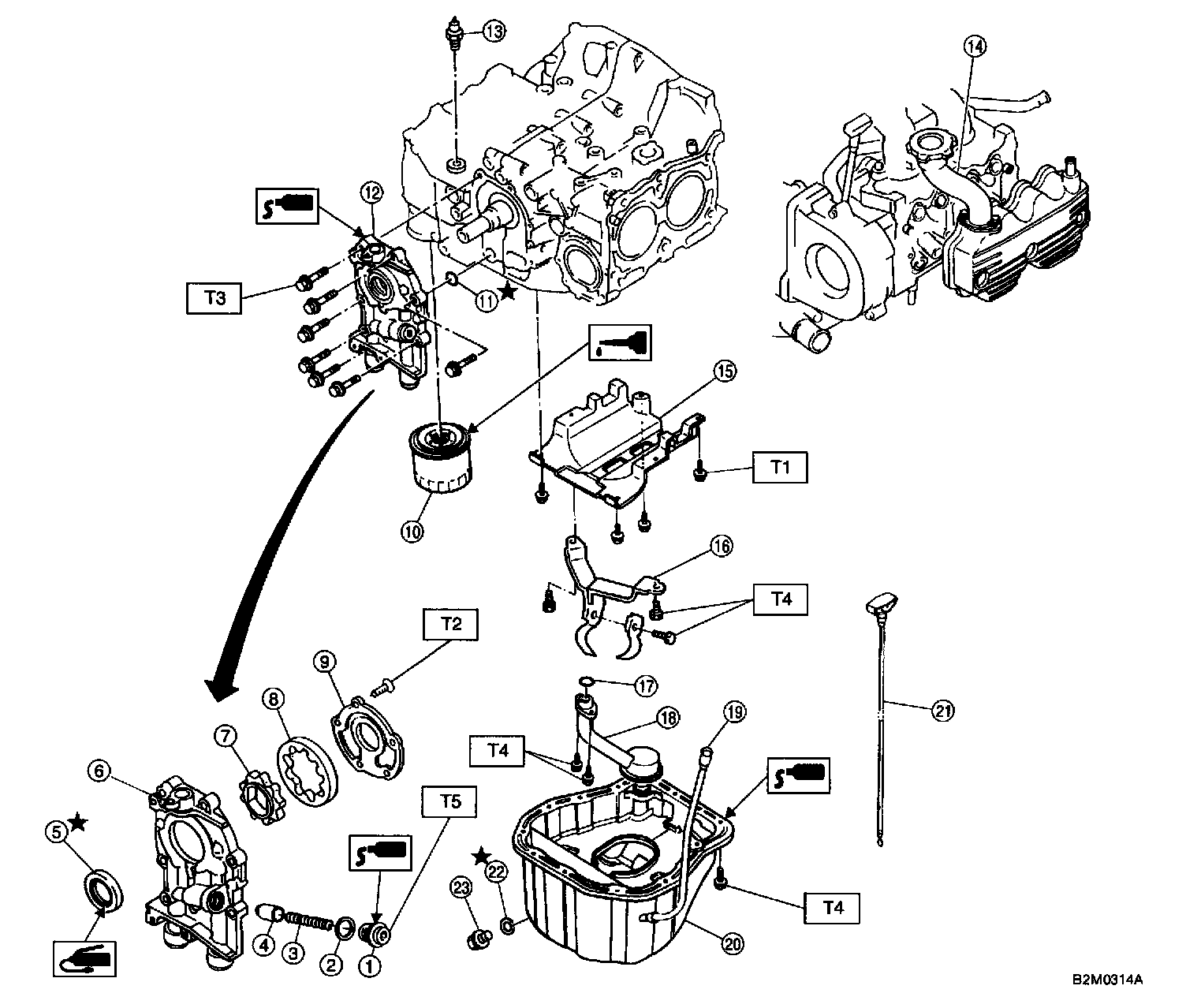

LUBRICATION SYSTEM






(1) Plug
(2) Washer
(3) Relief valve spring
(4) Relief valve
(5) Oil seal
(6) Oil pump case
(7) Inner rotor
(8) Outer rotor
(9) Oil pump cover
(10) Oil filter
(11) 0-ring
(12) Oil pump ASSY
(13) Oil pressure switch
(14) Oil filler duct
(15) Baffle plate
(16) Oil strainer stay
(17) 0-ring
(18) Oil strainer
(19) Oil level gauge guide
(20) Oil pan
(21) Oil level gauge
(22) Washer
(23) Drain plug

TIGHTENING TORQUE

T1: 5 N-m (0.5 kg-m, 3.6 ft-lb).
T2: 5+1-0 N-m (0.5+0.1-0 kg-m, 3.6+0.7-0 ft-lb).
T3: 6.4 N-m (0.65 kg-m, 4.7 ft-lb).
T4: 9.8 N-m (1.0 kg-m, 7.0 ft-lb).
T5: 44.1 +/- 3.4 N-m (4.5 +/-0.35 kg-m, 32.5 +/- 2.5 ft-lb).
