Torque Specifications

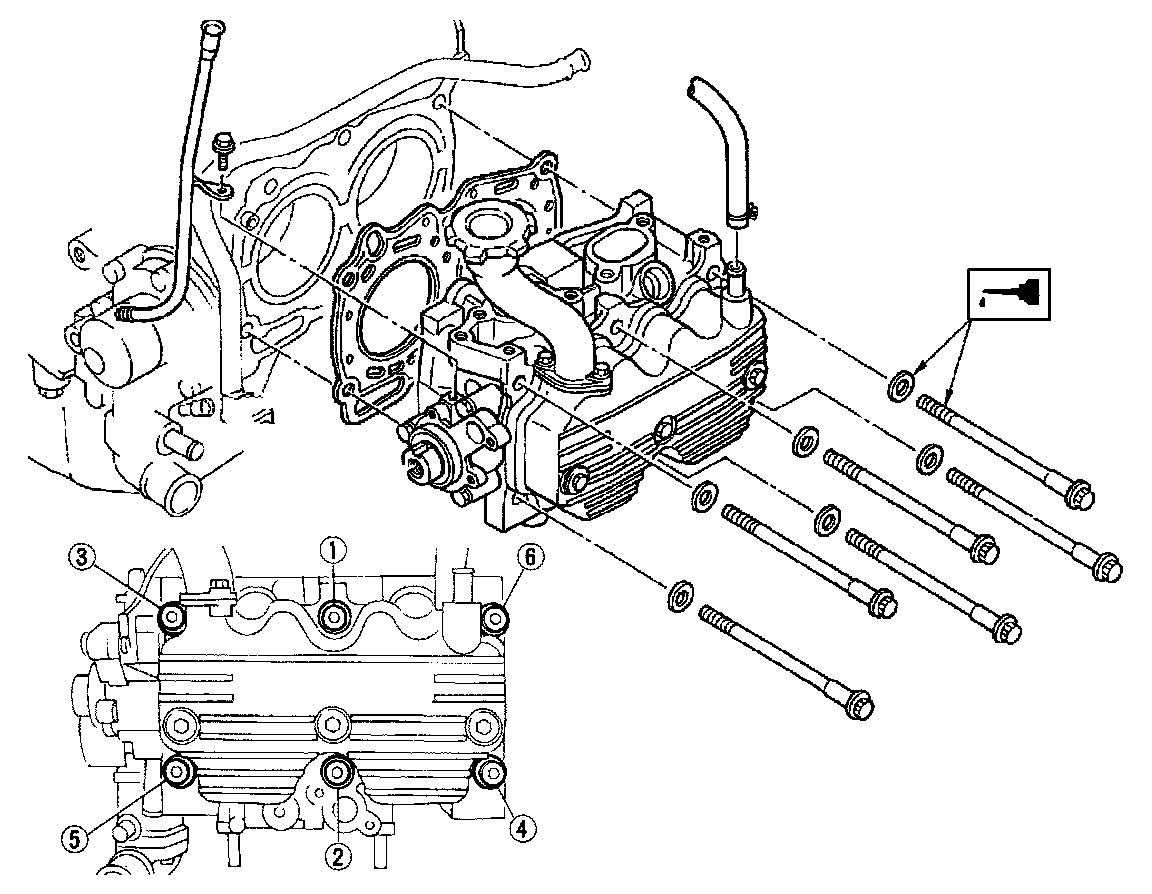

CYLINDER HEAD BOLT TORQUE/SEQUENCE





Note: Apply a coat of engine oil to washers and bolt threads.

1. Tighten all bolts to 29 N.m (3.0 kg-m, 22 ft-lb) in numerical order.
2. Then tighten all bolts to 69 N.m (7.0 kg-m, 51 ft-lb) in numerical order.
3. Back off all bolts by 180° first; back them off by 180° again.
4. Tighten bolts (1) and (2) to 34 N.m (3.5 kg-m, 25 ft-lb).
5. Tighten bolts (3), (4), (5) and (6) to 15 N.m (1.5 kg-m, 11 ft-lb).
6. Tighten all bolts by 80° to 90° in numerical sequence.

CAUTION: Do not tighten bolts more than 90°.

7. Further tighten all bolts by 80° to 90° in numerical sequence.

CAUTION: Ensure that the total "re-tightening angle" does not exceed 180°.

VALVE ROCKER ASSEMBLY TORQUE/SEQUENCE

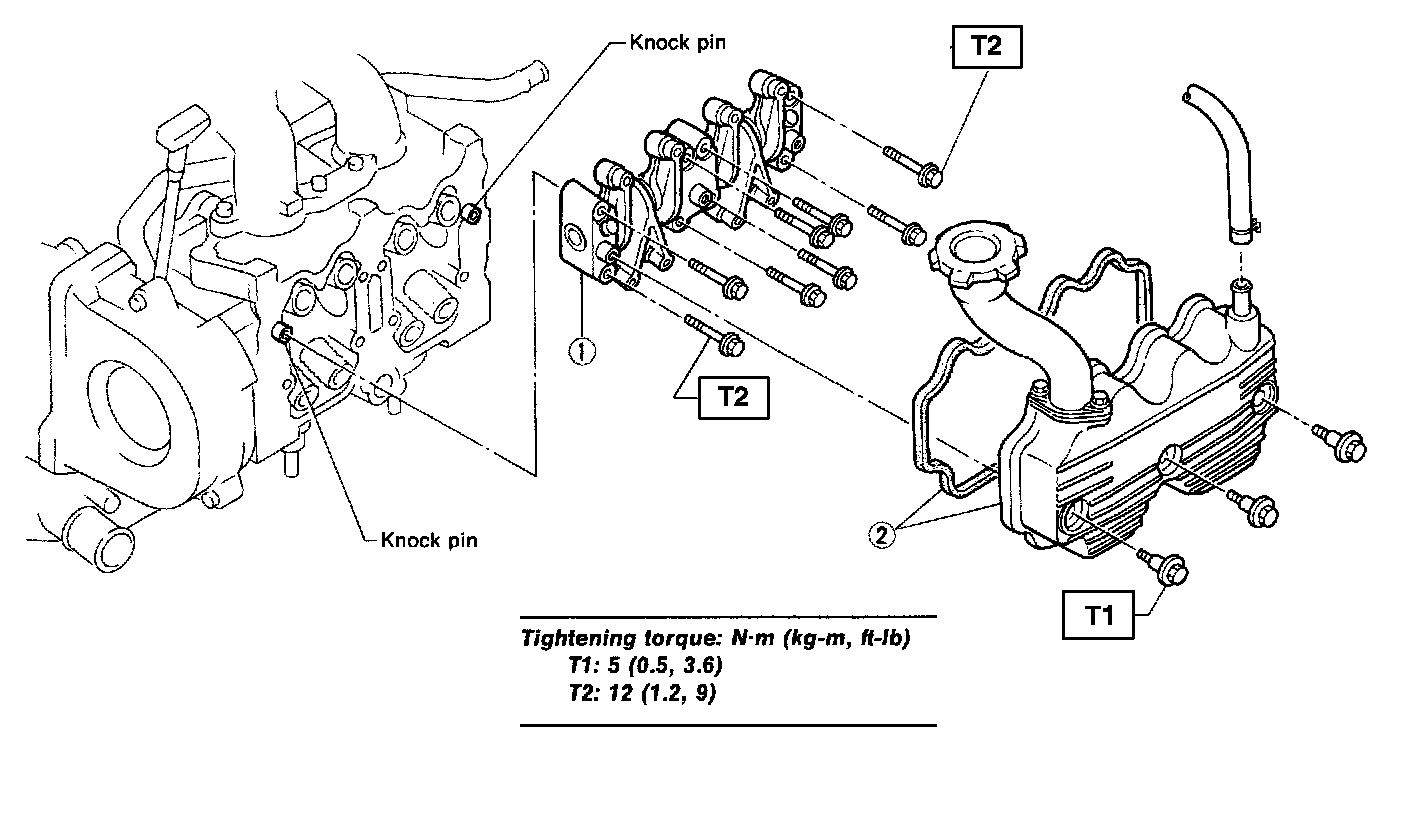

Valve Rocker Assembly:

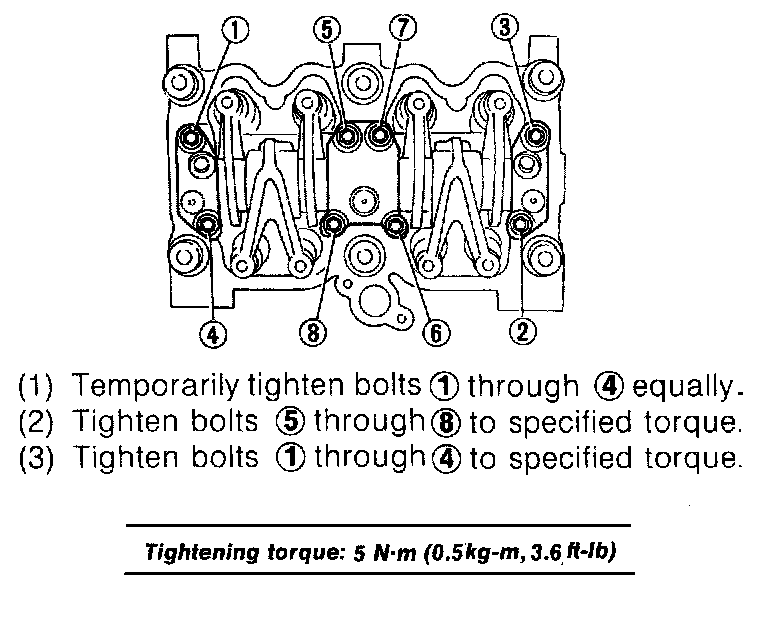

Valve Rocker Assembly Torque Sequence:

1. Temporarily tighten bolts (1) through (4) equally.
2. Tighten bolts (5) through (8) to 12 N.m (1.2 kg-m, 9 ft-lb)
3. Tighten bolts (1) through (4) to 12 N.m (1.2 kg-m, 9 ft-lb)
