Anti-Lock Brake System - Except 5.3 Abs Or Abs/TCS: Testing: Notes

NOTE: For additional voltage specifications, see ABS control unit pin voltage chart. See Fig 1 . To identify ABS control unit terminals, see Fig 2 .

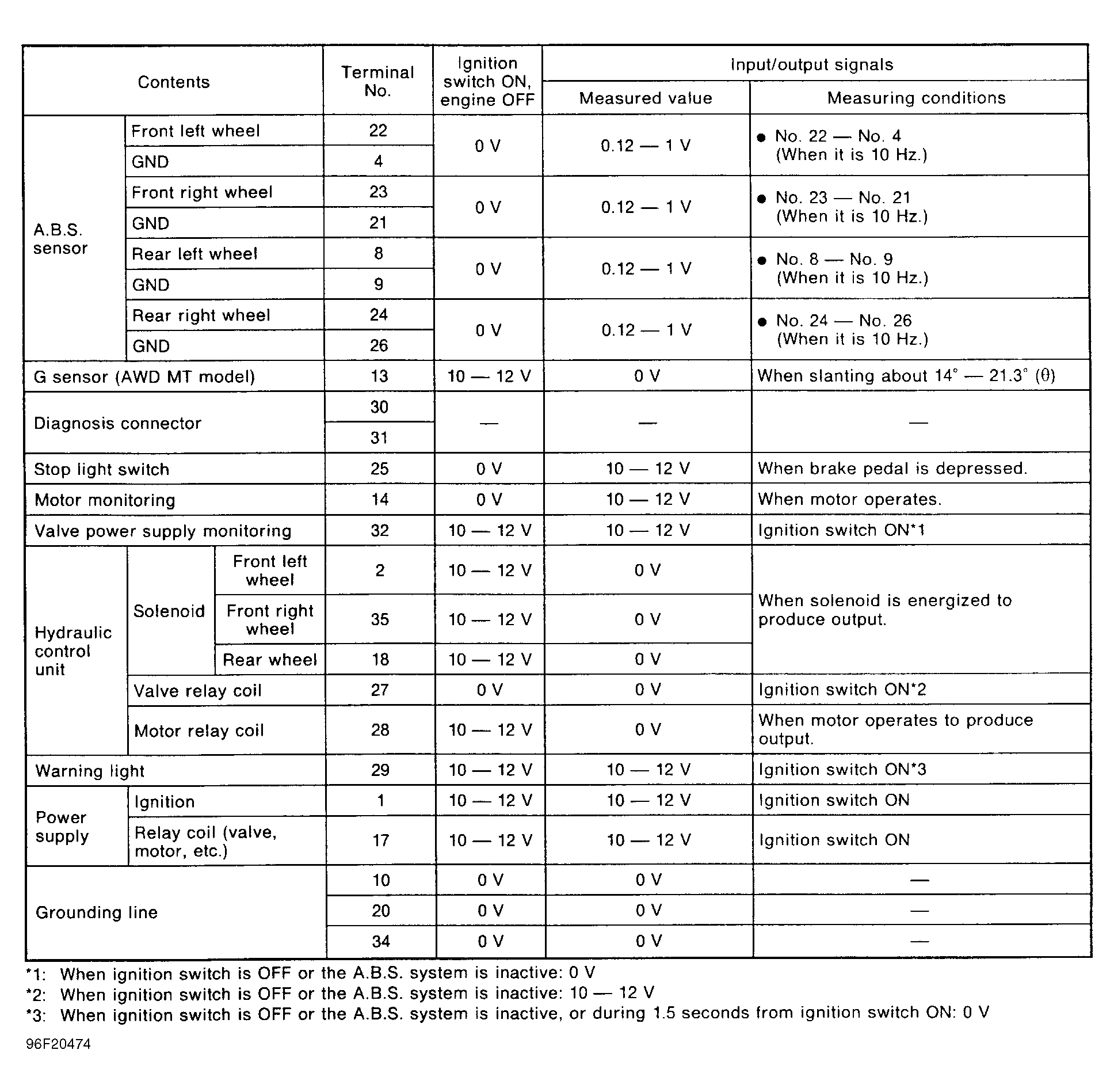

Fig 1: ABS Control Unit Pin Voltage Chart

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying ABS Control Unit Terminals

Courtesy of SUBARU OF AMERICA, INC.
