Cruise Control Module: Testing and Inspection

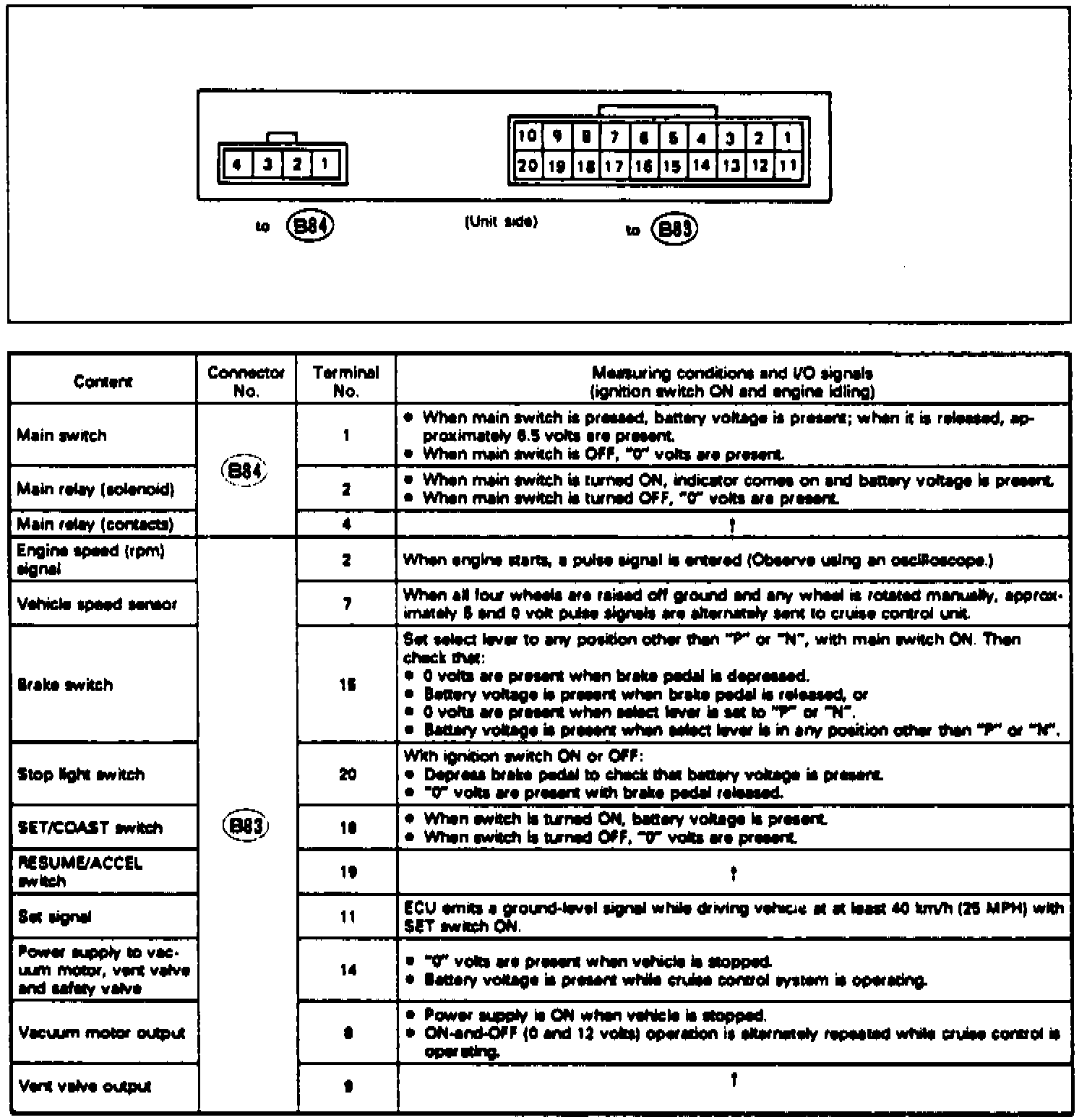

Fig. 26 Control Unit Pin Voltage Test:
Refer to
Fig. 26
, for pin voltage test.
