Cruise Control Module: Testing and Inspection

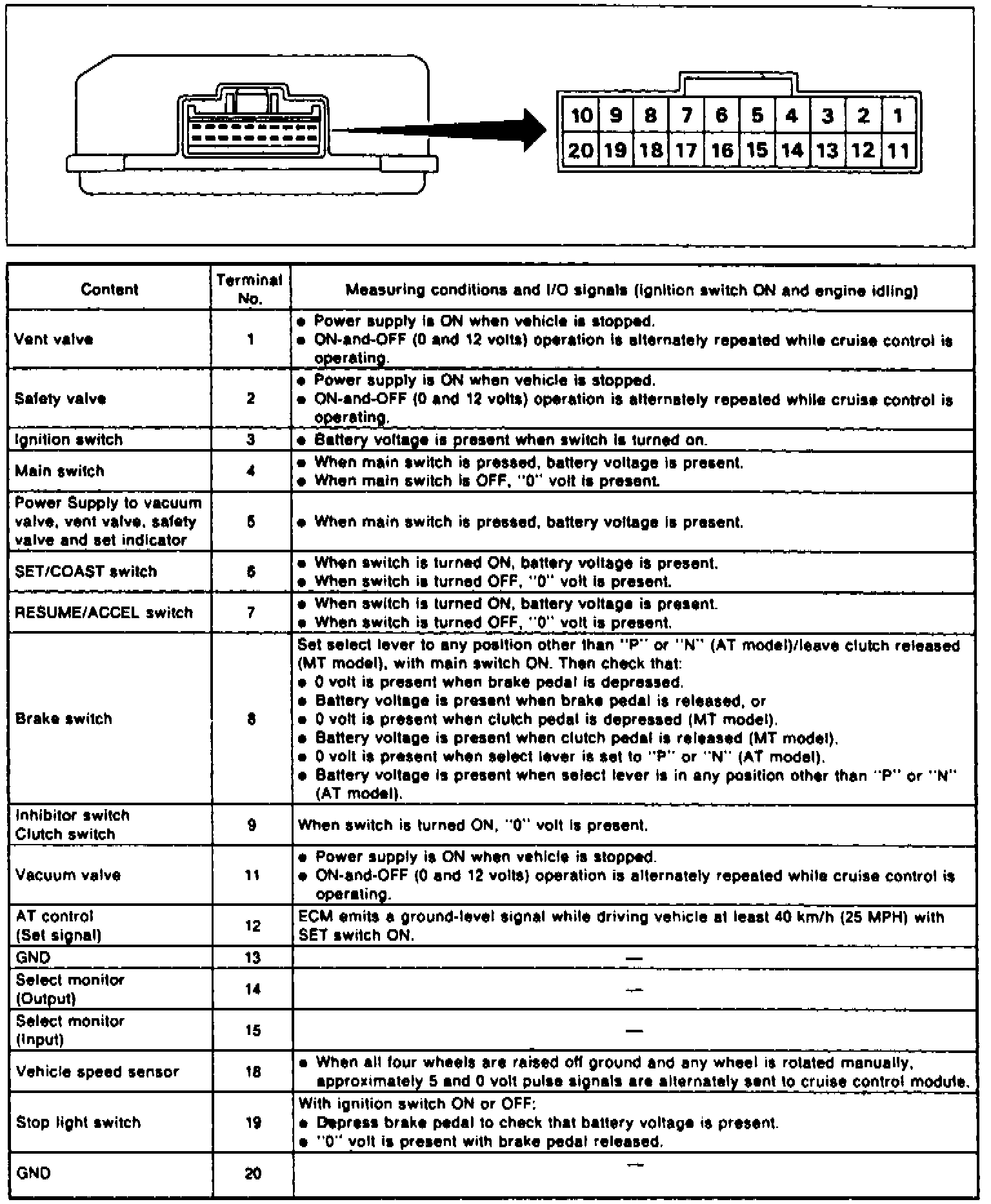

Fig. 23 Control Unit Pin Voltage Test:
Refer to
Fig. 23
, for pin voltage test.
