Diagnostic Check Flow Chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

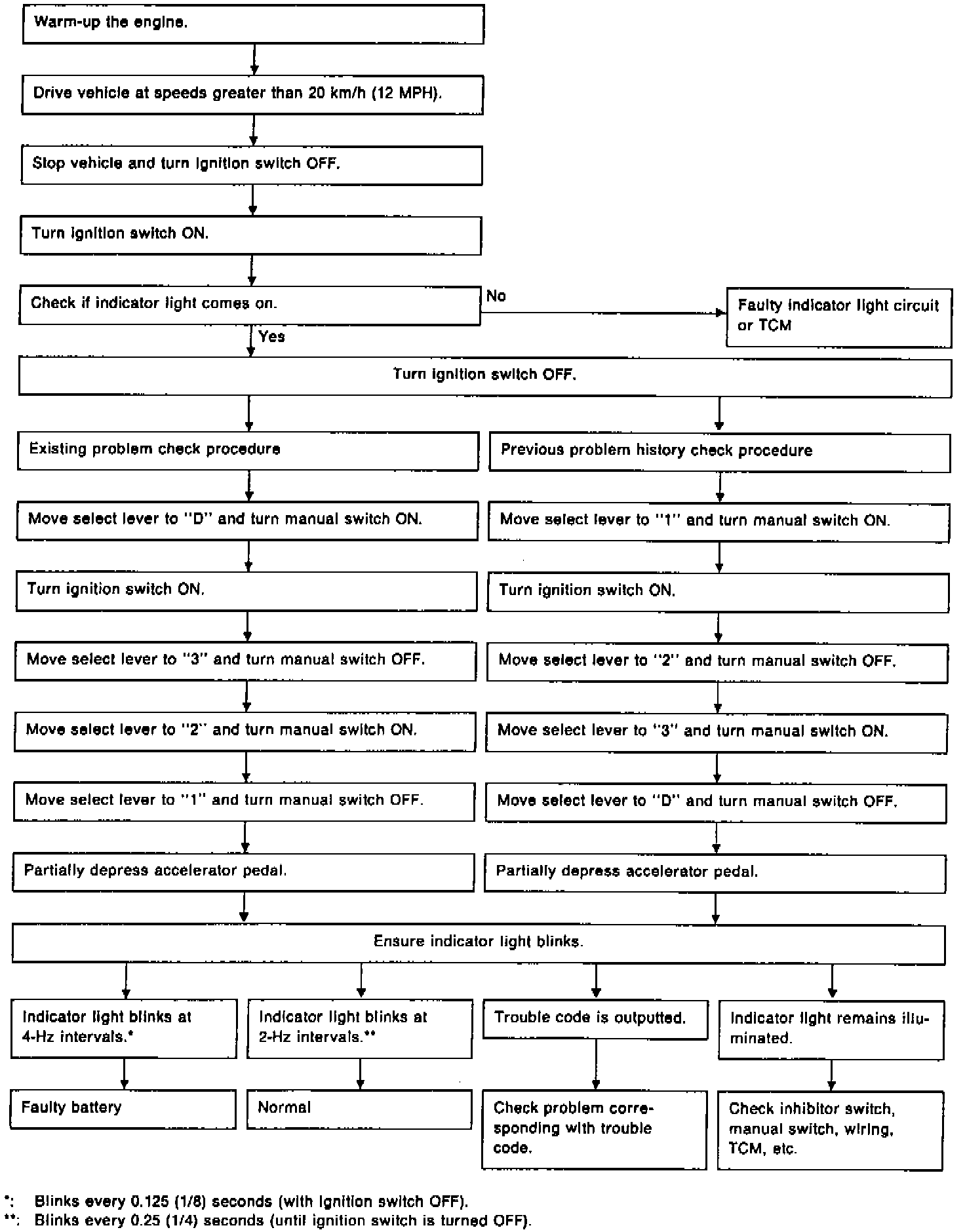

Diagnostic Check Flow Chart
Diagnostic Check Flow Chart (with Select Monitor):
