Electronic Brake Control Module: Testing and Inspection

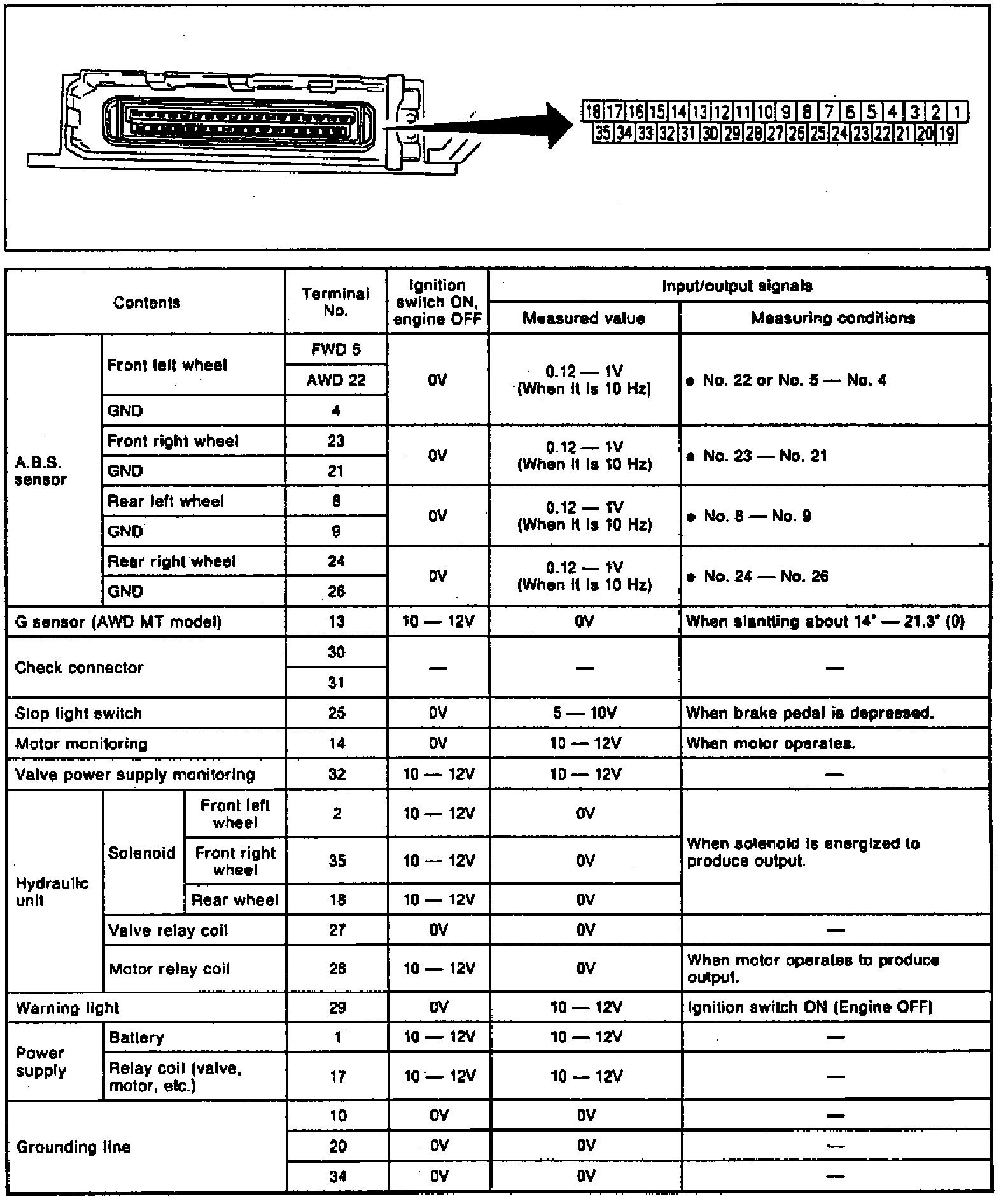

ABS Control Module Pin Voltage Specs.:





Refer to Fig. 18, for control module input/output voltage signals.
