Service Specifications

SPECIFICATIONS AND SERVICE DATA

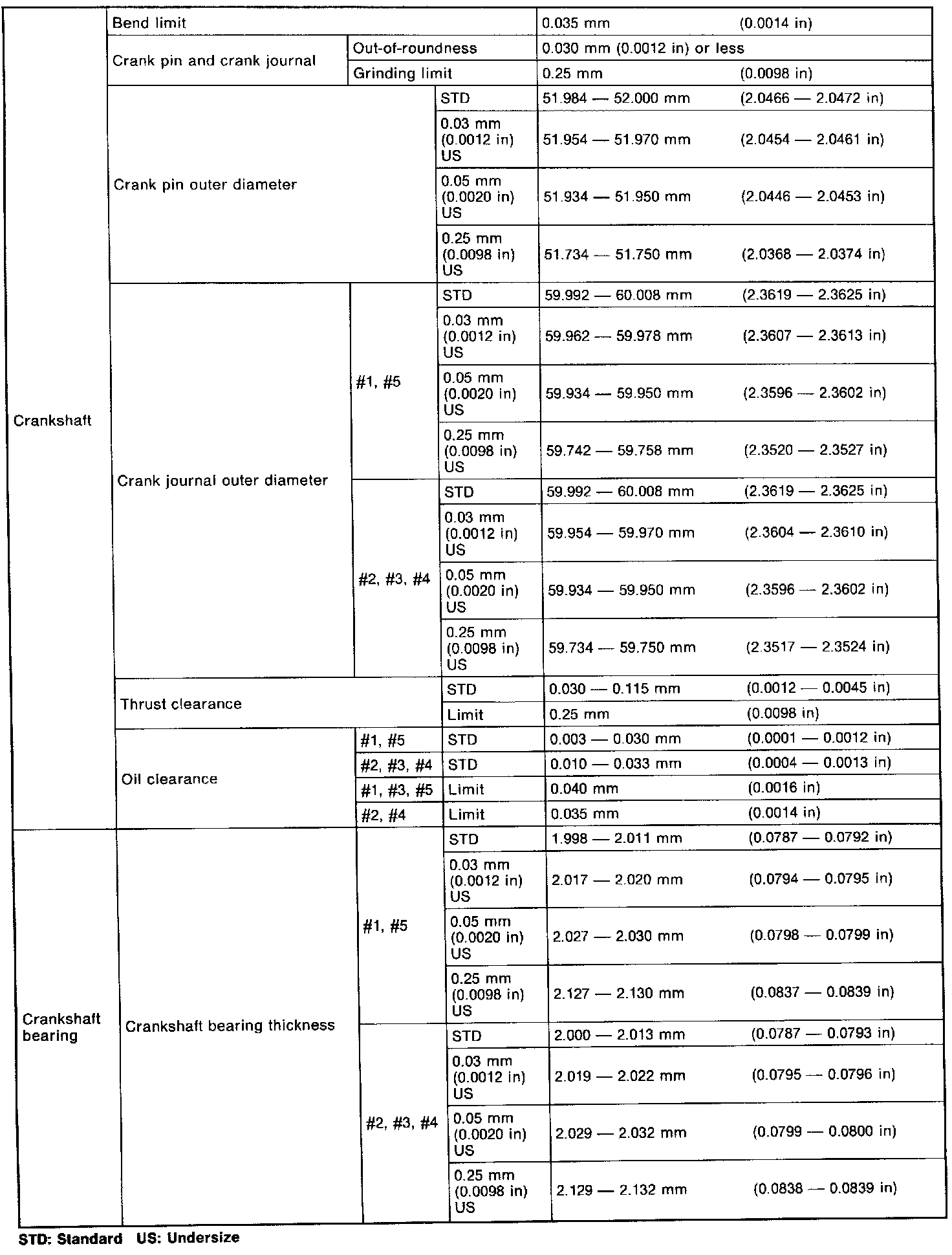

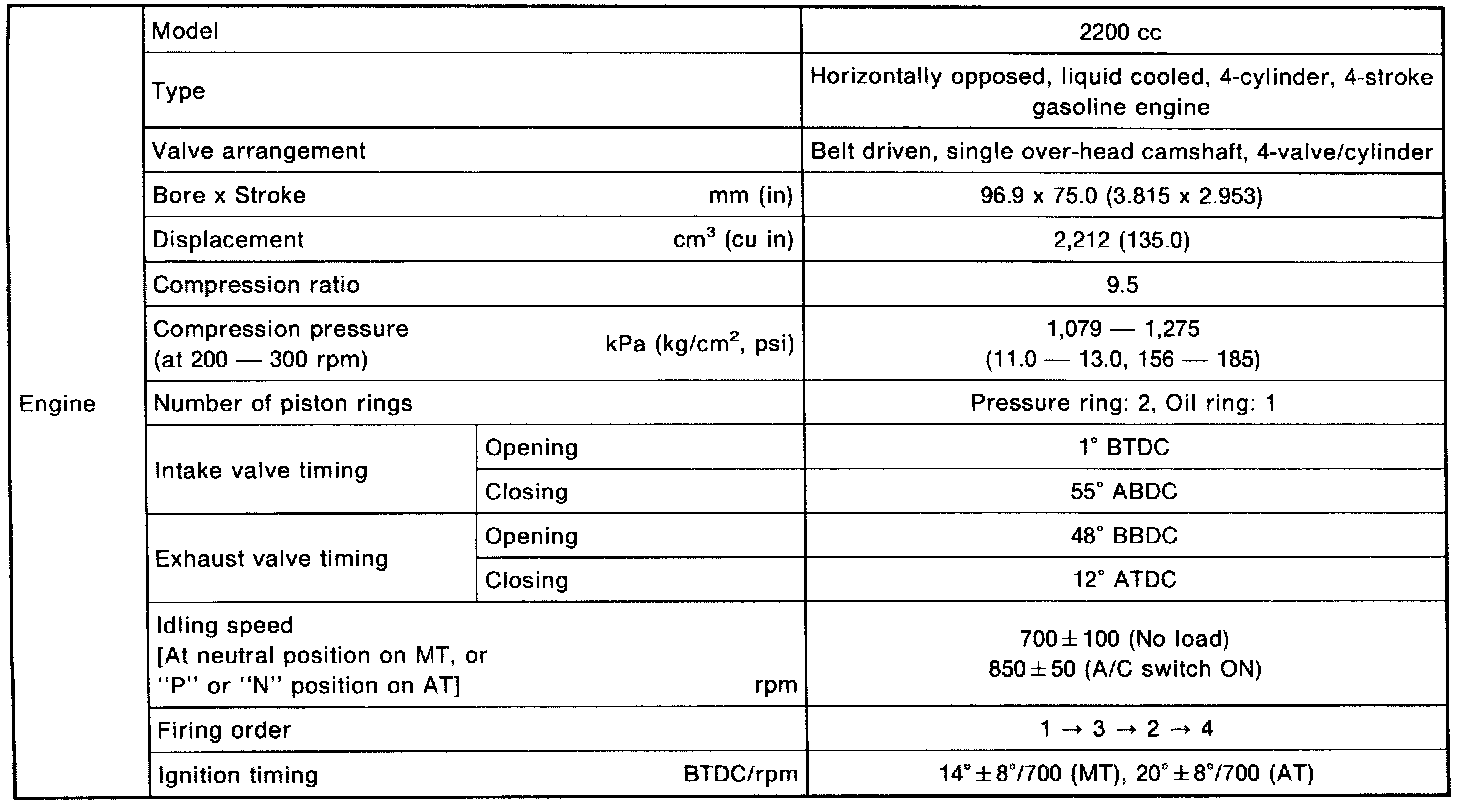

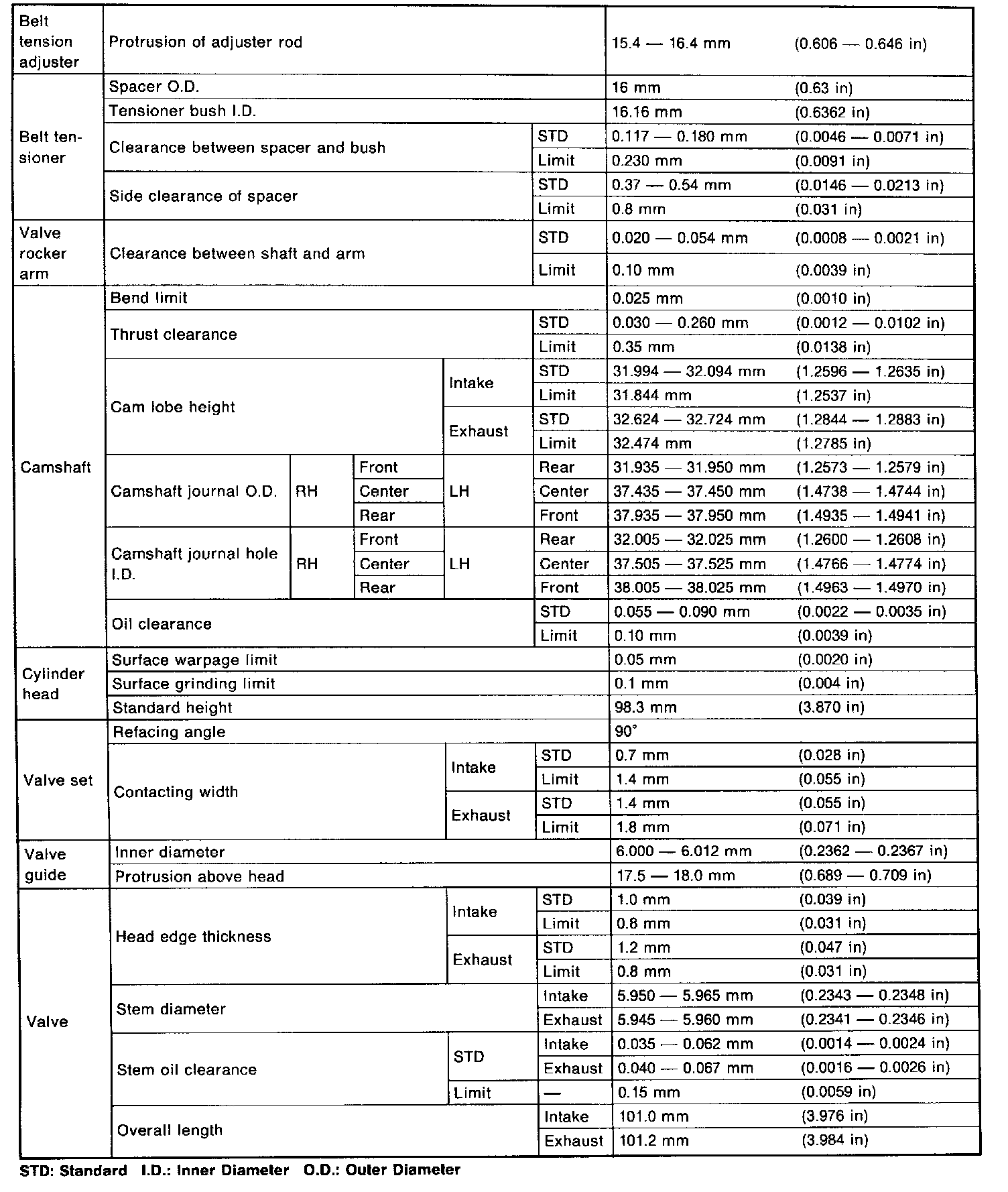

Engine Specifications

Part 1 Of 3:





Part 2 Of 3:





Part 3 Of 3:

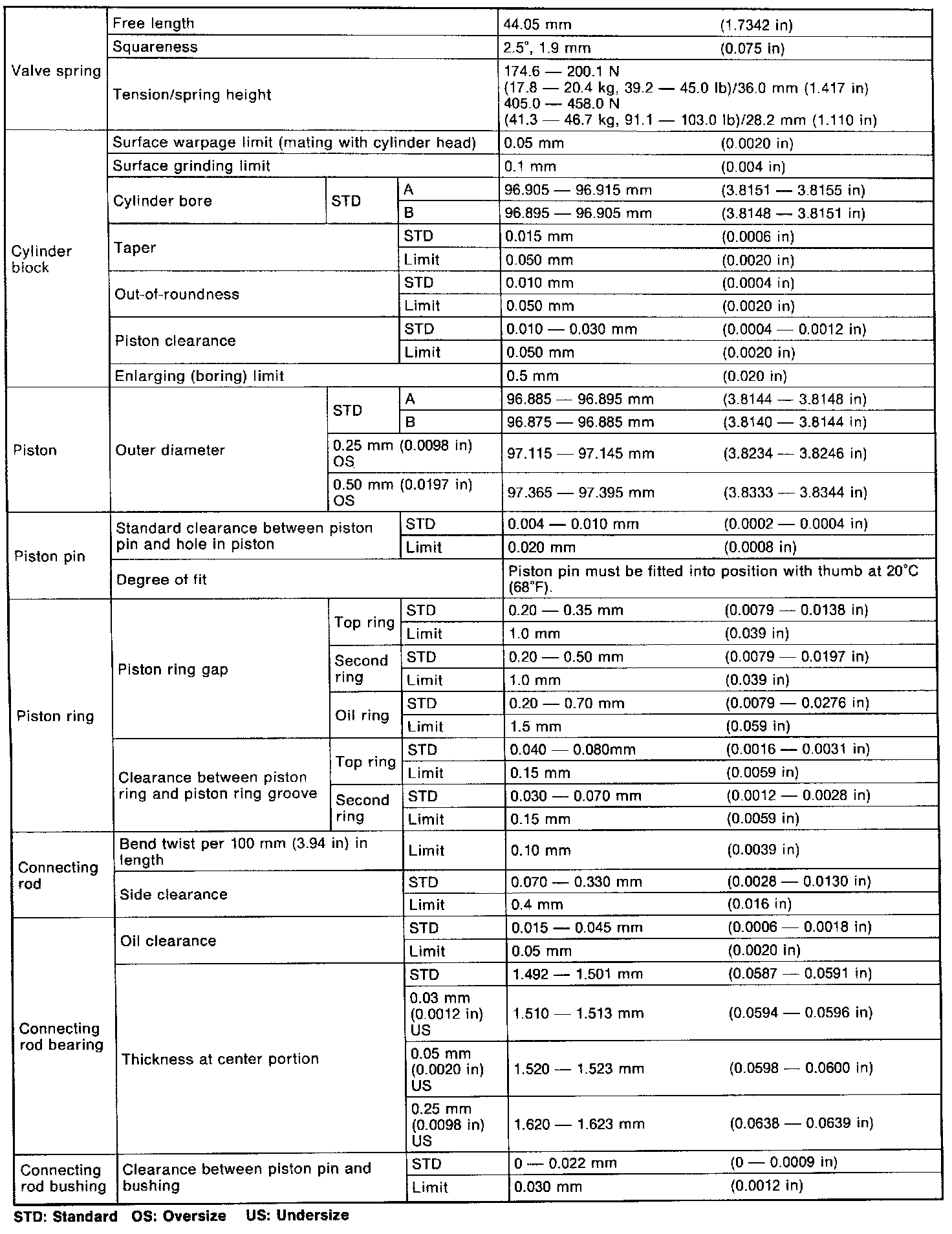

Engine Service Data

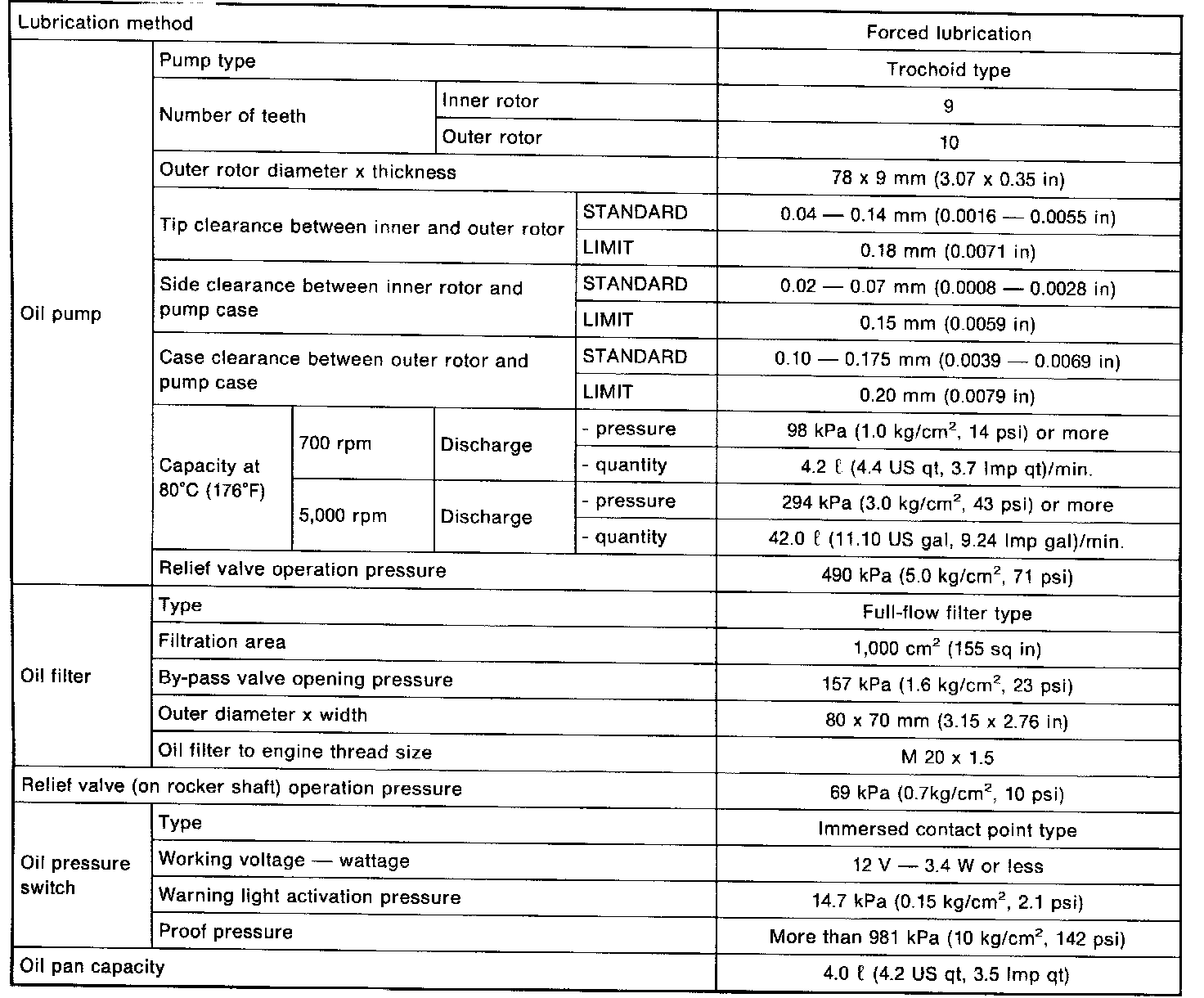

Lubrication System

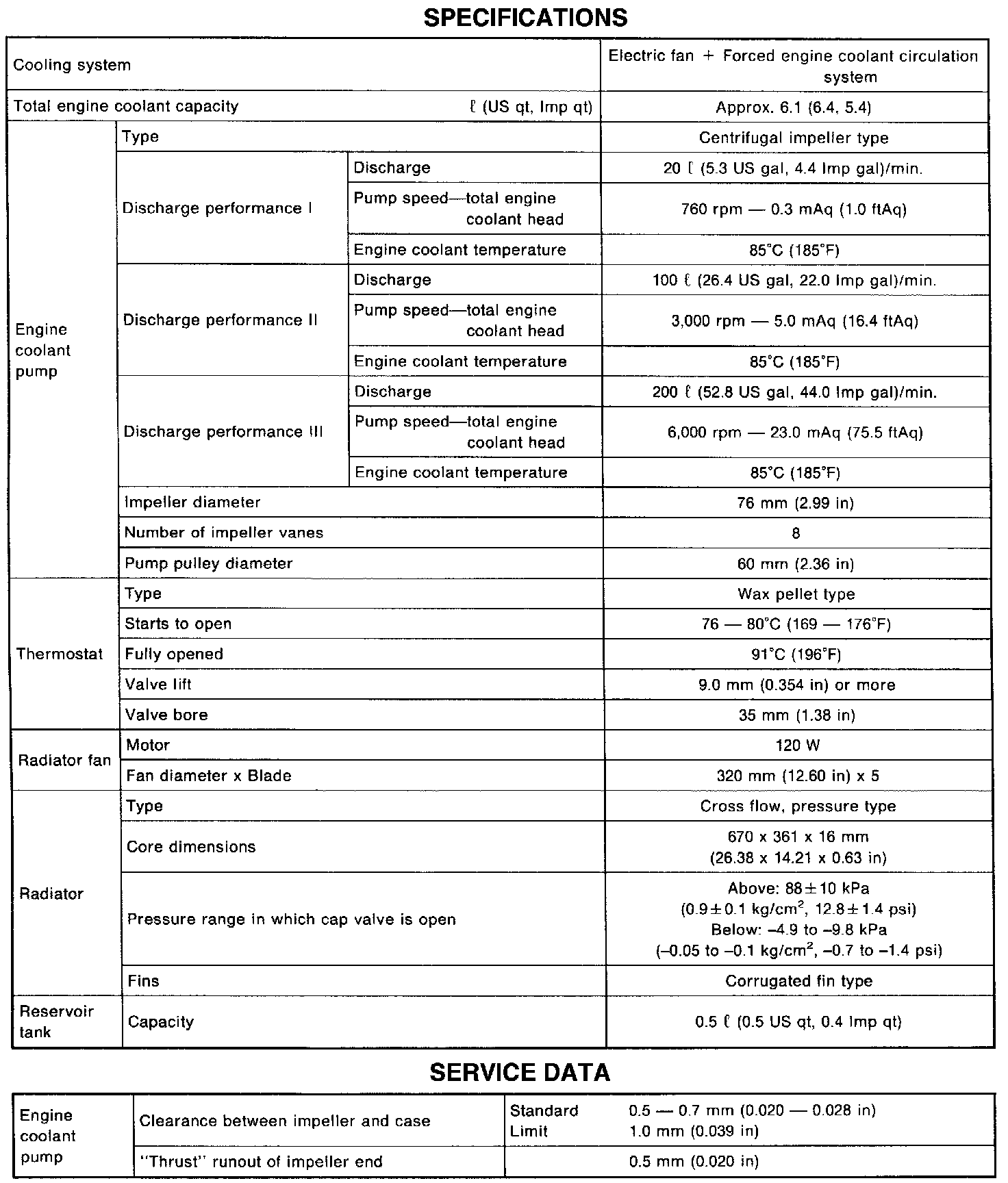

Cooling System
