Fuel Tank

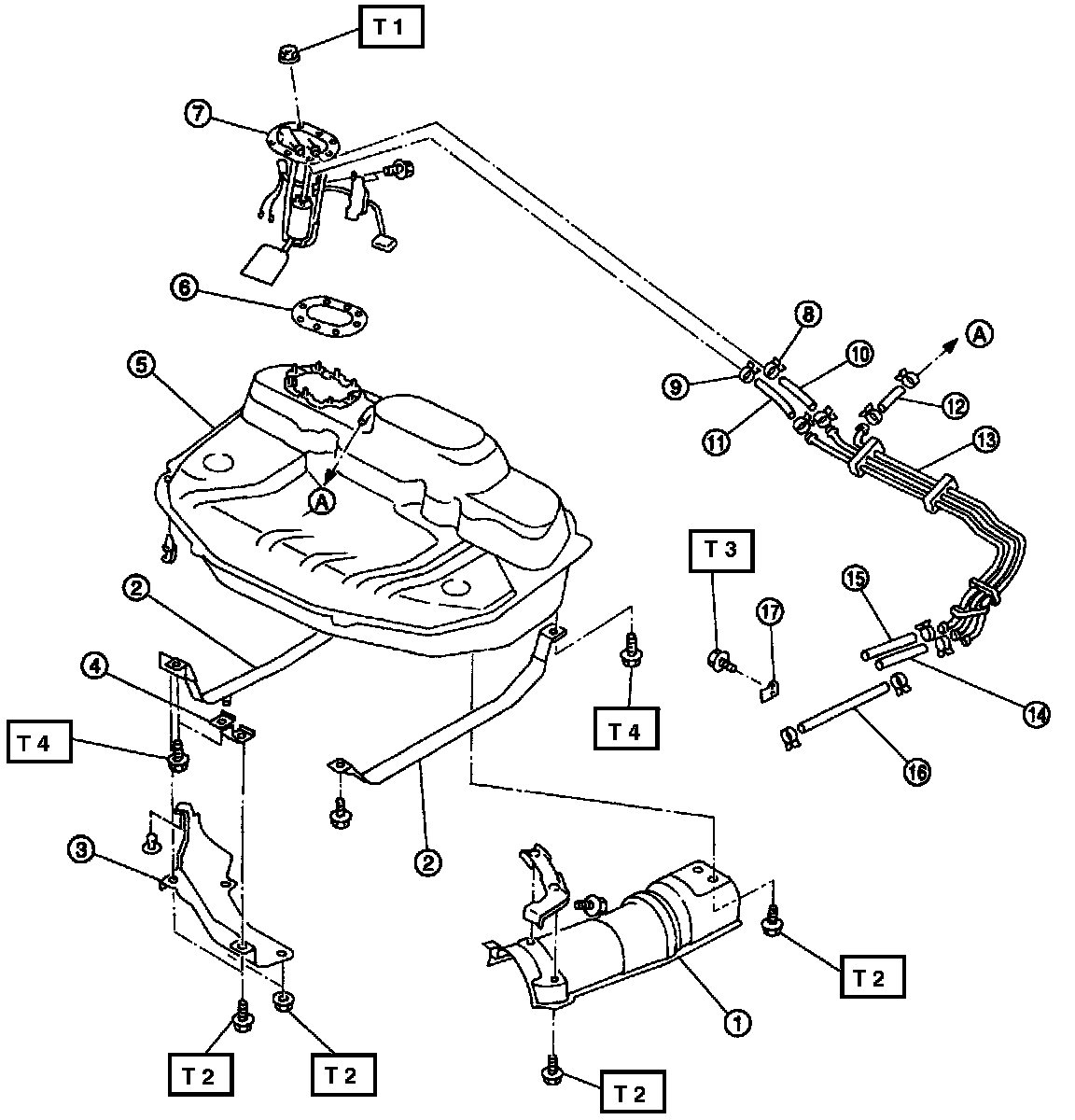

FUEL TANK / FWD MODEL





1. Heat Seated Cover
2. Fuel Tank Band
3. Protector
4. Protector Bracket
5. Fuel Tank
6. Fuel Pump Gasket
7. Fuel Pump Assembly
8. Clamp
9. Clip
10. Fuel Delivery Hose A
11. Fuel Return Hose A
12. Evaporation Hose A
13. Fuel Pipe Assembly
14. Fuel Delivery Hose B
15. Fuel Return Hose B
16. Evaporation Hose B
17. Plate

Tightening Torque / N.m (ft-lb)
T1: 4.4 ± 1.5 (3.3 ± 1.1)
T2: 7.4 ± 0.2 (5.4 ± 1.4)
T3: 18 ± 5 (13.0 ± 3.6)
T4: 33 ± 10 (25 ± 7)
