Component Tests and General Diagnostics

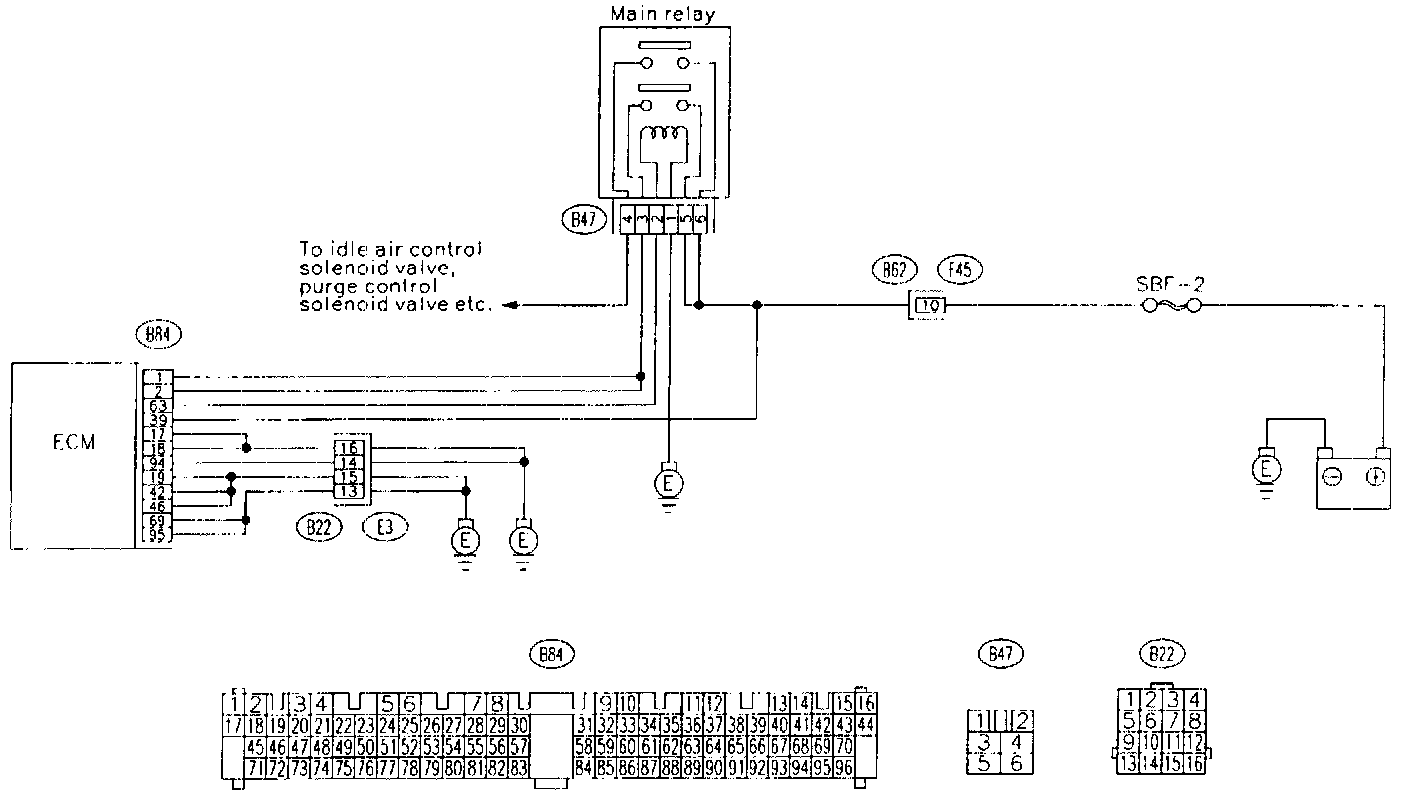

WIRING DIAGRAM

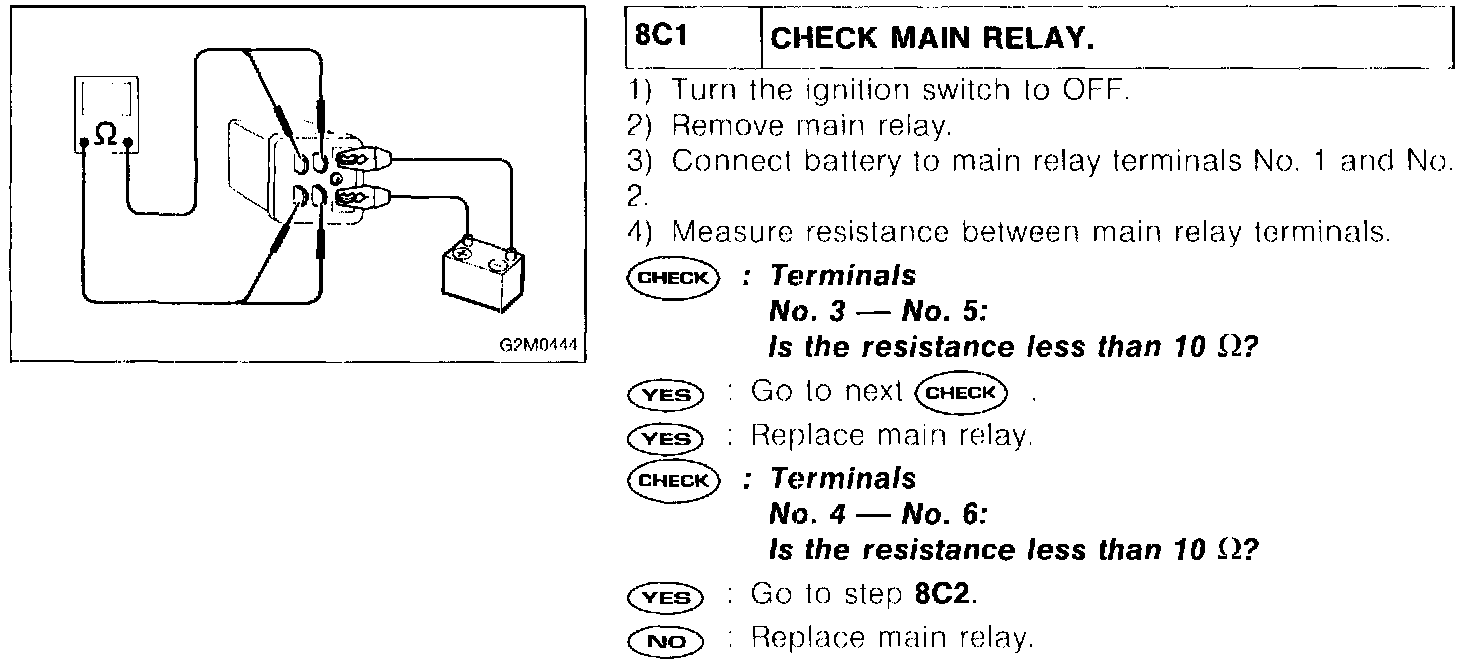

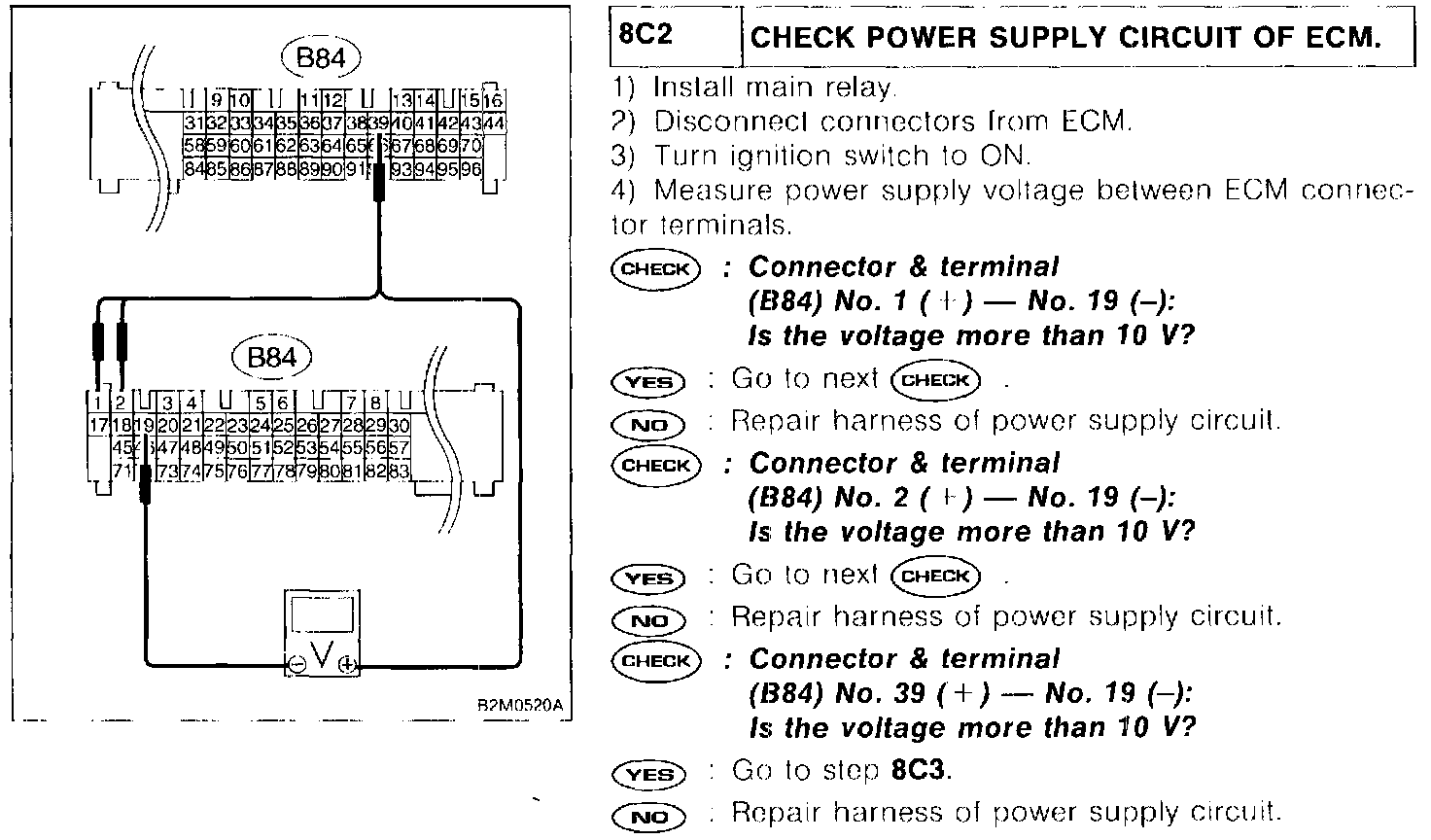

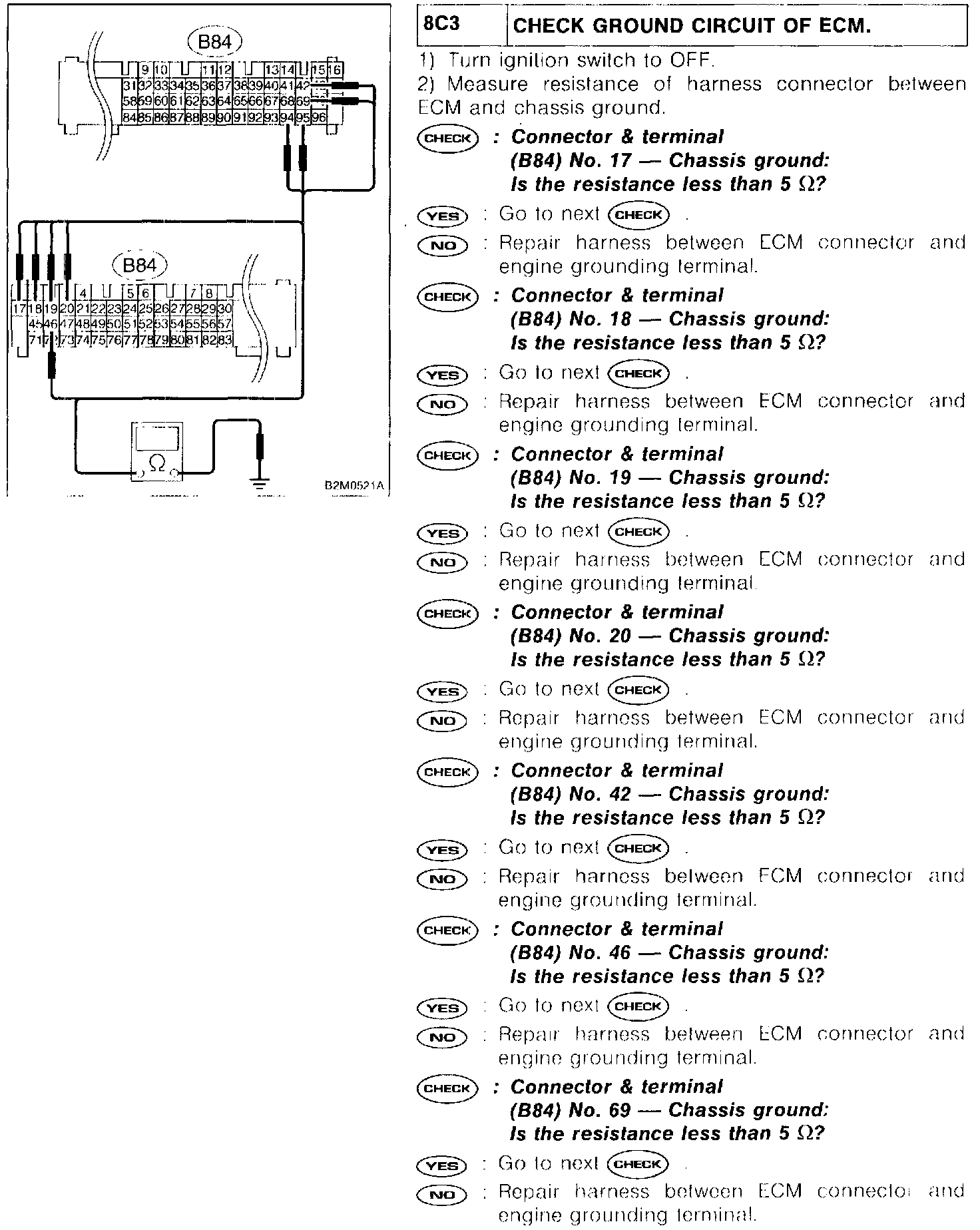

PROCEDURE
















CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.
