Ignition Control System Inspection

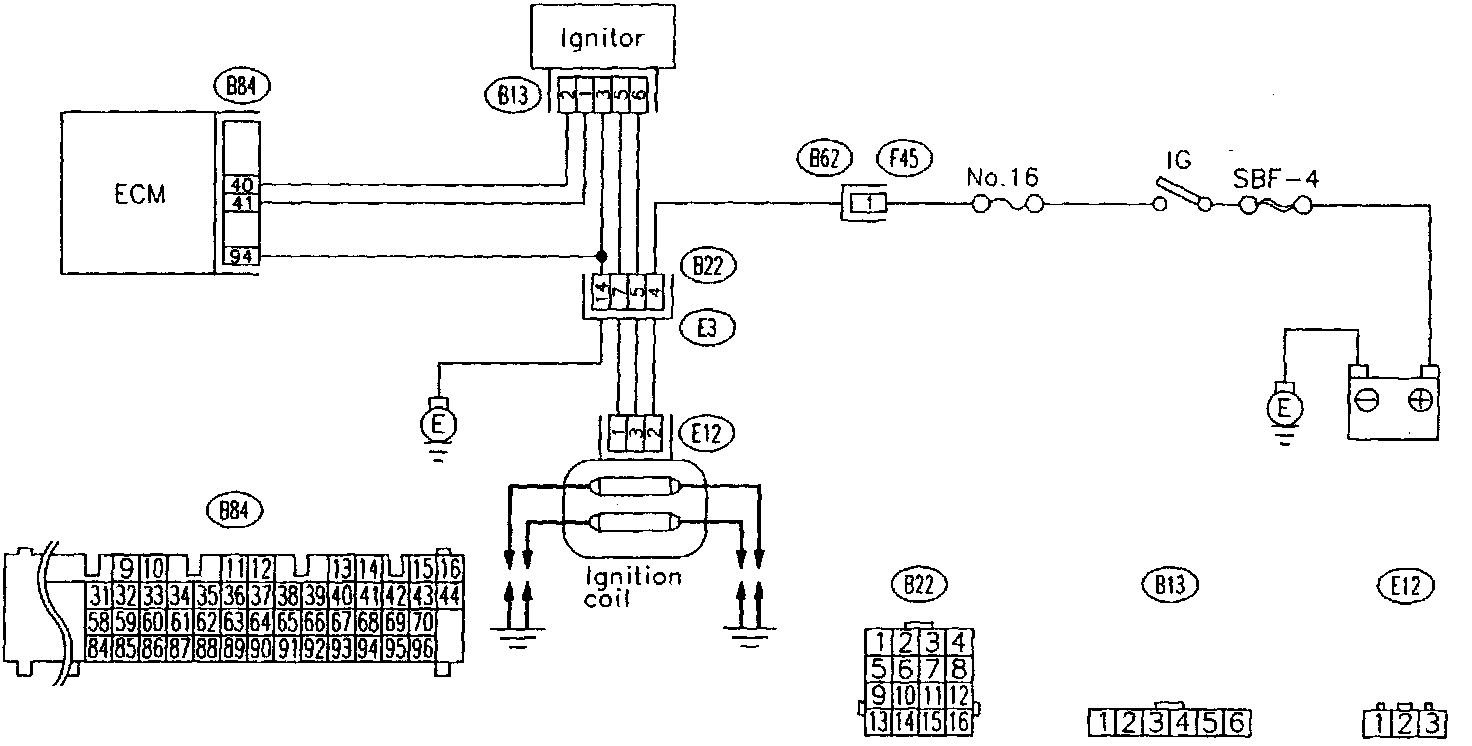

WIRING DIAGRAM

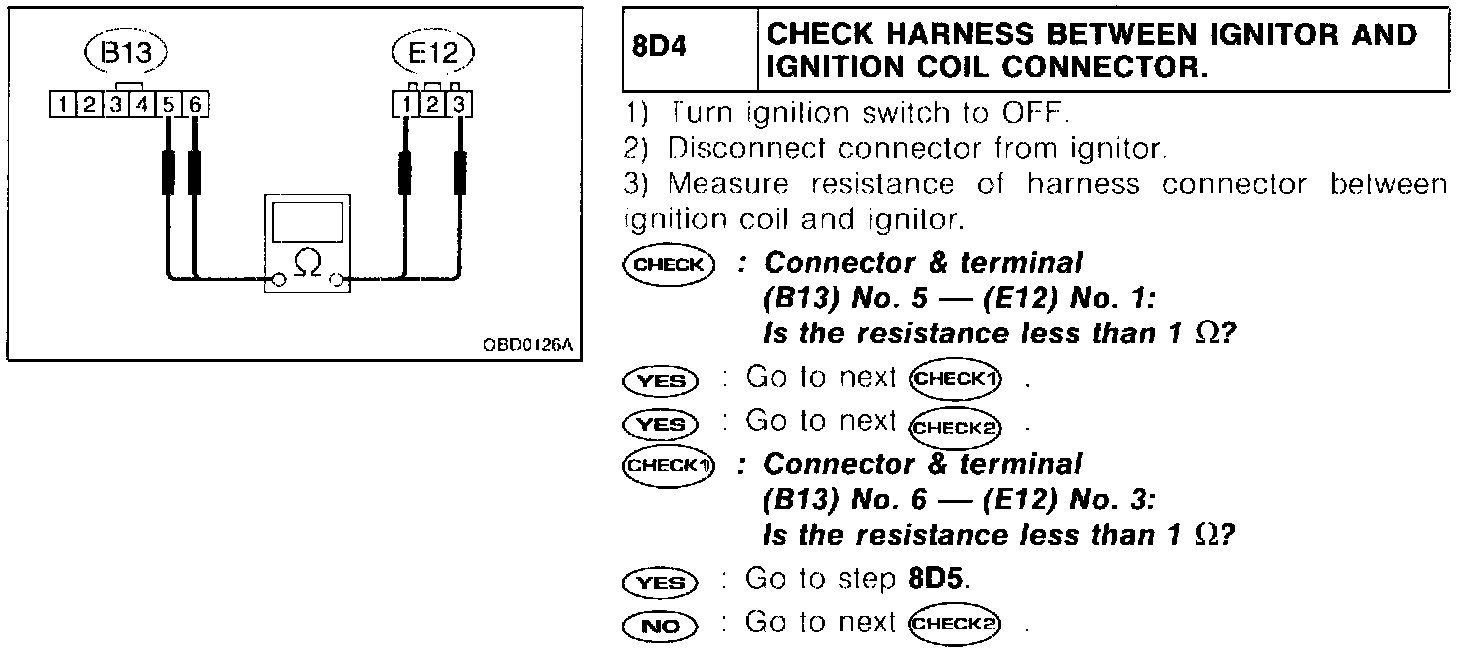

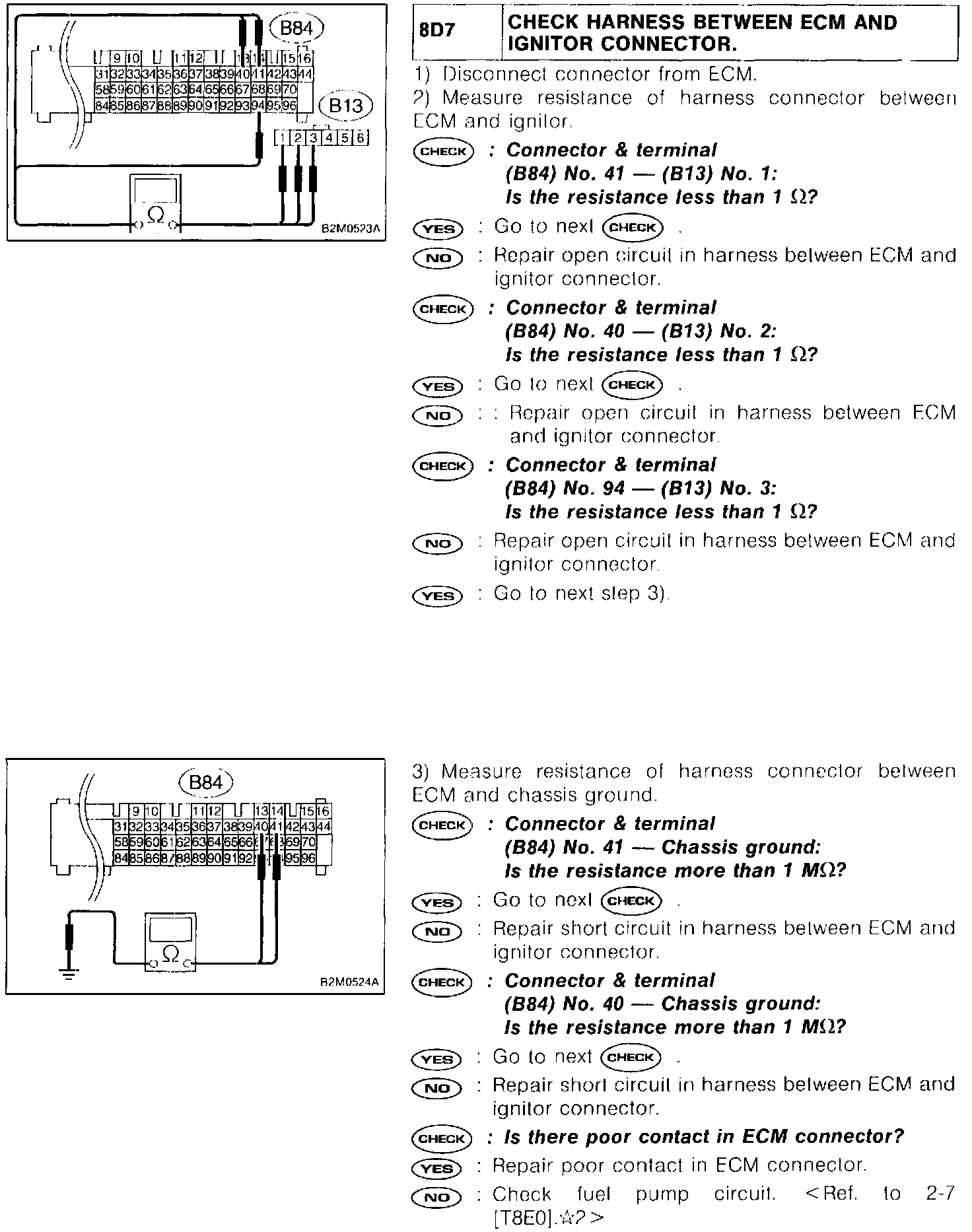

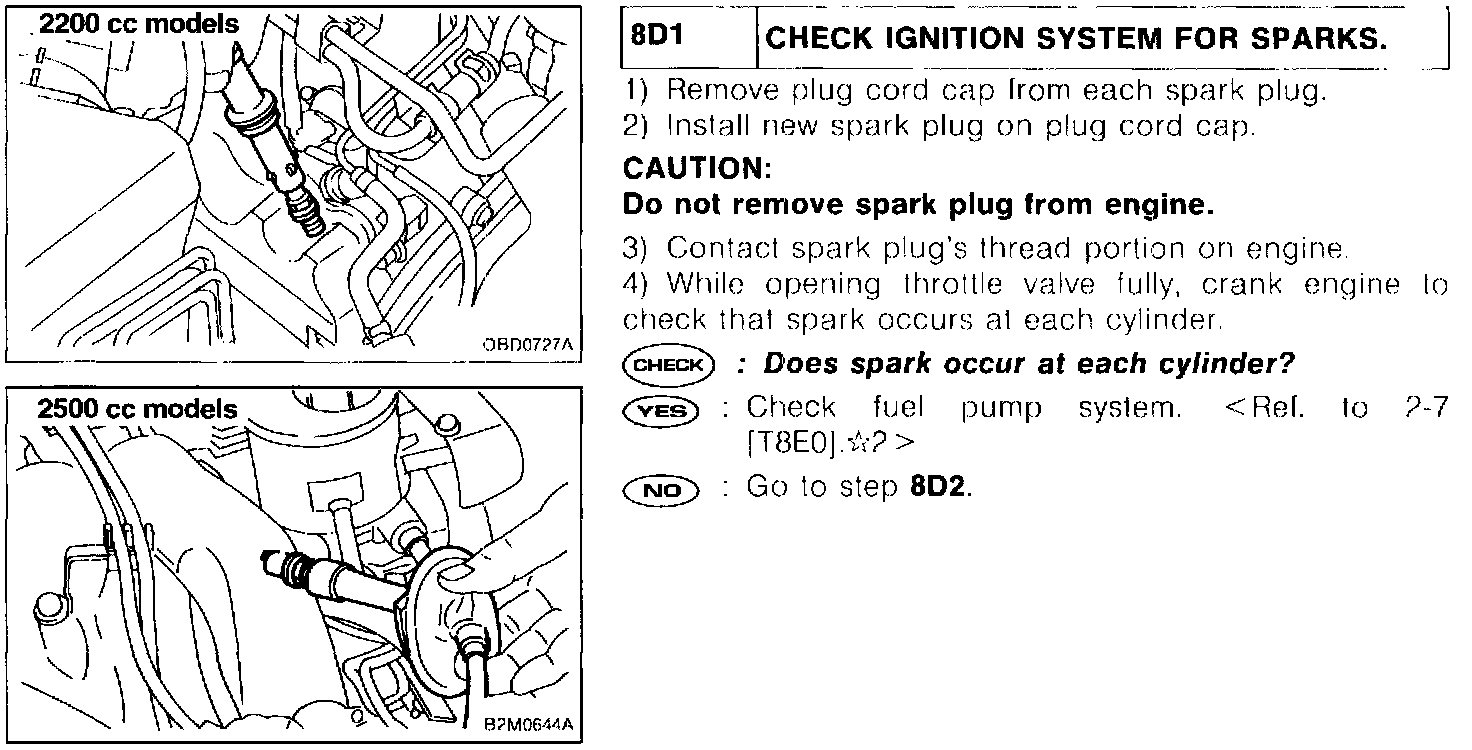

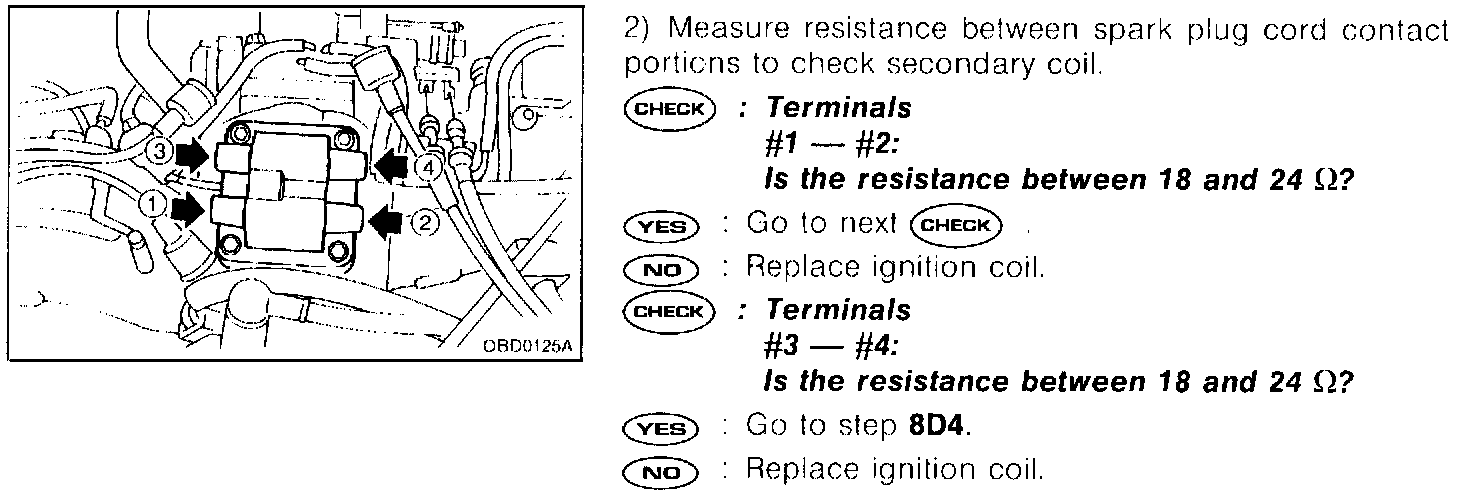

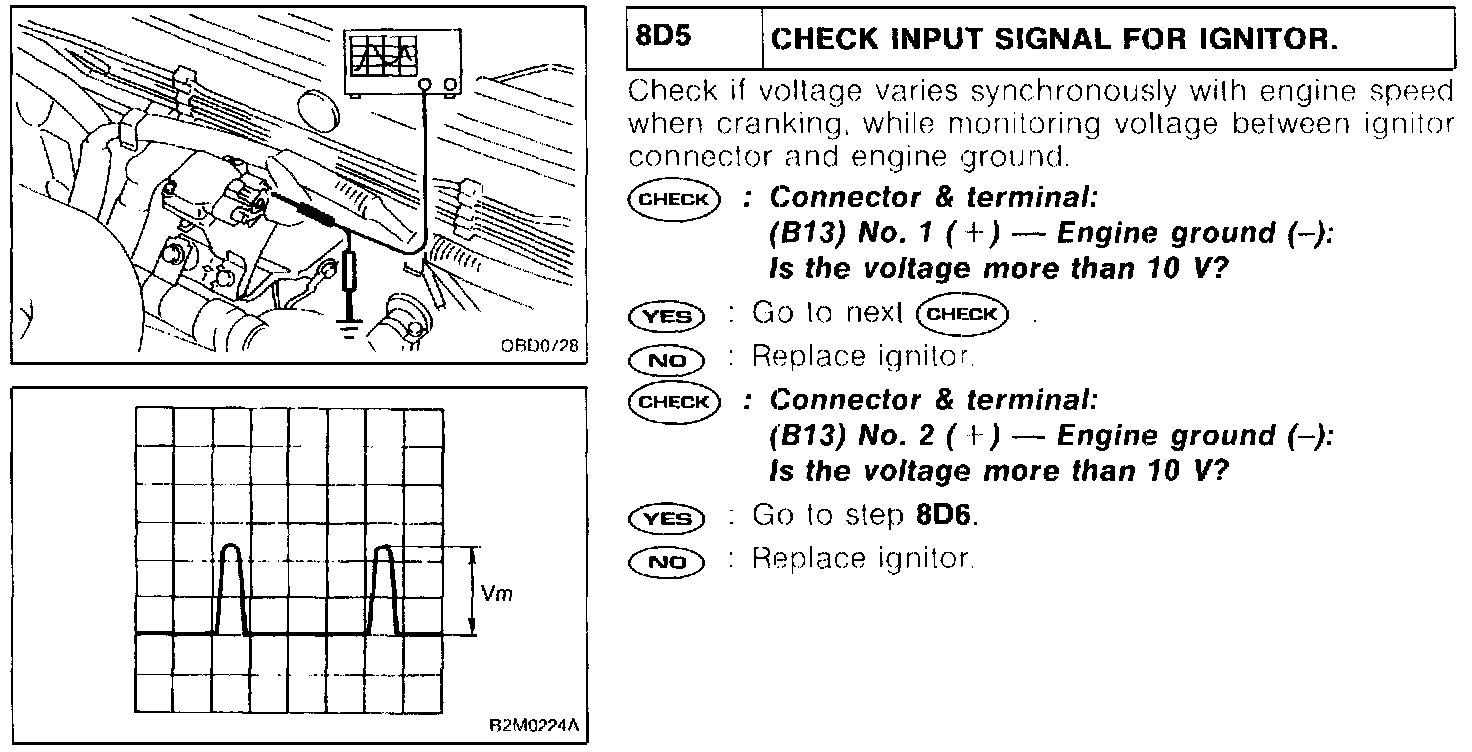

PROCEDURE









































CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES.
