Connector Views

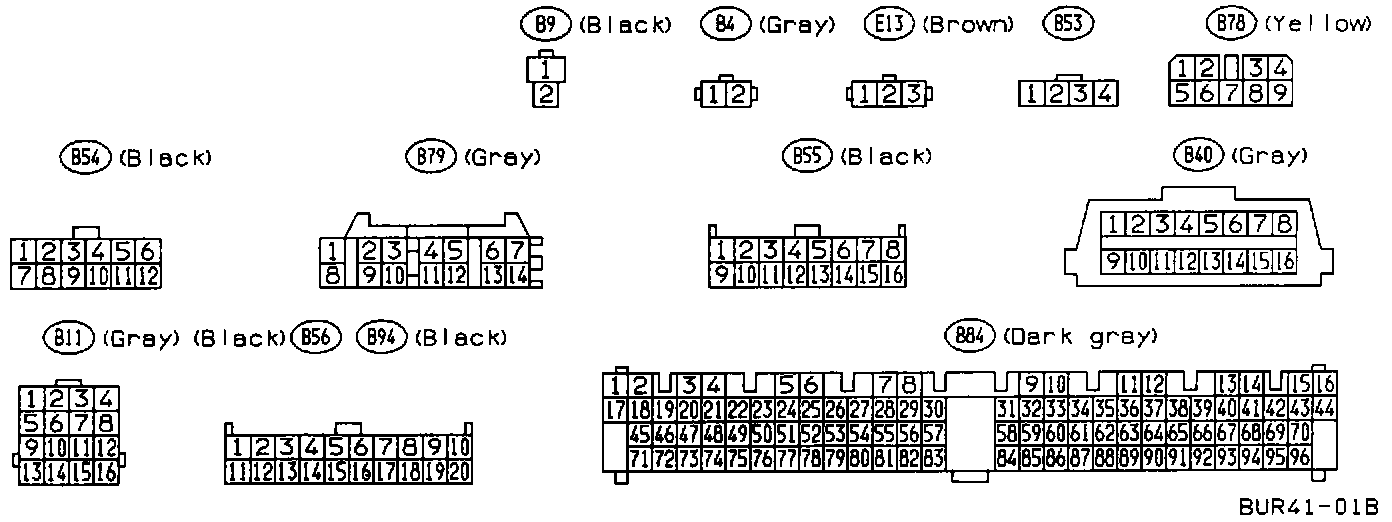

AT Control System-Connectors (Part 1 Of 2):
AT Control System-Connectors (Part 2 Of 2):
