Scan Tool Testing and Procedures

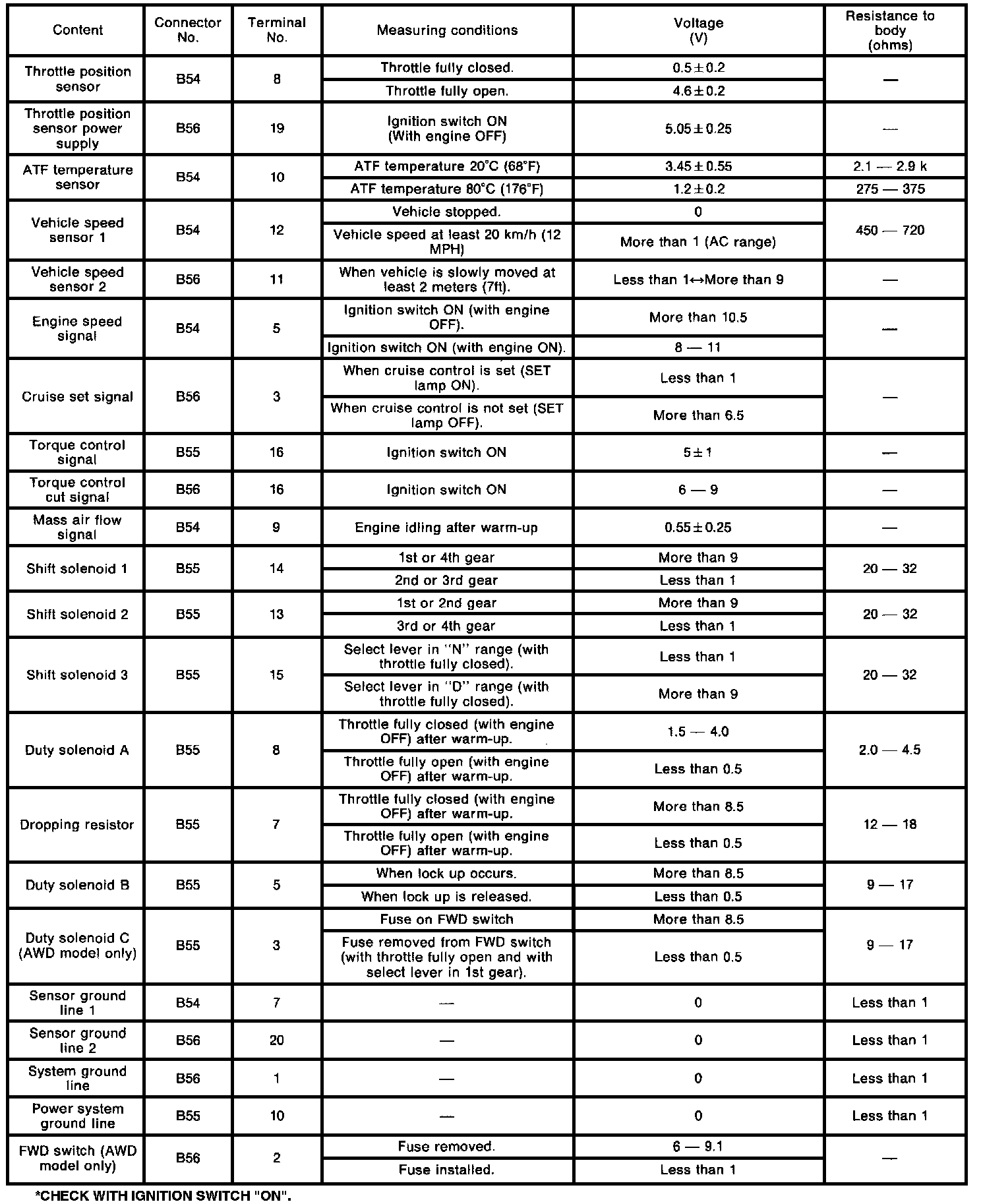

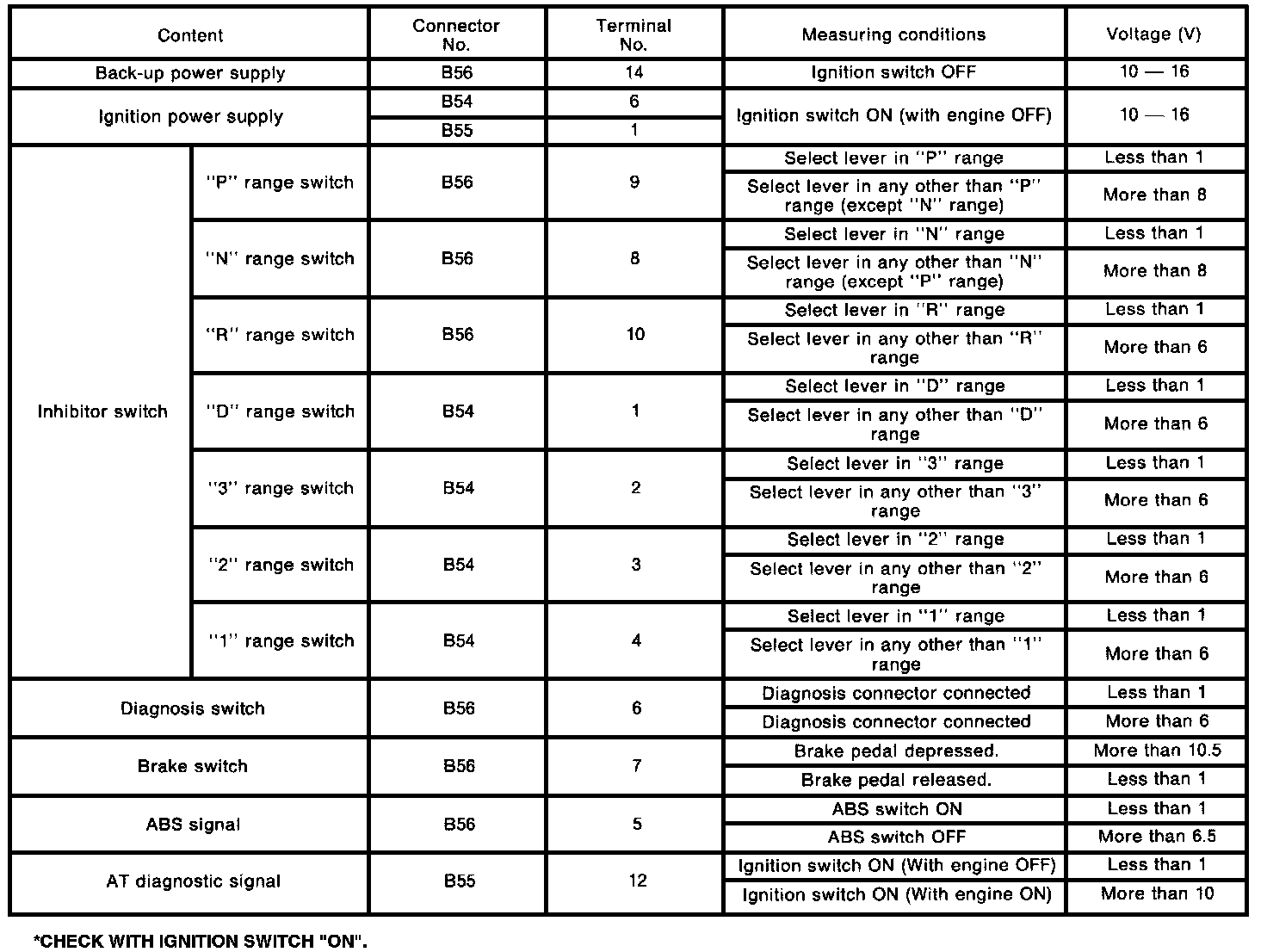

Transmission Control Module (TCM) I/O Signal
Check with Ignition Switch "ON".
