Transmission Control Systems: Locations

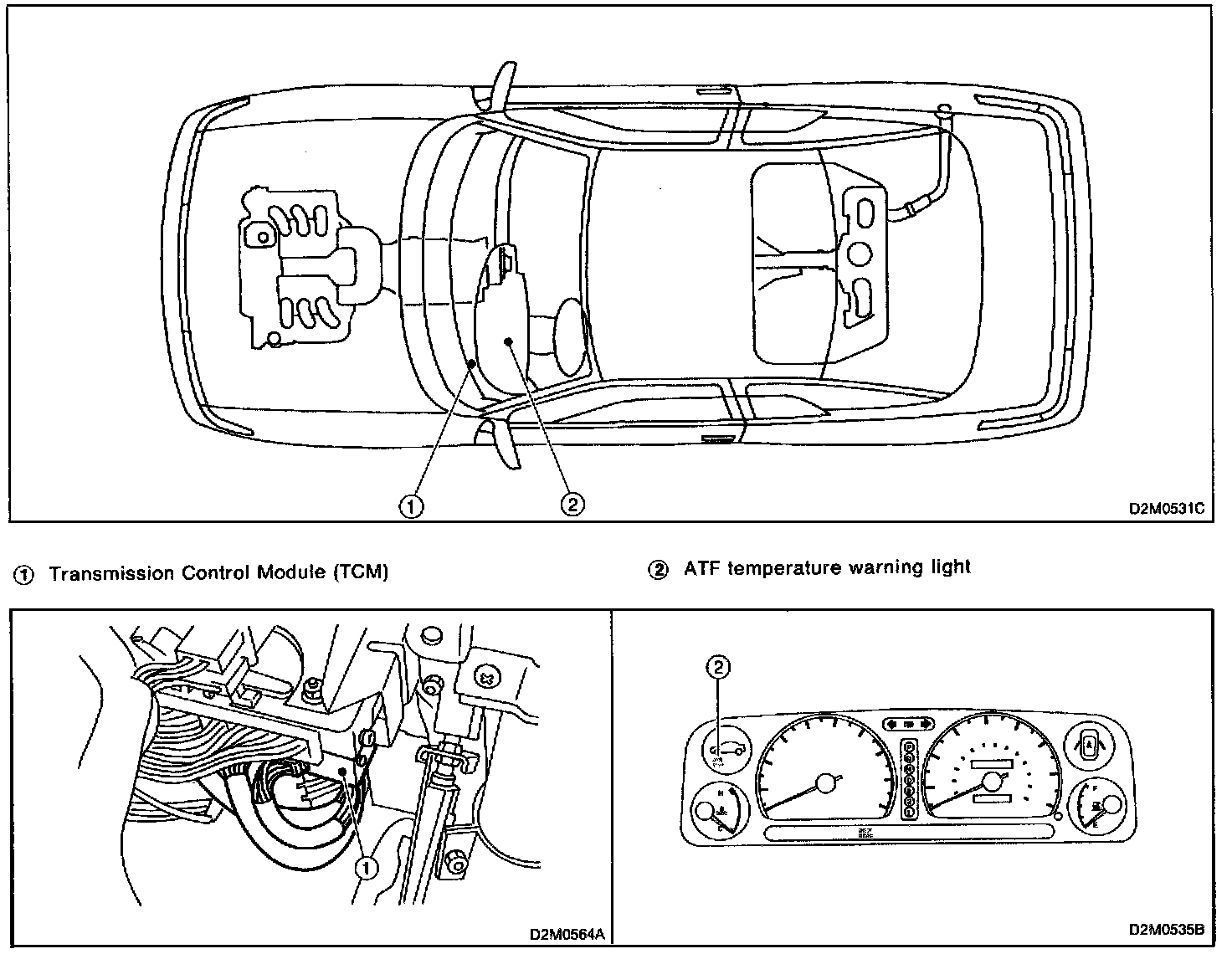

TCM And A/T Temperature Warning Lamp:

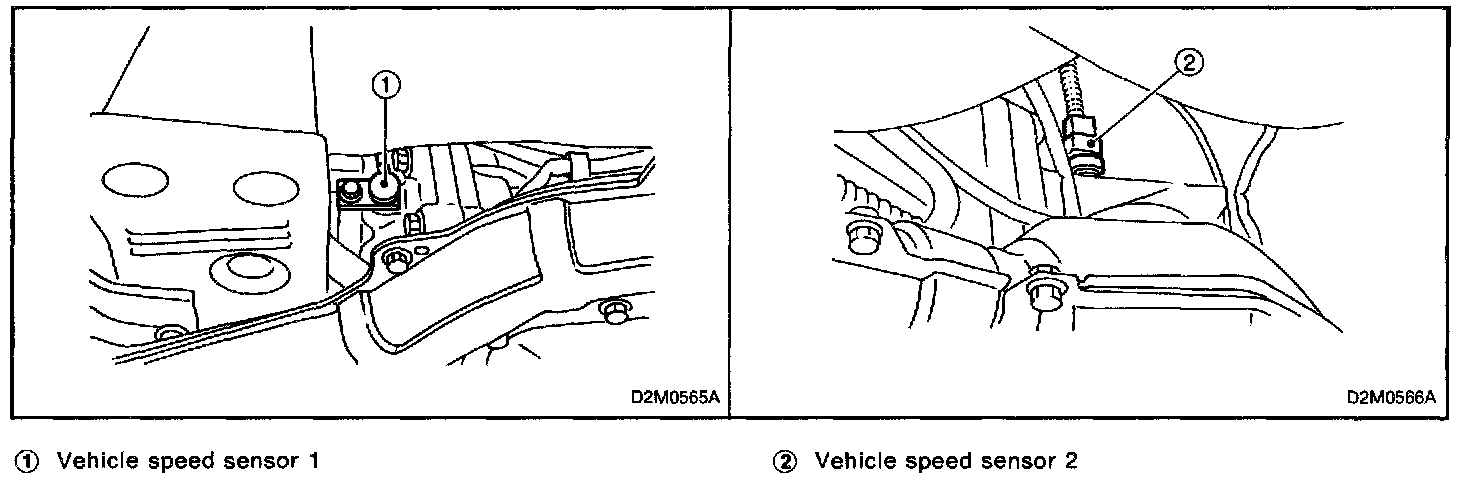

Vehicle Speed Sensors 1 And 2:

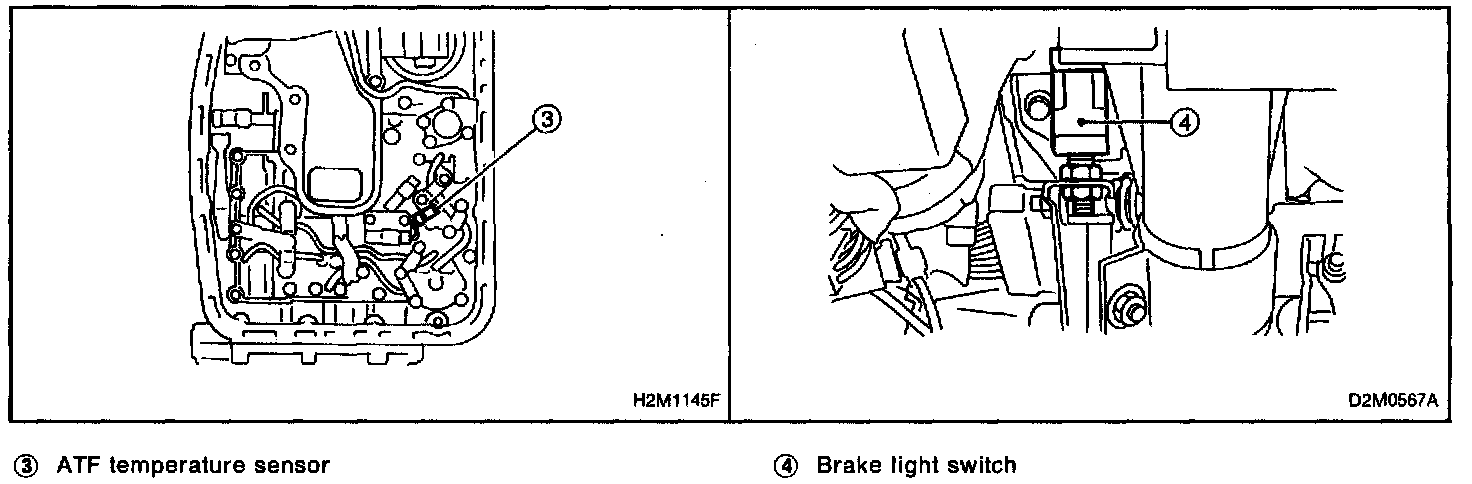

A/T Temperature Sensor And Brake Light Switch:

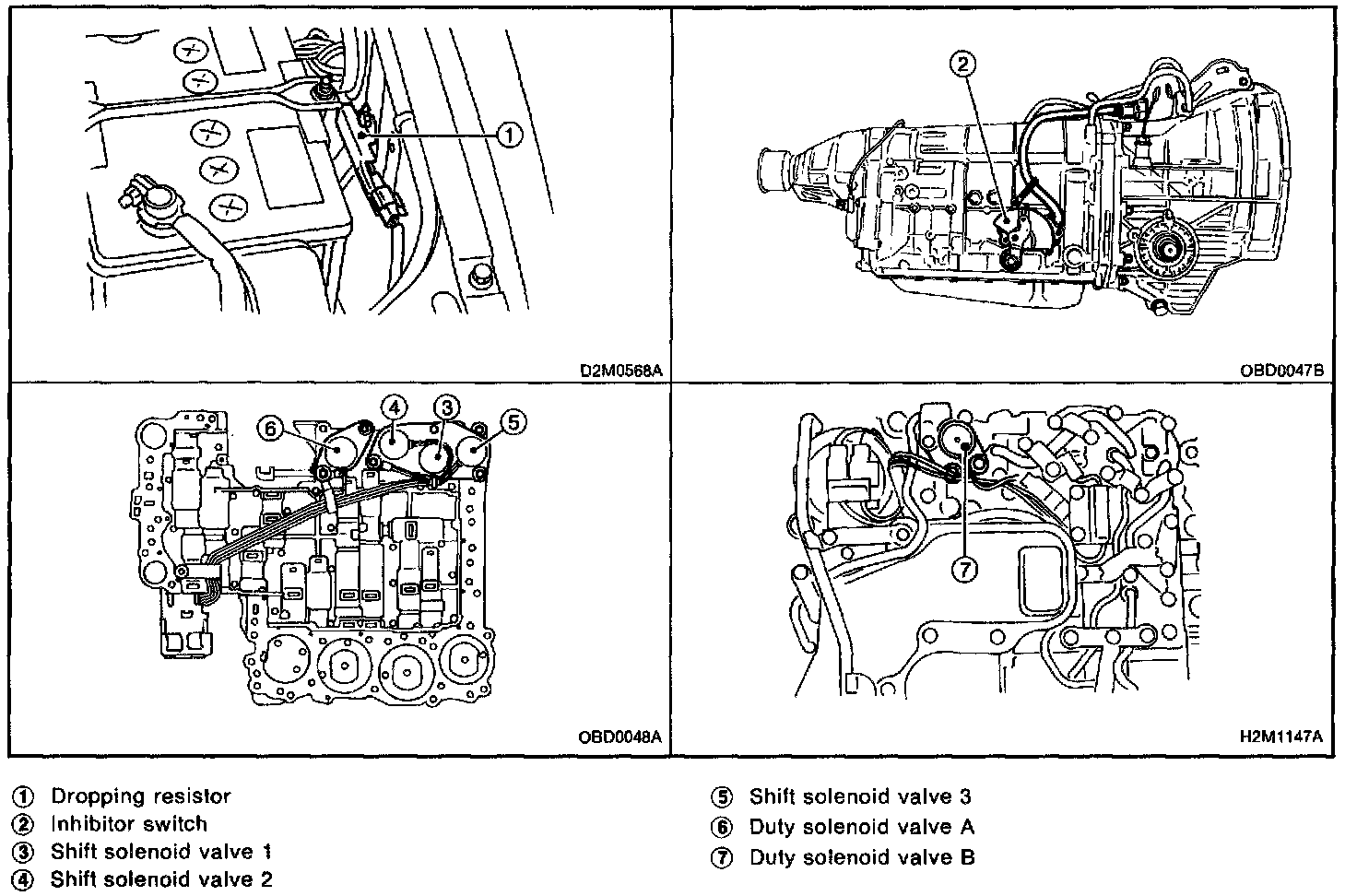

Dropping Resistors, Solenoids Valves And Inhibitor Switch:
