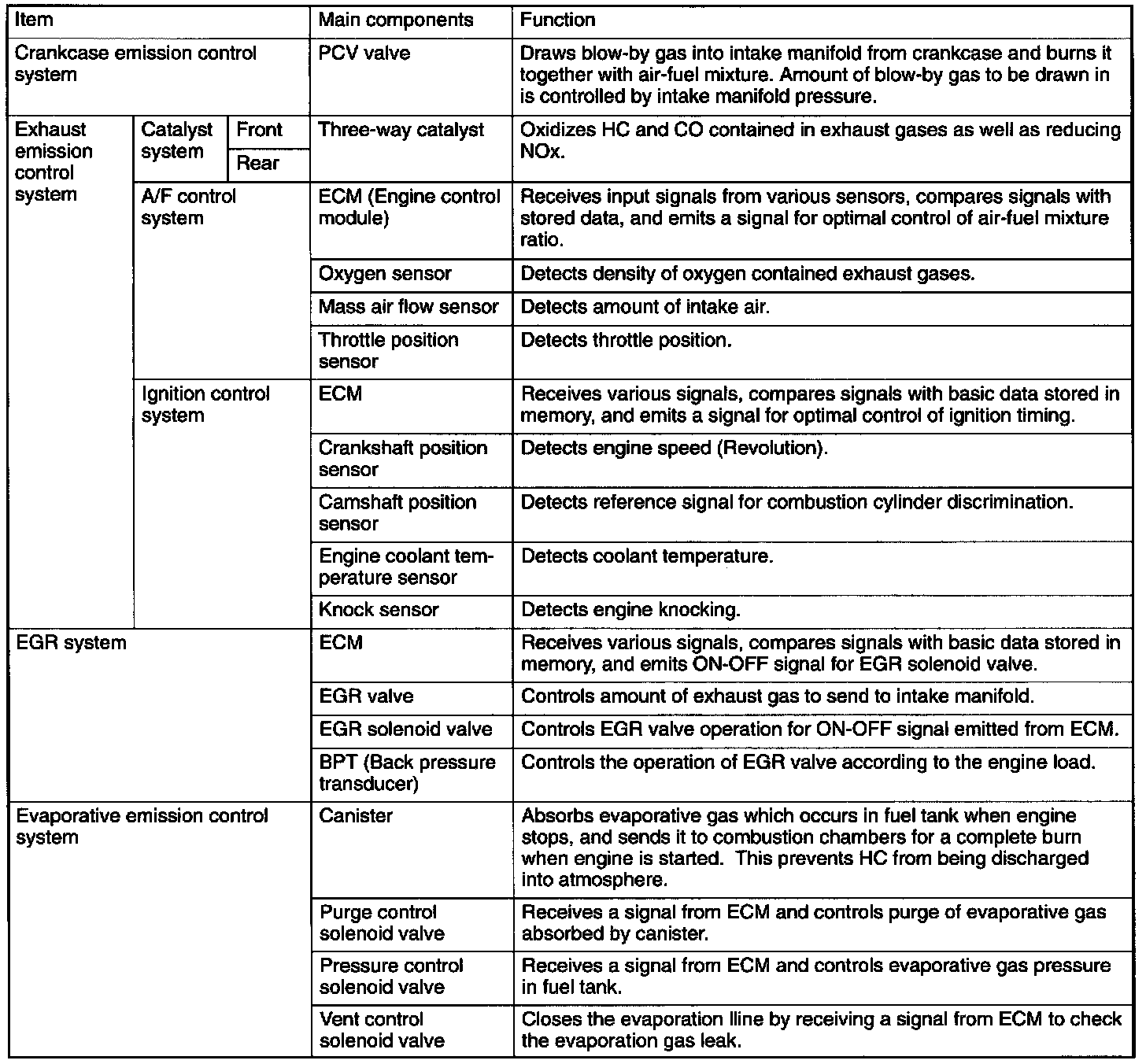

Emission Systems Application Chart

SYSTEM APPLICATION

There are three emission control systems which are as follows:
1) Crankcase emission control system
2) Exhaust emission control system
- Three-way catalyst system
- A/F control system
- Ignition control system
- EGR system
3) Evaporative emission control system
