Ignition System: Locations

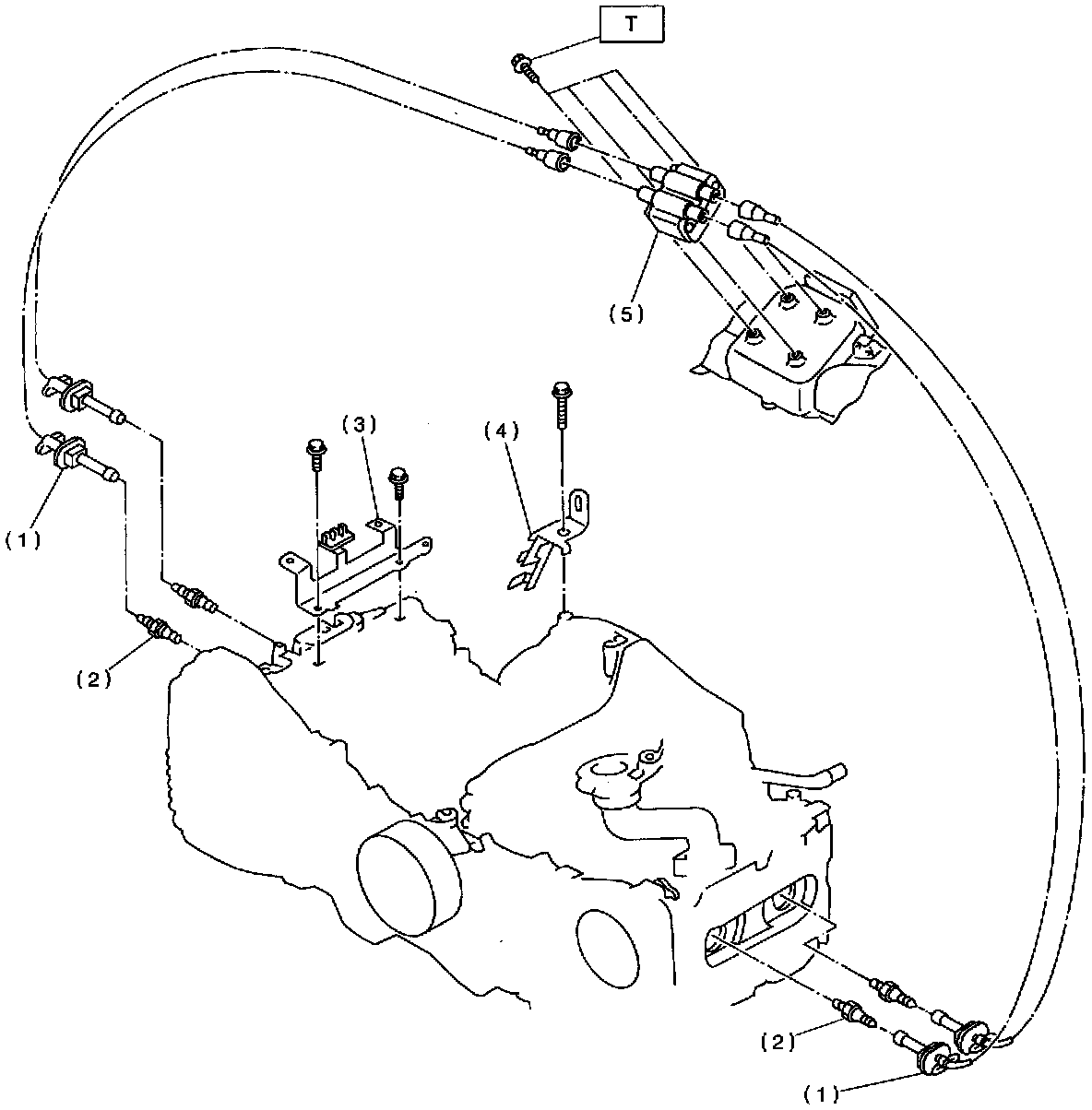

IGNITION SYSTEM
(1) Spark plug cord
(2) Spark plug
(3) Spark plug cord guide
(4) Engine harness guide
(5) Ignition coil
