Scan Tool Testing and Procedures

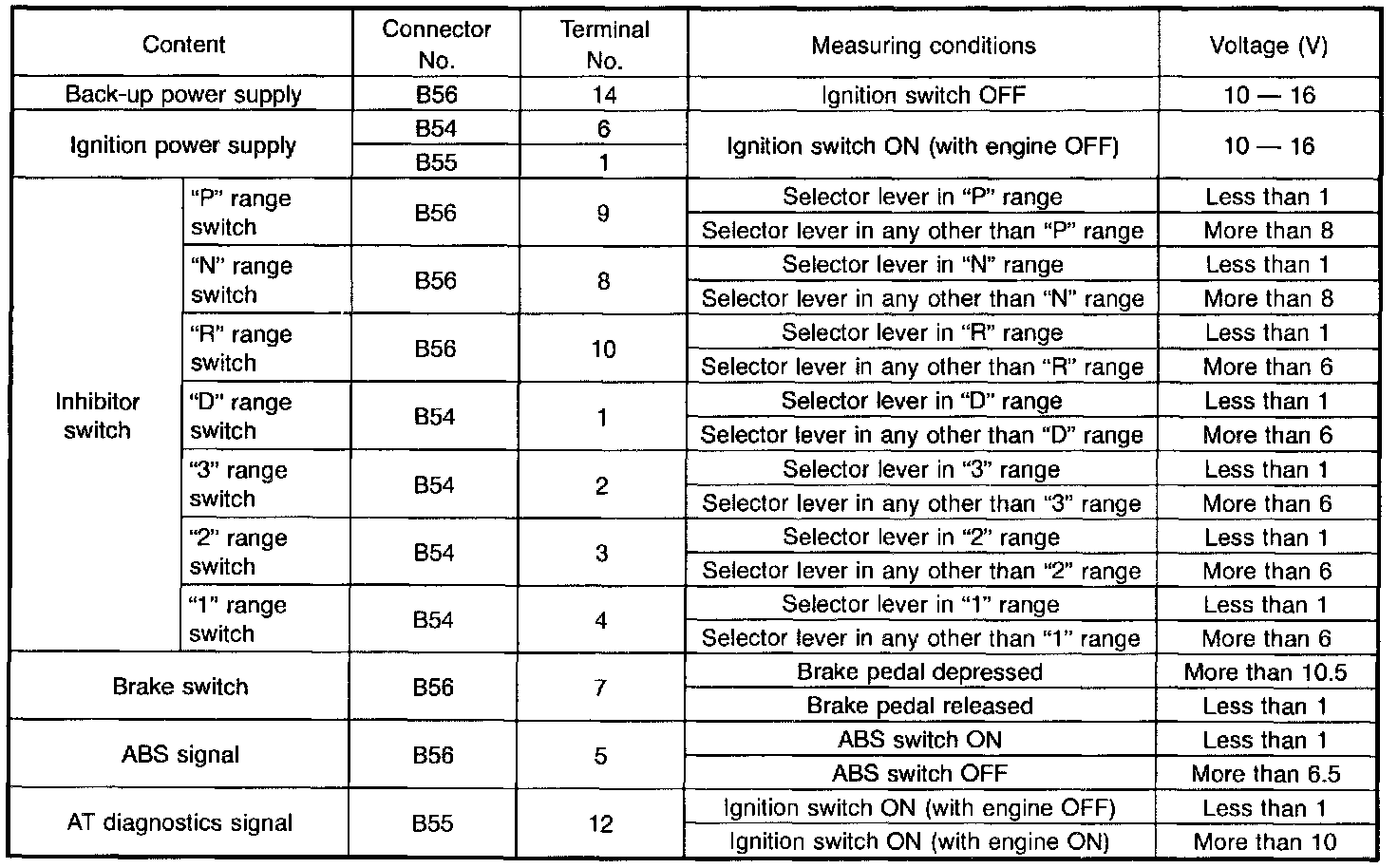

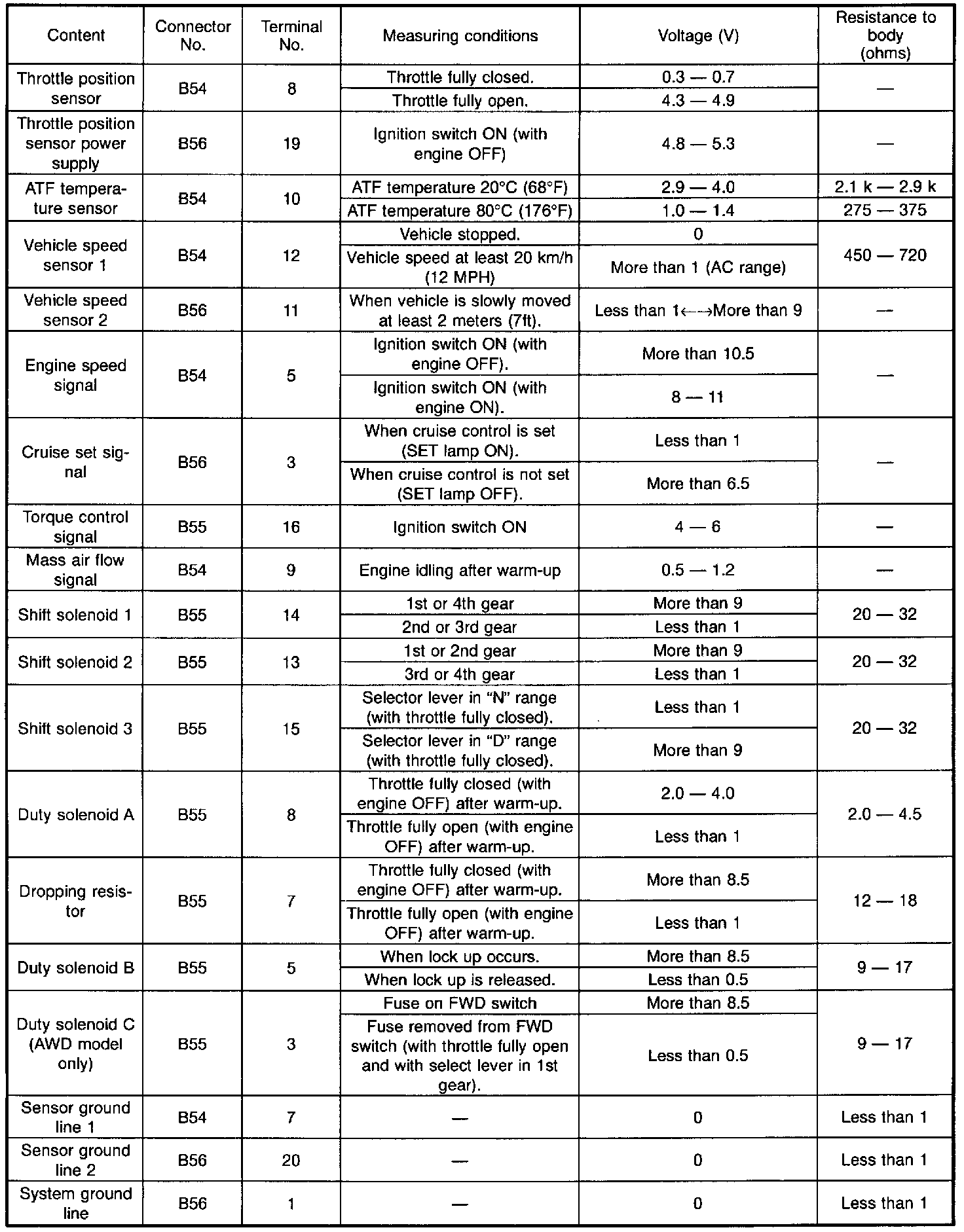

TRANSMISSION CONTROL MODULE (TCM) I/O SIGNAL
NOTE:
Check with
ignition switch
ON.
