Service

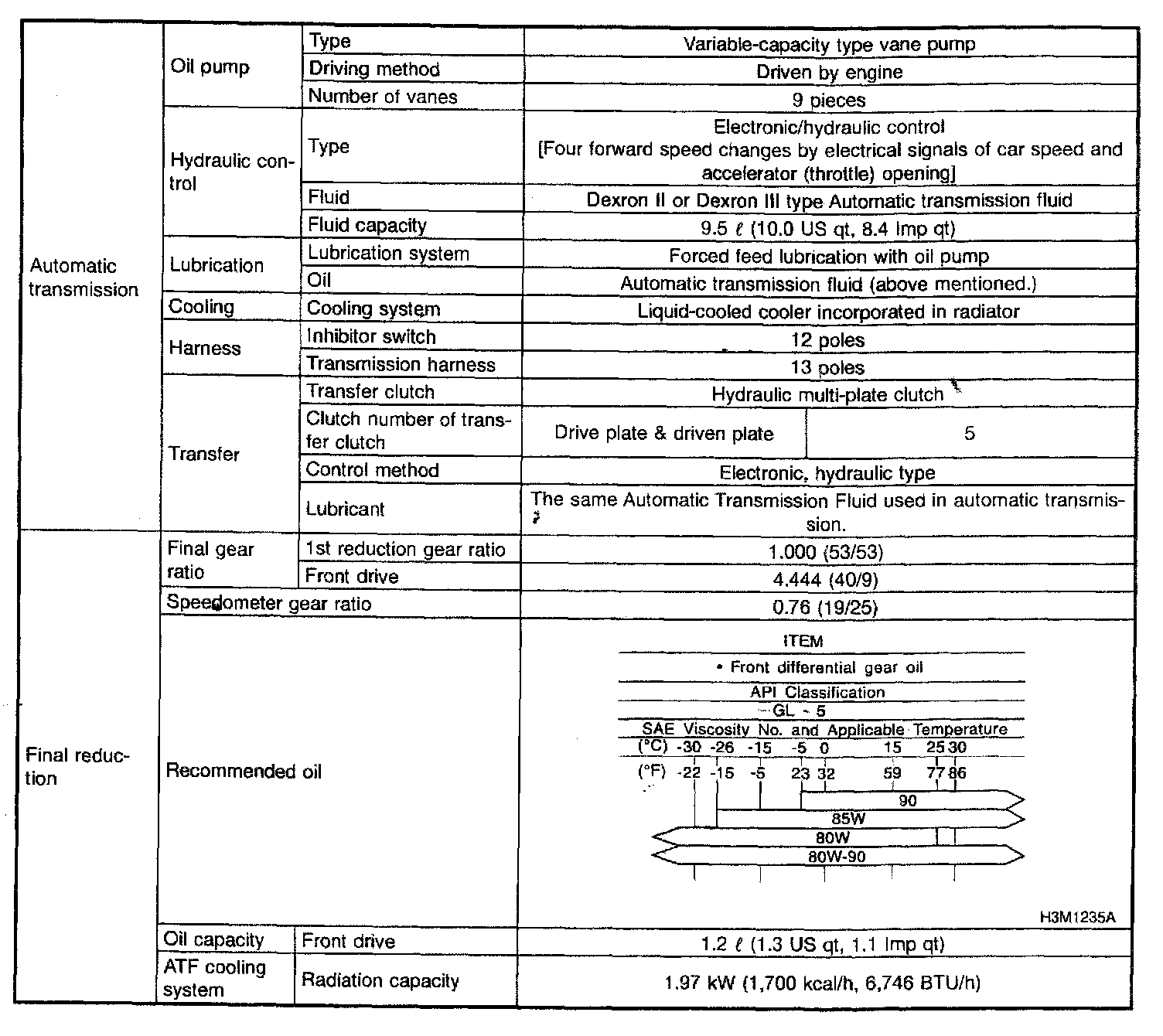

4-spd A/T, Transmission Service Data:

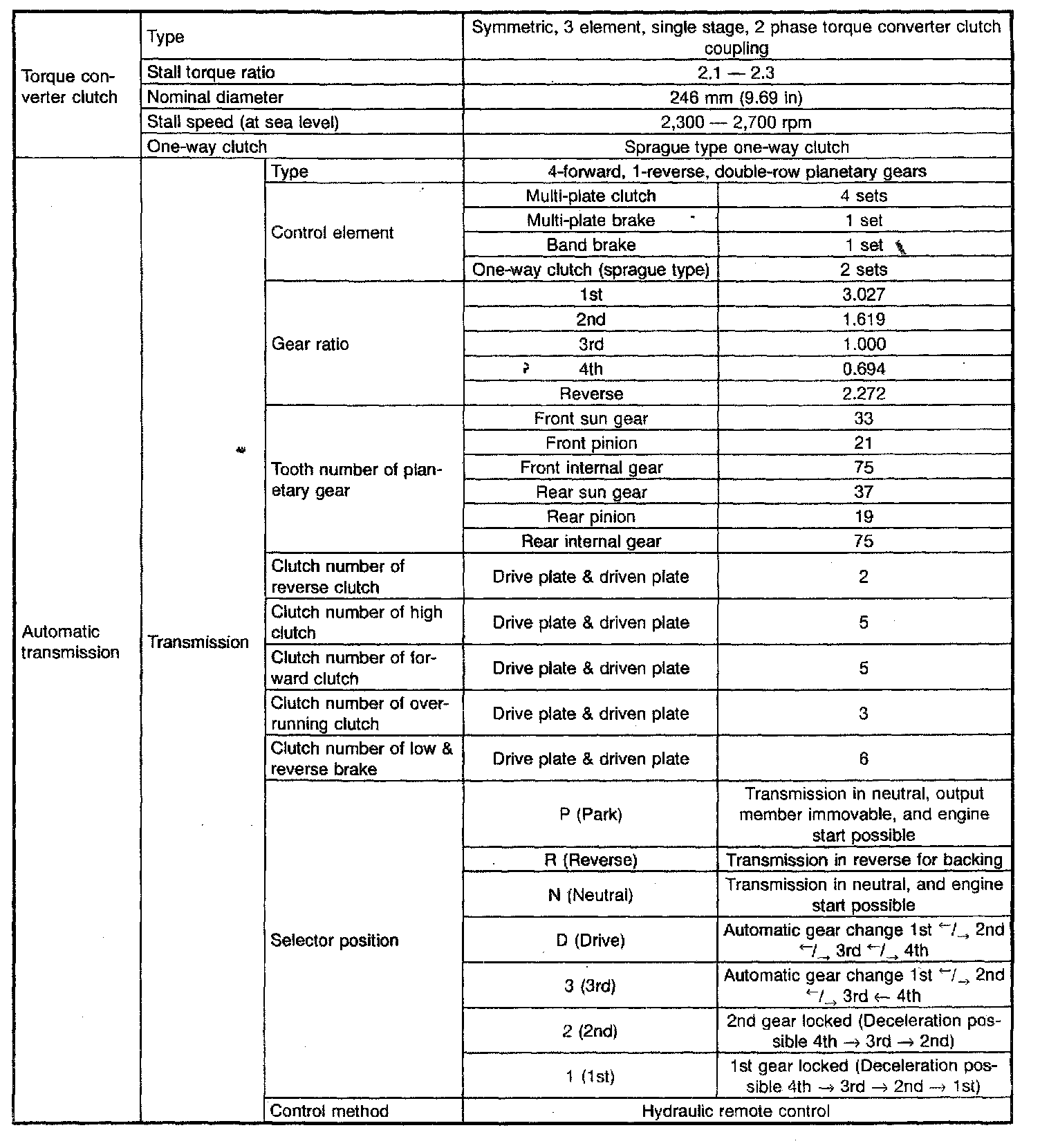

4-spd A/T, Transmission & Final Reduction Service Data:

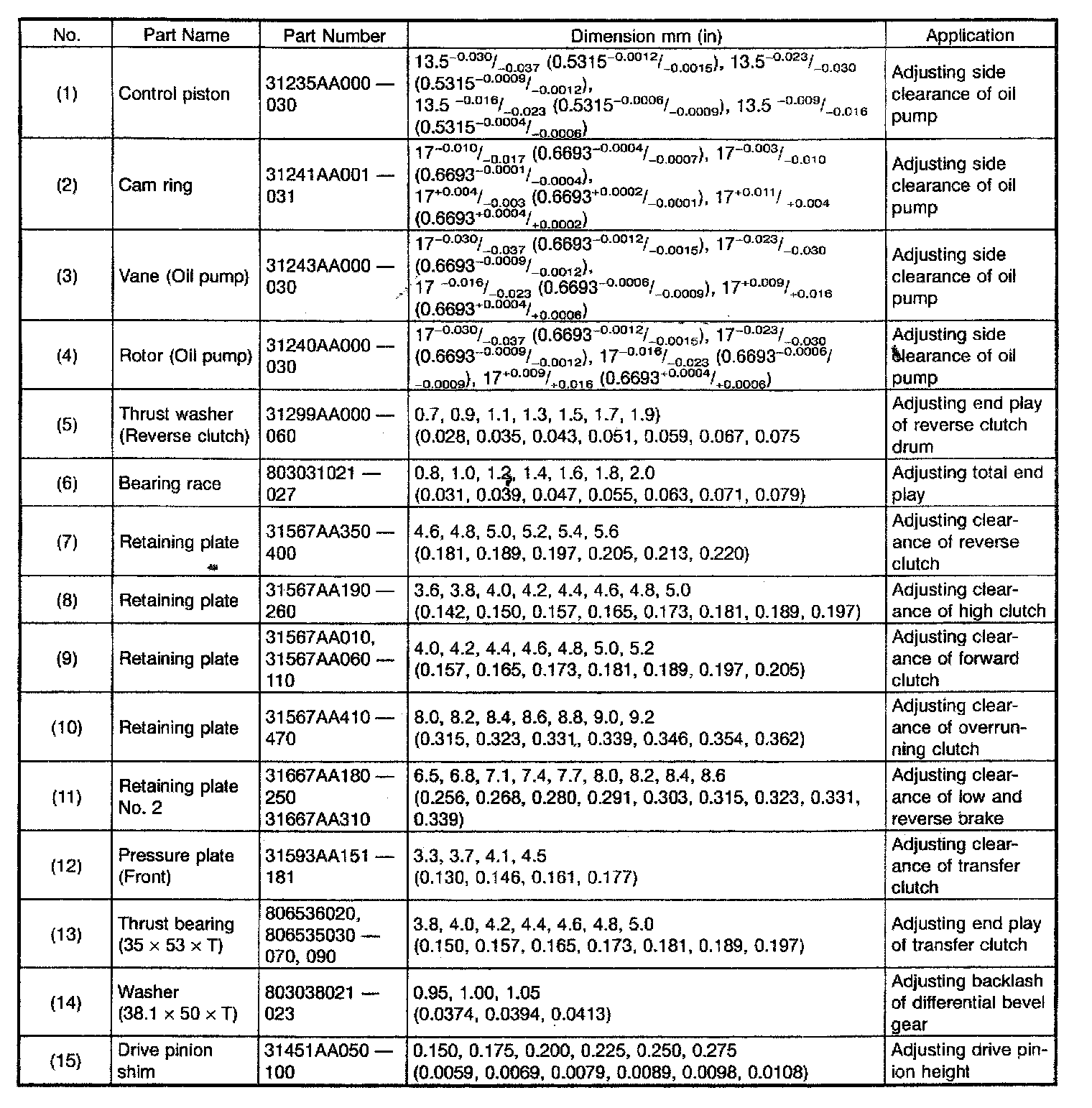

4-spd A/T, Transmission Dimension & Application:

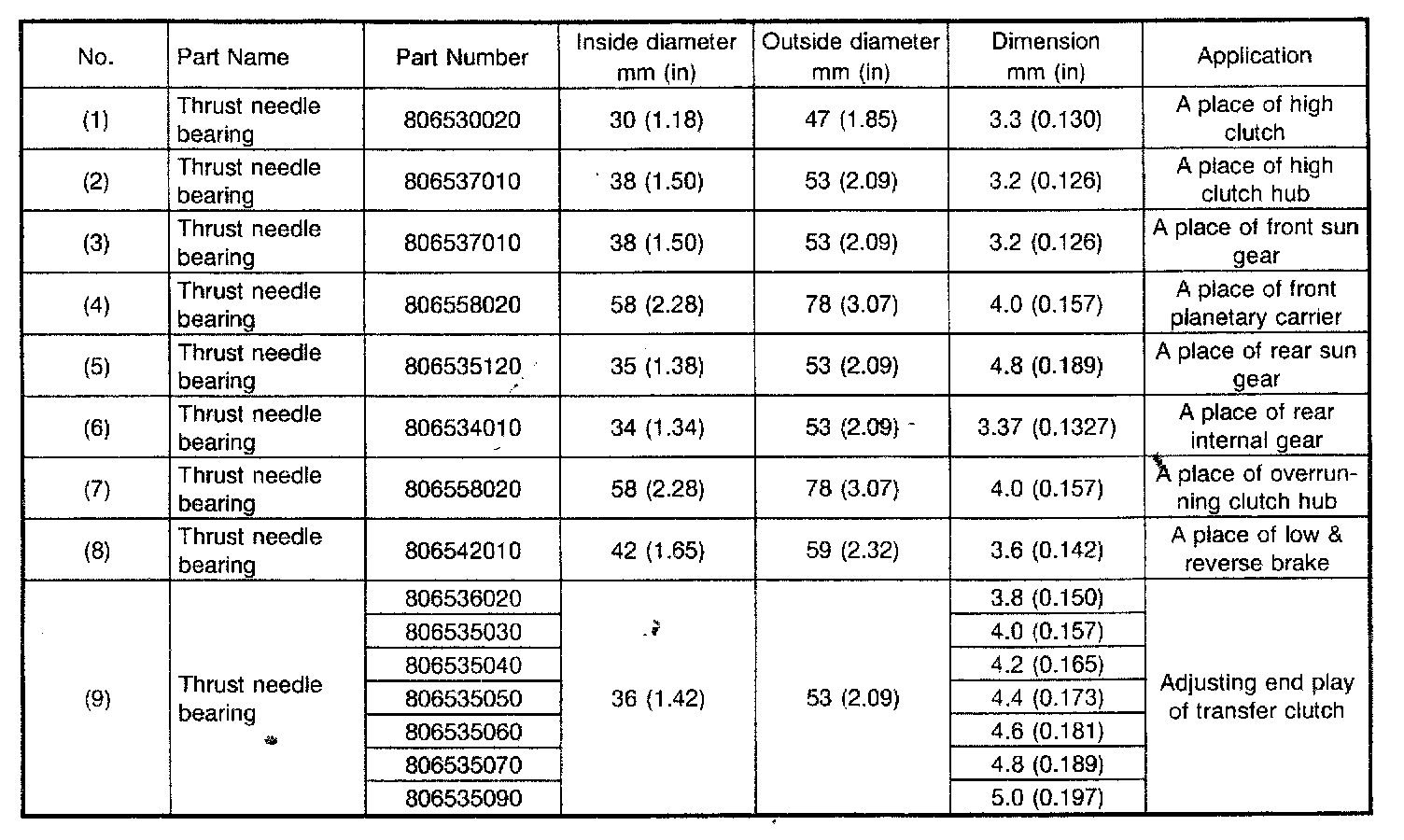

4-spd A/T, Transmission Dimension & Application:
