M/T Torque Data

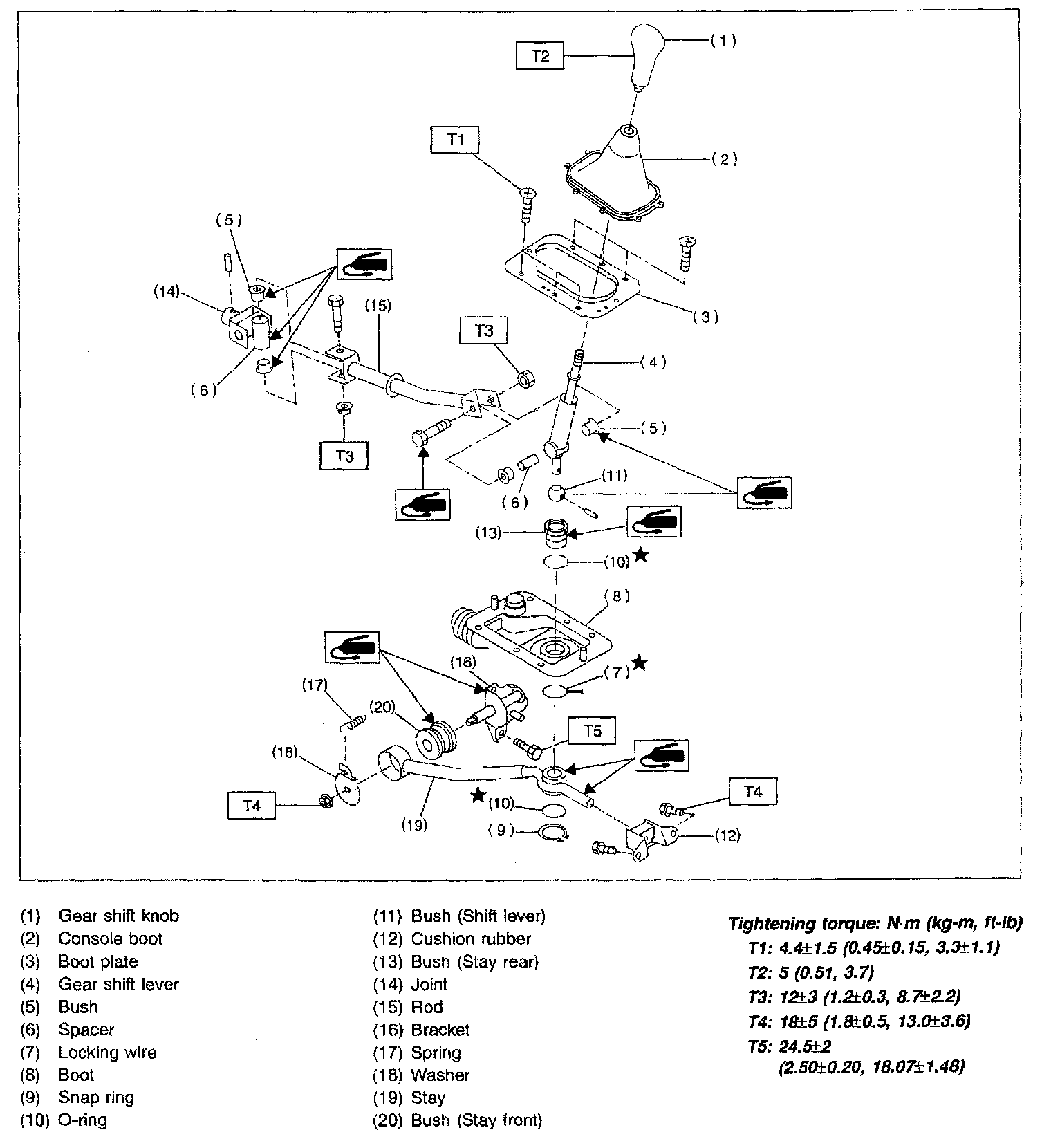

5-spd M/T, Transmission Gear Shift Lever:

5-spd M/T, Front Differential:

5-spd M/T, Transfer Case And Transmission Extension:

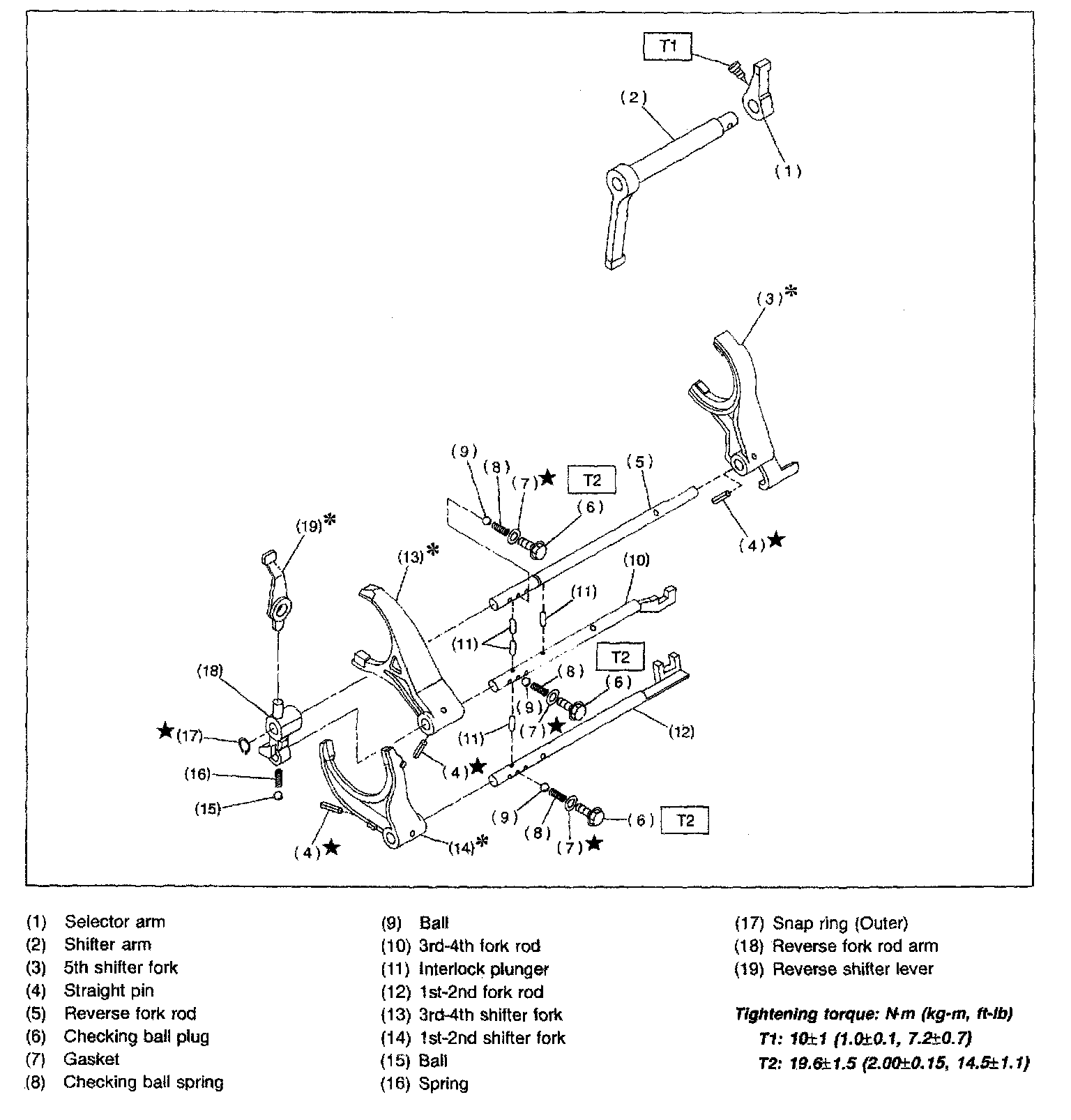

5-spd M/T, Transmission Shifter Fork & Rod:

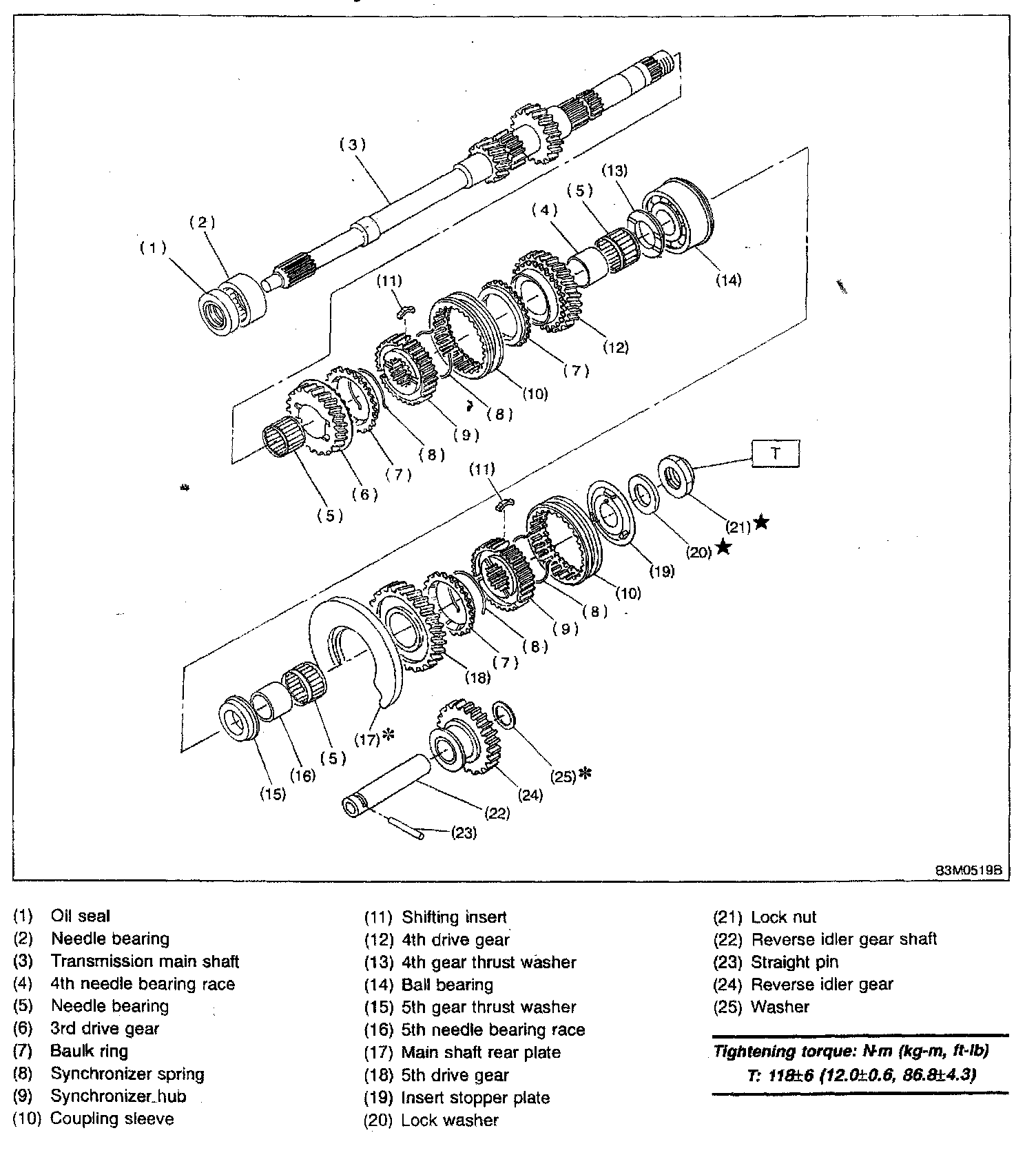

5-spd M/T, Transmission Main Shaft Assembly:

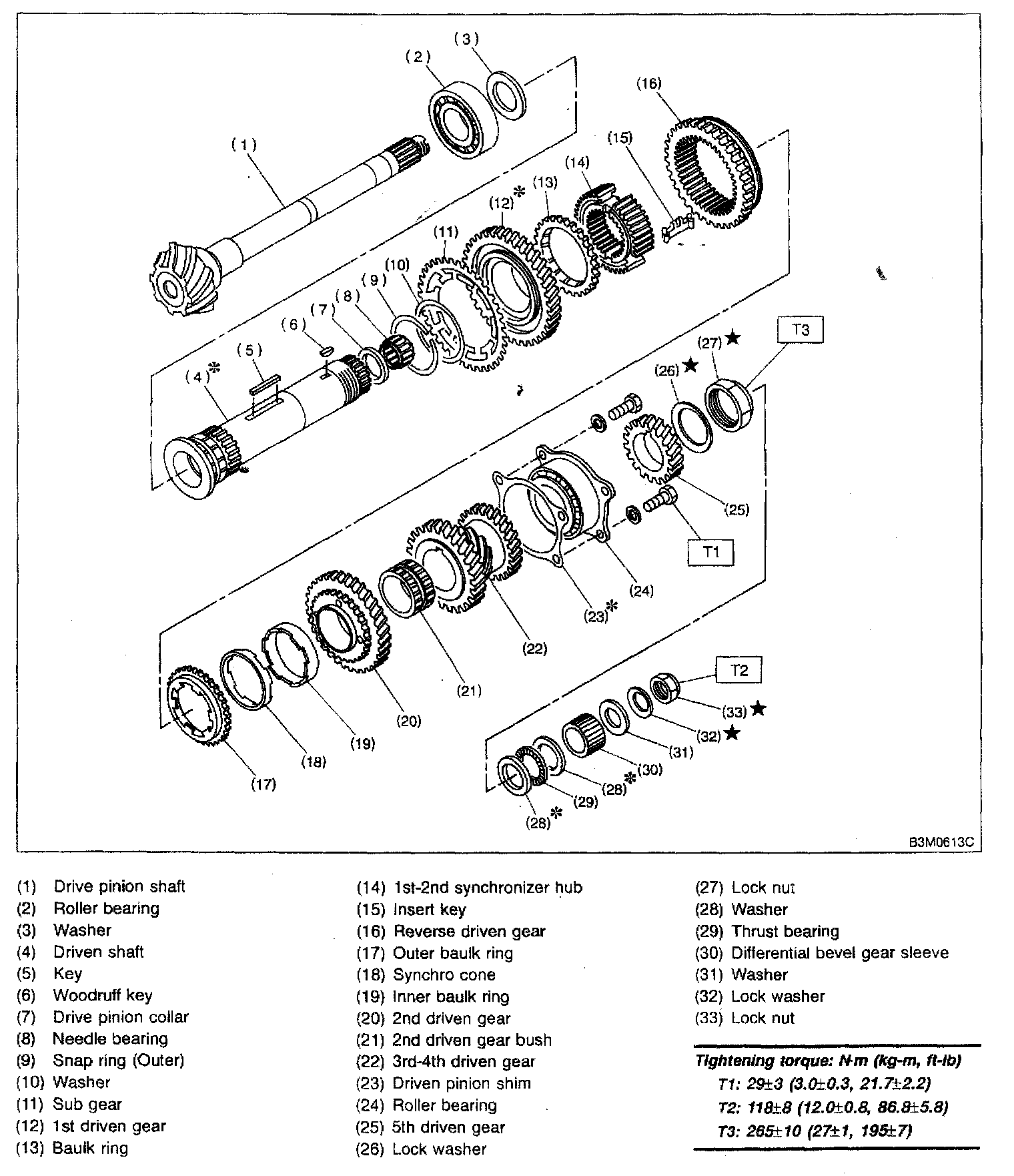

5-spd M/T, Transmission Drive Pinion Assembly:

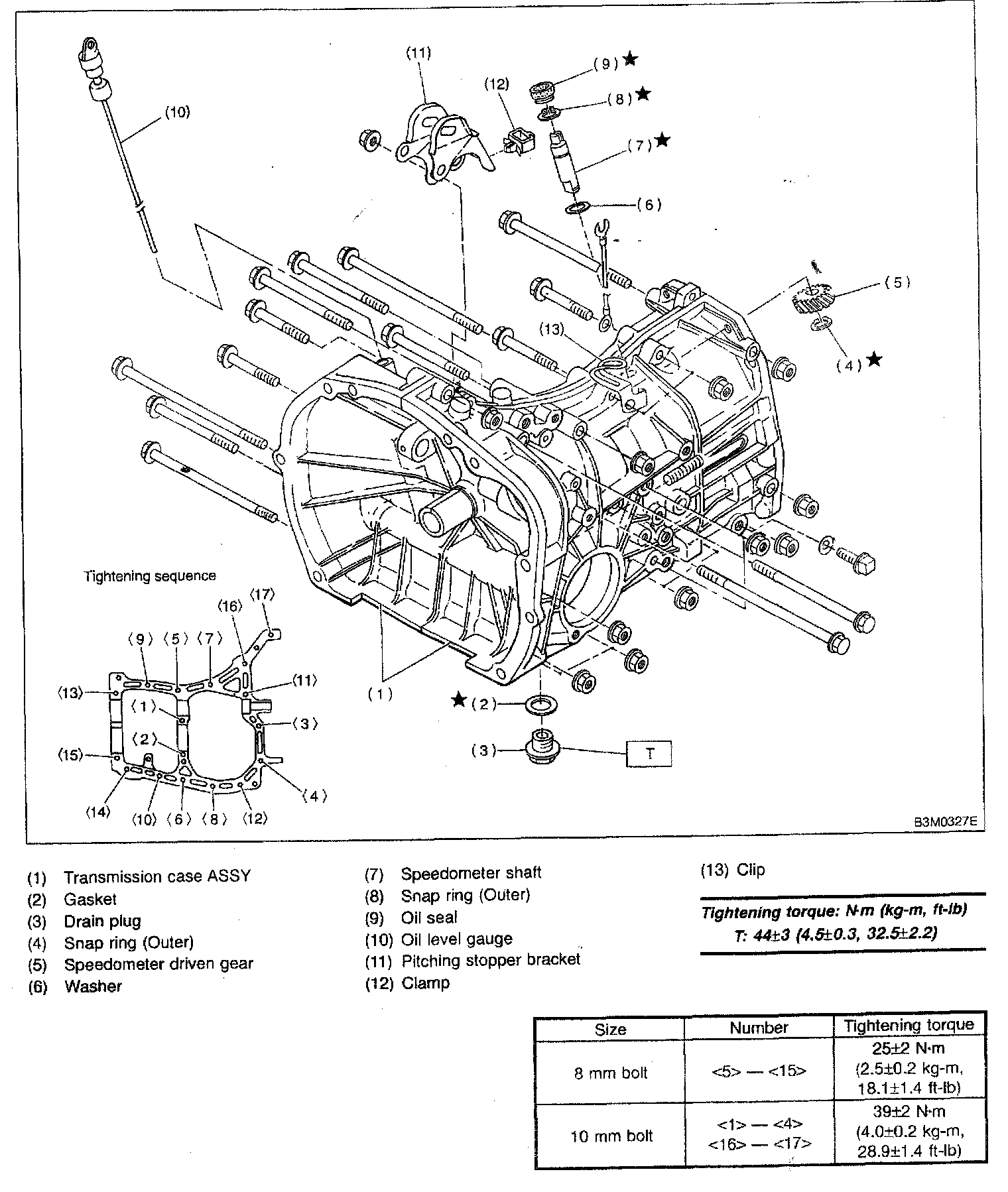

5-spd M/T, Transmission Case:

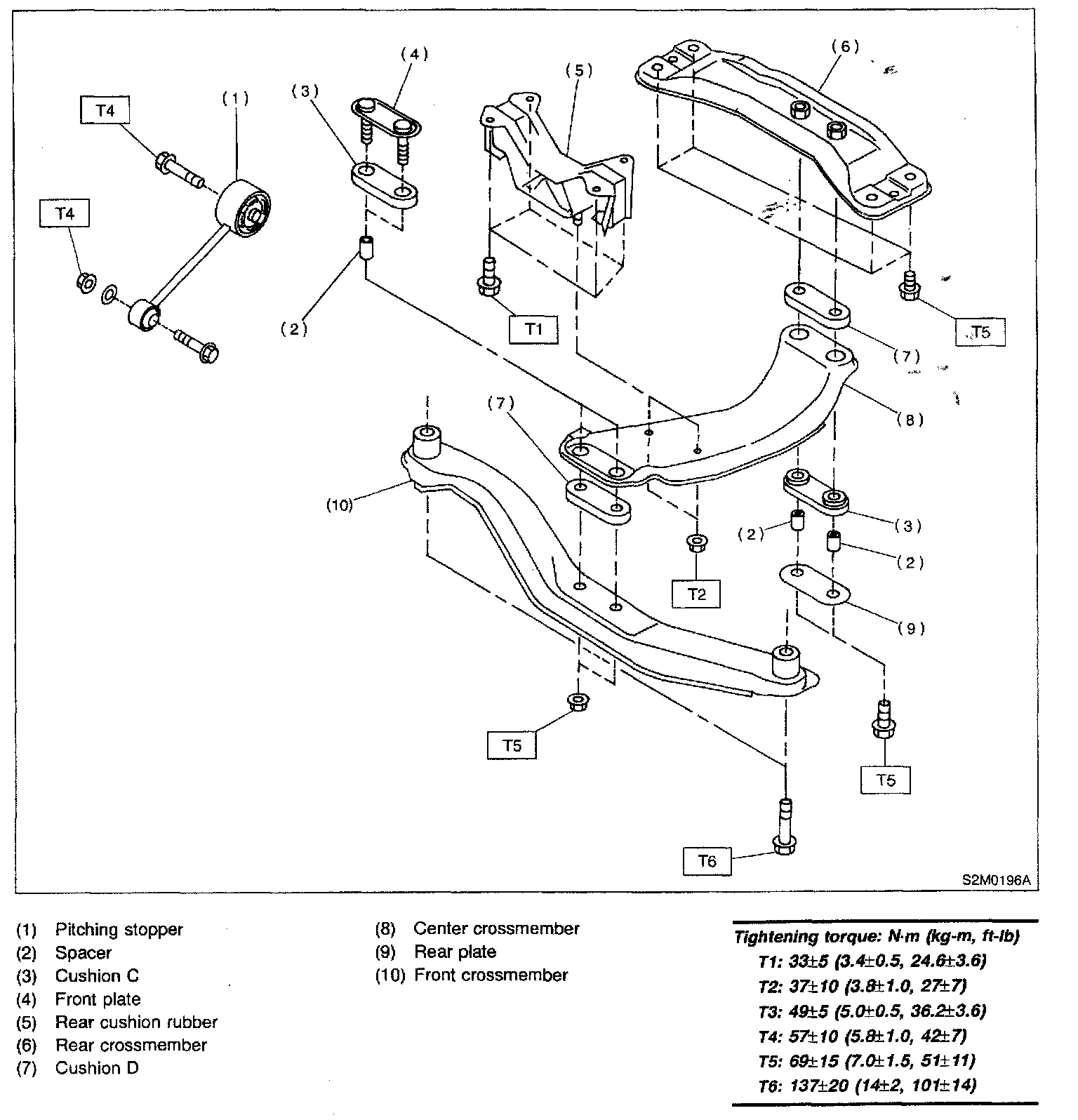

5-spd M/T, Transmission Mounting:
