Check 1 Range Switch

CHECK "1" RANGE SWITCH














Diagnosis:
Input signal circuit of "1" range is open or shorted.
Trouble Symptom:
- Shift characteristics are erroneous.
- Engine brake is not effected when selector lever is in "1" range.

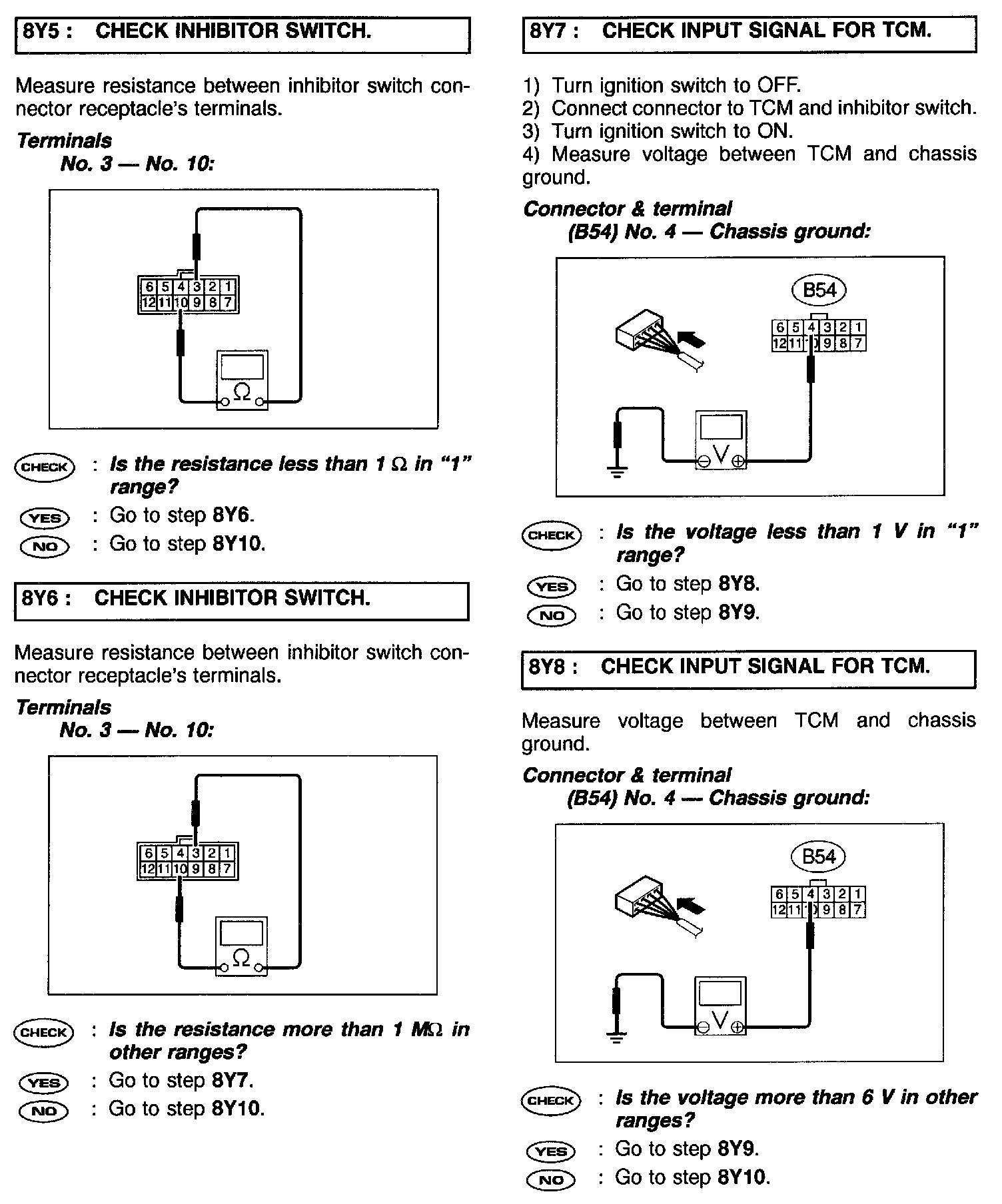

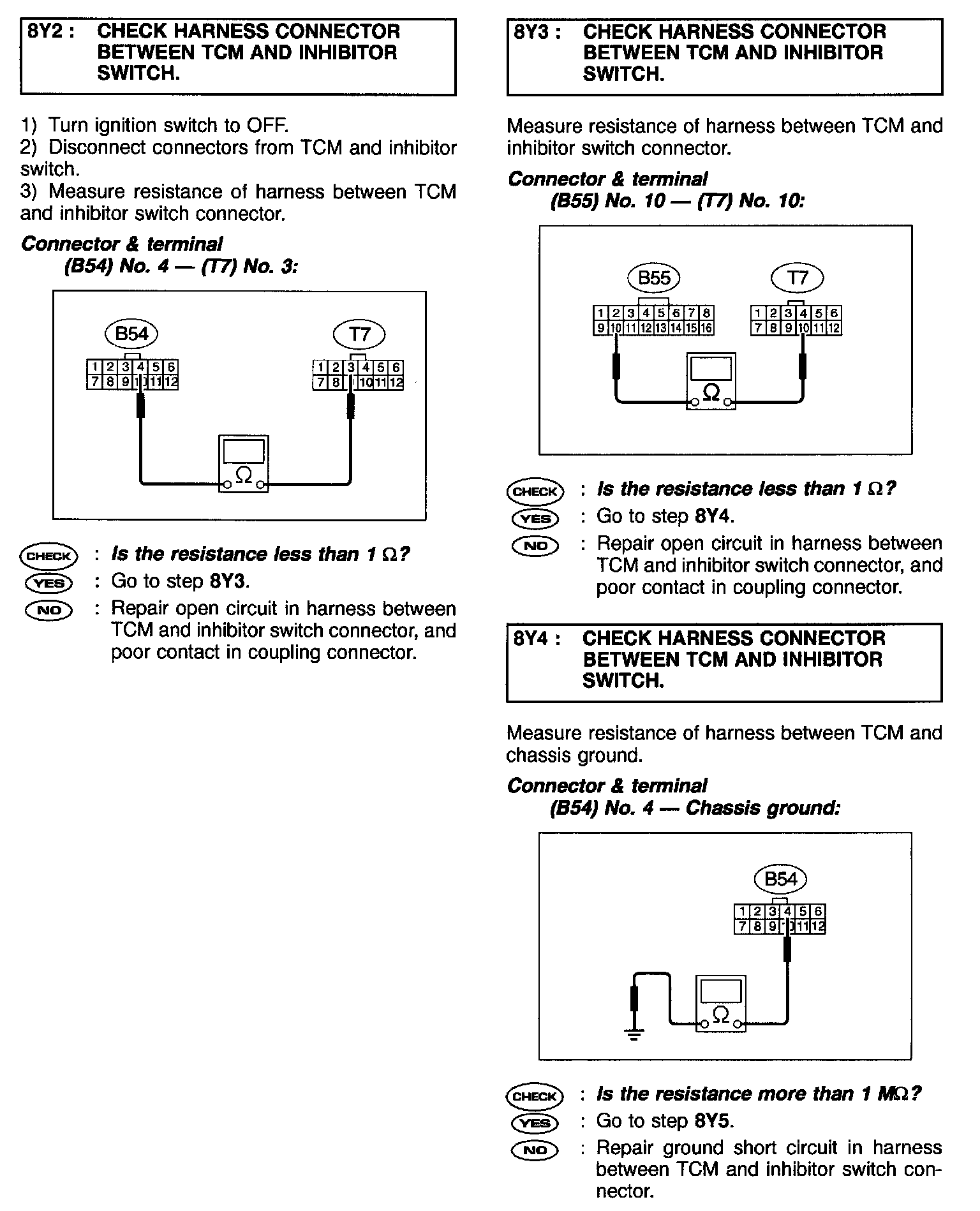

Wiring Diagram:
